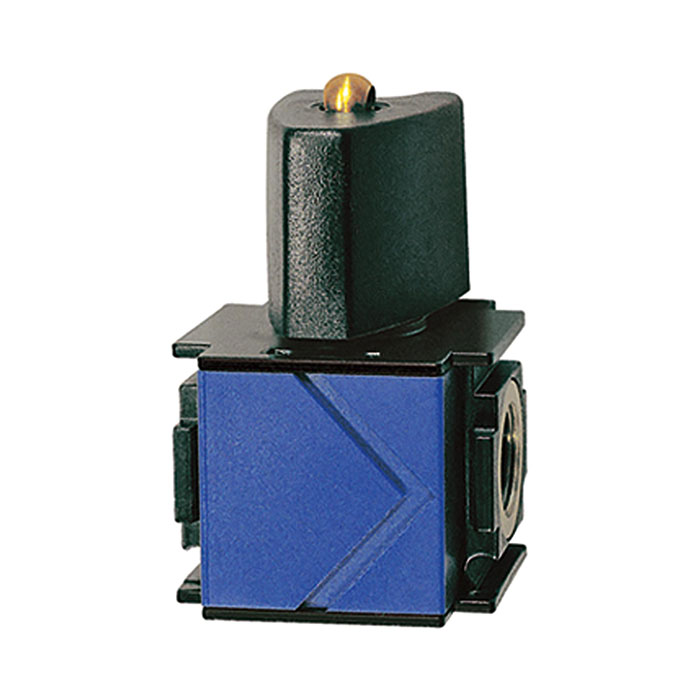

RIEGLER Ball valve 3/2-way »variobloc«, lockable, Size 1, G 1/4
Type number: VK 22
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Ball valve 3/2-way "variobloc" for compressed air preparation, max. 25 bar, G 1/4 - Type VK 22
The RIEGLER ball valve 3/2-way "variobloc", lockable, BG 1, G 1/4 expands maintenance systems modularly with additional functions. Designed for a maximum operating pressure of 25 bar. Connection thread G 1/4 - suitable for common industry standards. The flow rate is 4300 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop ˆ†<sub>p</sub> = 1 bar |
| Series | variobloc |
| Max. operating pressure | 25 bar |
| Ambient temperature max. | 80 °C |
| Thread | G 1/4 |
| Flow rate | 4300 l/min |
| BG | 1 |
| A | 48 mm |
| B | 80 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

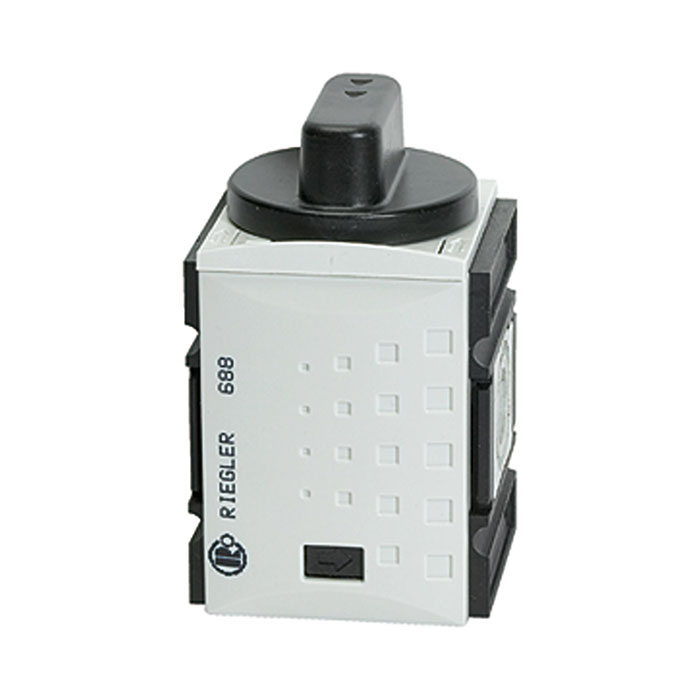

![[100283] RIEGLER Ball valve 3/2-way »FUTURA«, lockable, Size 1, G 1/4](/web/image/product.template/139718/image_128/%5B100283%5D%20RIEGLER%20Ball%20valve%203-2-way%20%C2%BBFUTURA%C2%AB%2C%20lockable%2C%20Size%201%2C%20G%201-4?unique=b513655)
|
Type number: FU 951 |
27.37 € | |

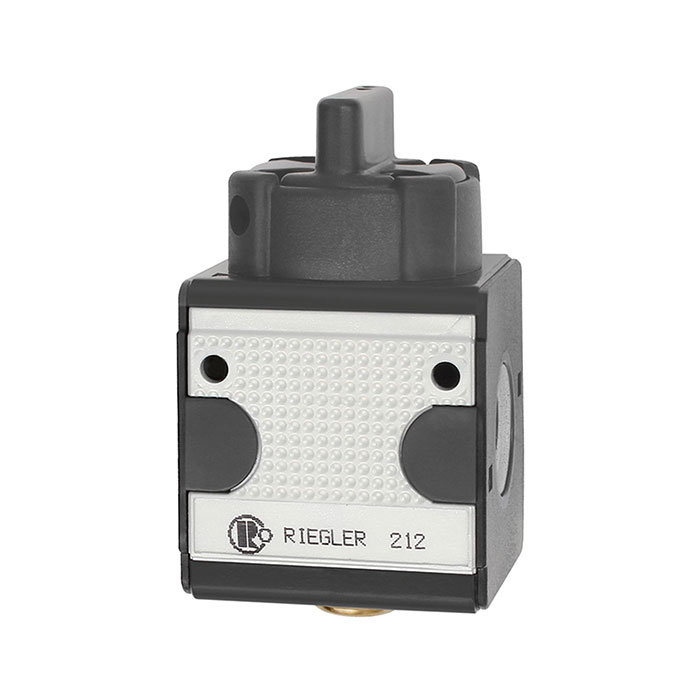

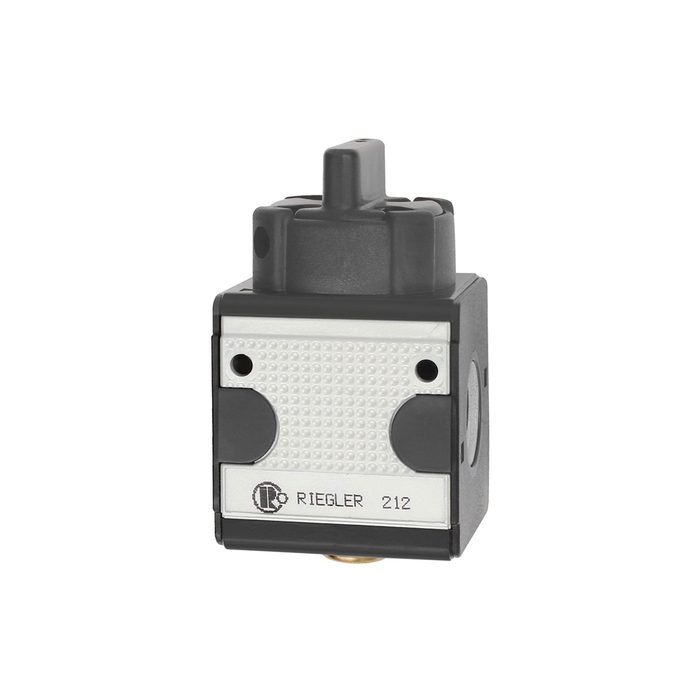

![[100611] RIEGLER Ball valve 3/2-way »multifix«, lockable, Size 1, G 1/4](/web/image/product.template/140046/image_128/%5B100611%5D%20RIEGLER%20Ball%20valve%203-2-way%20%C2%BBmultifix%C2%AB%2C%20lockable%2C%20Size%201%2C%20G%201-4?unique=d8d7800)
|
Type number: K 11 |
31.84 € | |

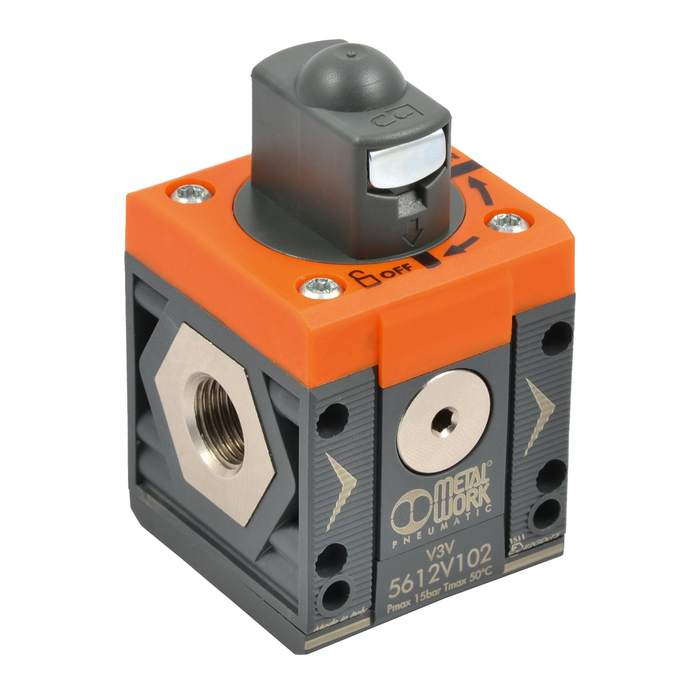

![[144856] RIEGLER Shut-off valve "SYNTESI", manual, BG1, G 1/4, perforation 3.5 mm](/web/image/product.template/279986/image_128/%5B144856%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20manual%2C%20BG1%2C%20G%201-4%2C%20perforation%203.5%20mm?unique=10f0e8a)
|
