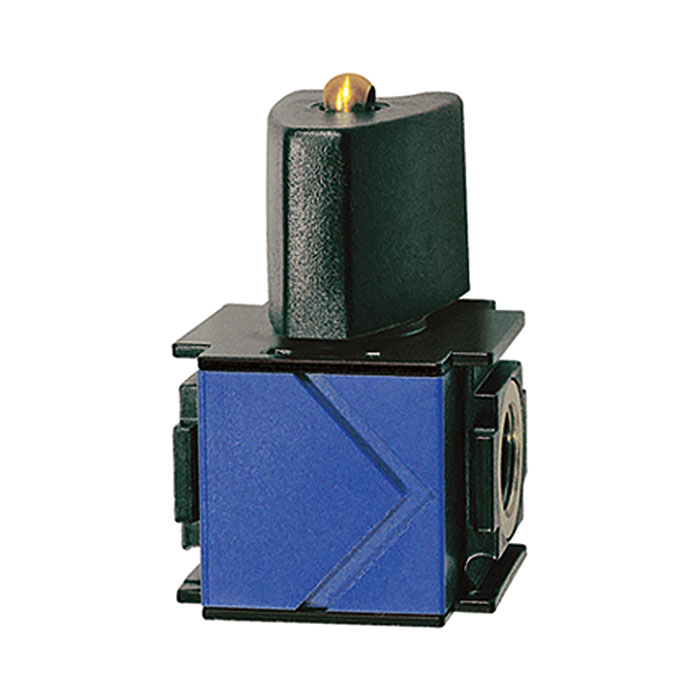

RIEGLER Ball valve 3/2-way »variobloc«, lockable, Size 1, G 3/8
Type number: VK 23
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Ball valve 3/2-way "variobloc", lockable, with vent and silencer, BG 1, G 3/8, operating pressure max. 25 bar
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop ˆ†<sub>p</sub> = 1 bar |
| Series | variobloc |
| Max. operating pressure | 25 bar |
| Ambient temperature max. | 80 °C |
| Thread | G 3/8 |
| Flow rate | 4400 l/min |
| BG | 1 |
| A | 48 mm |
| B | 80 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100727] RIEGLER Ball valve 3/2-way »variobloc«, lockable, Size 1, G 1/4](/web/image/product.template/140163/image_128/%5B100727%5D%20RIEGLER%20Ball%20valve%203-2-way%20%C2%BBvariobloc%C2%AB%2C%20lockable%2C%20Size%201%2C%20G%201-4?unique=2c5d6e1)
|
Type number: VK 22 |
55.64 € | |
![[100731] RIEGLER Ball valve 3/2-way »variobloc«, lockable, Size 2, G 1](/web/image/product.template/140167/image_128/%5B100731%5D%20RIEGLER%20Ball%20valve%203-2-way%20%C2%BBvariobloc%C2%AB%2C%20lockable%2C%20Size%202%2C%20G%201?unique=28758a6)
|
Type number: VK 26 |
102.64 € | |
![[100729] RIEGLER Ball valve 3/2-way »variobloc«, lockable, Size 2, G 1/2](/web/image/product.template/140165/image_128/%5B100729%5D%20RIEGLER%20Ball%20valve%203-2-way%20%C2%BBvariobloc%C2%AB%2C%20lockable%2C%20Size%202%2C%20G%201-2?unique=840864d)
|
Type number: VK 24 |
65.93 € | |
![[100730] RIEGLER Ball valve 3/2-way »variobloc«, lockable, Size 2, G 3/4](/web/image/product.template/140166/image_128/%5B100730%5D%20RIEGLER%20Ball%20valve%203-2-way%20%C2%BBvariobloc%C2%AB%2C%20lockable%2C%20Size%202%2C%20G%203-4?unique=2734174)
|
Type number: VK 25 |
65.93 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100748] RIEGLER Mounting bracket and 2 screws, for »variobloc«, Size 1](/web/image/product.template/140184/image_128/%5B100748%5D%20RIEGLER%20Mounting%20bracket%20and%202%20screws%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201?unique=591e727)
|
Type number: VZ 718 |
9.32 € | |
![[100751] RIEGLER Compact connecting set, for »variobloc«, Size 1, G 3/8](/web/image/product.template/140187/image_128/%5B100751%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%203-8?unique=5c09d09)
|
Type number: VZ 102 |
9.81 € | |
![[100755] RIEGLER Compact connecting set incl. T-holder, »variobloc«, Size 1, G 3/8](/web/image/product.template/140191/image_128/%5B100755%5D%20RIEGLER%20Compact%20connecting%20set%20incl.%20T-holder%2C%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%203-8?unique=cc0bce5)
|
Type number: VZ 202 |
9.23 € | |

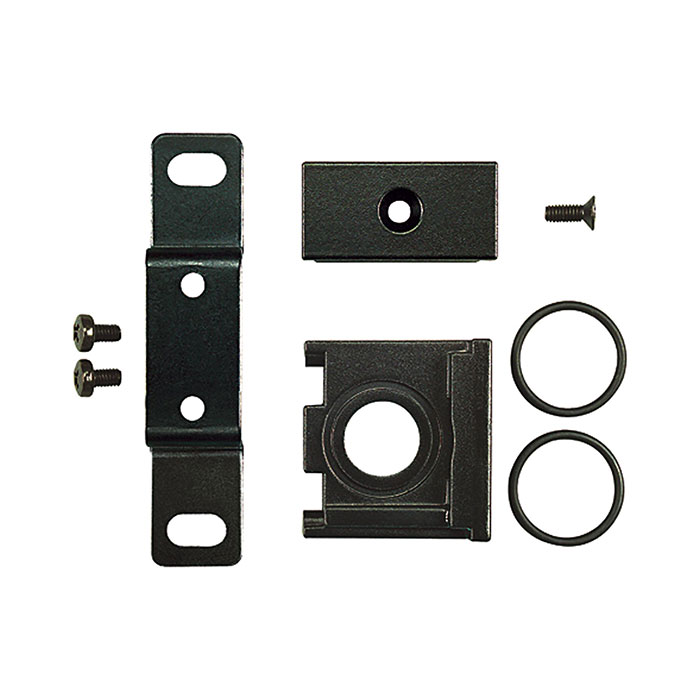

![[100761] RIEGLER Comfort connecting set, for »variobloc«, Size 1, G 3/8](/web/image/product.template/140197/image_128/%5B100761%5D%20RIEGLER%20Comfort%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%203-8?unique=05545ca)
|
Type number: VZ 402 |
27.74 € | |

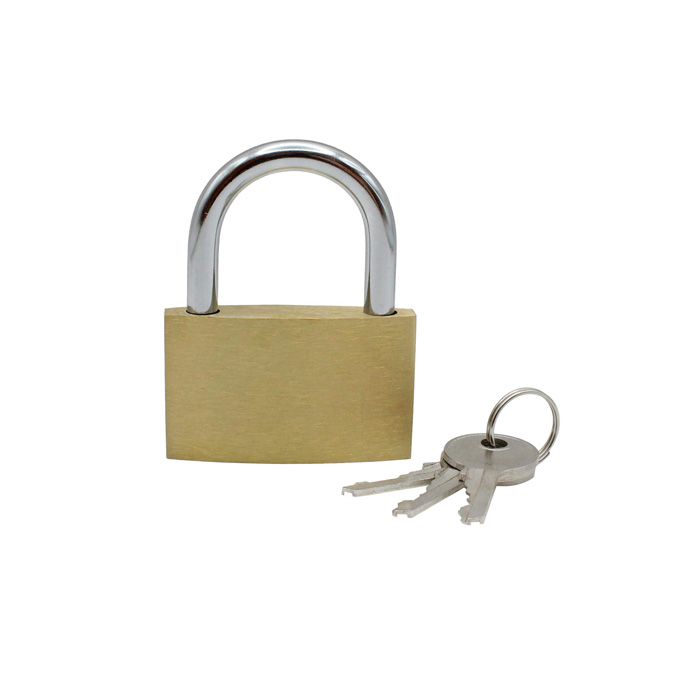

![[125520] RIEGLER Padlock brass 25 mm, shackle Ø 3.5 mm, incl. 3 keys](/web/image/product.template/281048/image_128/%5B125520%5D%20RIEGLER%20Padlock%20brass%2025%20mm%2C%20shackle%20%C3%98%203.5%20mm%2C%20incl.%203%20keys?unique=5b3122f)
|
Type number: VS 36 |
5.84 € | |
