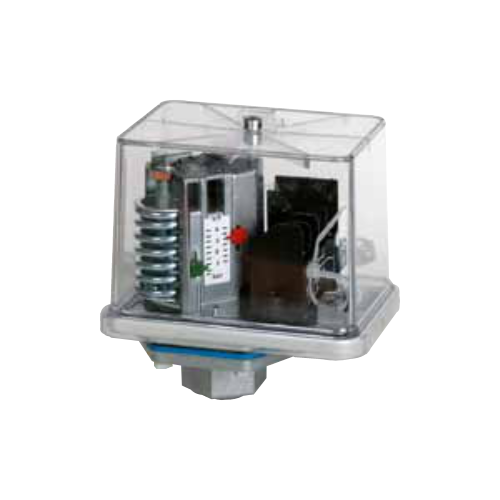

TIVAL Pressure switch FF4-32 DAH 2-32 bar 3/8" silumin
max. operating pressure 52 bar
Upper switching point: adjustable 2 - 32 bar
Lower switching point: adjustable 0.8 - 30 bar
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology.
TIVAL pressure switch FF 4-32 DAH 1010076
max. operating pressure 52 bar
with Perbunan diaphragm
for oil, water and air
pressure connection: H (G 3/8" female thread DIN ISO 228/I), silumin
with easy-to-read scale for simple adjustment
large connection chamber
high repeat accuracy
VDE 0660, IEC 337-1, IEC 553-1
Weitere Informationen siehe unter Technische Daten
For choke, screw connections and hoods, see "Accessories"
| Upper switching point adjustable (bar) | 2 ... 32 |
| Lower switching point adjustable (bar) | 0,8 ... 30 |
| small pressure difference (bar) | 1,2 2 |
| Max. Operating pressure (bar) | 52 |
| Max. Test pressure (bar) | 64 |
| Factory setting (bar) | 10 / 20 |
| Pressure connection | G 3/8" Silumin |
| Model range - Pressure switch | FF 4 / DAH(G) |
Product variants
| Product | Price | ||
|---|---|---|---|
![[1010081] TIVAL Pressure switch FF4-16 DAH 1 - 16 bar 3/8" silumin](/web/image/product.template/149297/image_128/%5B1010081%5D%20TIVAL%20Pressure%20switch%20FF4-16%20DAH%201%20-%2016%20bar%203-8%22%20silumin?unique=25175a0)
|
max. operating pressure 36 bar |
106.72 € | |
![[1010102] TIVAL Pressure switch FF 4-16 DAH-G 1 - 16 bar 3/8" silumin, gold-plated. Contacts](/web/image/product.template/149315/image_128/%5B1010102%5D%20TIVAL%20Pressure%20switch%20FF%204-16%20DAH-G%201%20-%2016%20bar%203-8%22%20silumin%2C%20gold-plated.%20Contacts?unique=83e23a4)
|
max. operating pressure 36 bar |
128.81 € | |
![[1010061] TIVAL Pressure switch FF4-2DAH](/web/image/product.template/149301/image_128/%5B1010061%5D%20TIVAL%20Pressure%20switch%20FF4-2DAH?unique=25175a0)
|
max. operating pressure 20 bar |
95.87 € | |
![[1010109] TIVAL Pressure switch FF 4-2 DAH G 0,11 - 2 bar 3/8" silumin, gold-plated. Contacts](/web/image/product.template/149348/image_128/%5B1010109%5D%20TIVAL%20Pressure%20switch%20FF%204-2%20DAH%20G%200%2C11%20-%202%20bar%203-8%22%20silumin%2C%20gold-plated.%20Contacts?unique=98efe92)
|
max. operating pressure 20 bar |
118.14 € | |
![[1010003] TIVAL Pressure switch FF 4-32 DAH-G 2 - 32 bar 3/8" silumin, gold-plated. Contacts](/web/image/product.template/149351/image_128/%5B1010003%5D%20TIVAL%20Pressure%20switch%20FF%204-32%20DAH-G%202%20-%2032%20bar%203-8%22%20silumin%2C%20gold-plated.%20Contacts?unique=98efe92)
|
max. operating pressure 52 bar |
140.32 € | |
![[1010062] TIVAL Pressure switch FF4-4 DAH 0,22 - 4 bar, 3/8" silumin](/web/image/product.template/149300/image_128/%5B1010062%5D%20TIVAL%20Pressure%20switch%20FF4-4%20DAH%200%2C22%20-%204%20bar%2C%203-8%22%20silumin?unique=25175a0)
|
max. operating pressure 24 bar |
97.39 € | |
![[1010012] TIVAL Pressure switch FF 4-4 DAH G 0,22 - 4 bar 3/8" silumin, gold-plated. Contacts](/web/image/product.template/149349/image_128/%5B1010012%5D%20TIVAL%20Pressure%20switch%20FF%204-4%20DAH%20G%200%2C22%20-%204%20bar%203-8%22%20silumin%2C%20gold-plated.%20Contacts?unique=98efe92)
|
max. operating pressure 24 bar |
119.67 € | |
![[1010078] TIVAL Pressure switch FF4-8 DAH 0,5 - 8 bar 3/8" silumin](/web/image/product.template/149298/image_128/%5B1010078%5D%20TIVAL%20Pressure%20switch%20FF4-8%20DAH%200%2C5%20-%208%20bar%203-8%22%20silumin?unique=d9e6747)
|
max. operating pressure 30 bar |
98.91 € | |
![[1010096] TIVAL Pressure switch FF 4-8 DAH G 0,5 - 8 bar 3/8" silumin, gold-plated. Contacts](/web/image/product.template/149350/image_128/%5B1010096%5D%20TIVAL%20Pressure%20switch%20FF%204-8%20DAH%20G%200%2C5%20-%208%20bar%203-8%22%20silumin%2C%20gold-plated.%20Contacts?unique=98efe92)
|
max. operating pressure 30 bar |
121.19 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[1011001] TIVAL Cover for Pressure switch FF 4](/web/image/product.template/149371/image_128/%5B1011001%5D%20TIVAL%20Cover%20for%20Pressure%20switch%20FF%204?unique=83e23a4)
|
TIVAL hood FF4 |
28.92 € | |
![[1011002] TIVAL Throttle for FF4-2 up to 32 bar](/web/image/product.template/149318/image_128/%5B1011002%5D%20TIVAL%20Throttle%20for%20FF4-2%20up%20to%2032%20bar?unique=98efe92)
|
TIVAL throttle FF4-2....32 |
4.09 € | |
![[1011003] TIVAL Throttle for series FF4-60 up to 250](/web/image/product.template/149367/image_128/%5B1011003%5D%20TIVAL%20Throttle%20for%20series%20FF4-60%20up%20to%20250?unique=98efe92)
|
TIVAL throttle FF4-12....250 |
9.76 € | |
![[1011004] TIVAL Fitting FF 4 490 M 20 13](/web/image/product.template/149369/image_128/%5B1011004%5D%20TIVAL%20Fitting%20FF%204%20490%20M%2020%2013?unique=98efe92)
|
TIVAL screw connection M 20 for protection class IP 65 |
4.76 € | |
![[1011007] TIVAL Nut FF 4 490 M 20](/web/image/product.template/149370/image_128/%5B1011007%5D%20TIVAL%20Nut%20FF%204%20490%20M%2020?unique=98efe92)
|
TIVAL nut M 20 for protection class IP 65 |
2.14 € | |
![[1071004] TIVAL Manometer screw connection H 124 - 114 steel, G 3/8" - G 1/2"](/web/image/product.template/149368/image_128/%5B1071004%5D%20TIVAL%20Manometer%20screw%20connection%20H%20124%20-%20114%20steel%2C%20G%203-8%22%20-%20G%201-2%22?unique=98efe92)
|
TIVAL screw connection H 124-114 |
24.04 € | |
