TIVAL Pressure switch FF 4-2 DAY 0,11 - 2 bar 3/8" polyamide
max. operating pressure 6 bar
Upper switching point: adjustable 0.11 - 2 bar
Lower switching point: adjustable 0.04 - 1.89 bar
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology
FF4-2 DAY pressure switch 0.11 - 2 bar - polyamide, for deionized water | Art. 1010077
The TIVAL Pressure switch with Perbunan diaphragm combines reliability and accuracy for industrial pressure monitoring. The upper switching point is adjustable from 0.11 ... 2, the lower switching point is adjustable from 0.04 ... 1.89. Connection: G 3/8" polyamide - robust design in matching material variant. Application range: demineralized water, oil & air - with proven long-term stability. max. operating pressure: 6 bar, medium temperature: up to +70°C. Standards & approvals: VDE 0660, IEC 337-1, IEC 553-1. All settings are clearly visible via the transparent polycarbonate cover. Chokes and cable glands are available as accessories.
| Upper switching point adjustable (bar) | 0,11 ... 2 |
| Lower switching point adjustable (bar) | 0,04 ... 1,89 |
| small pressure difference (bar) | 0,07 0,11 |
| Max. Operating pressure (bar) | 6 |
| Max. Test pressure (bar) | 12 |
| Factory setting (bar) | 0,5 / 1,5 |
| Pressure connection | G 3/8" polyamide |
| Model range - Pressure switch | FF 4 / DAY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[1030133] TIVAL Pressure switch FF 4-2 AB DAH 0,11 - 2 bar 3/8" zinc](/web/image/product.template/149372/image_128/%5B1030133%5D%20TIVAL%20Pressure%20switch%20FF%204-2%20AB%20DAH%200%2C11%20-%202%20bar%203-8%22%20zinc?unique=aad2b64)
|
max. operating pressure 20 bar |
254.37 € | |
![[1030141] TIVAL Pressure switch FF 4-2 AC DAH 0,11 - bar 3/8" silumin](/web/image/product.template/149375/image_128/%5B1030141%5D%20TIVAL%20Pressure%20switch%20FF%204-2%20AC%20DAH%200%2C11%20-%20bar%203-8%22%20silumin?unique=55a0c75)
|
max. operating pressure 20 bar |
298.93 € | |
![[1010061] TIVAL pressure switch FF 4-2 DAH 0.11 - 2 bar 3/8" Silumin](/web/image/product.template/149301/image_128/%5B1010061%5D%20TIVAL%20pressure%20switch%20FF%204-2%20DAH%200.11%20-%202%20bar%203-8%22%20Silumin?unique=406aa62)
|
max. operating pressure 20 bar |
82.11 € | |
![[1010109] TIVAL Pressure switch FF 4-2 DAH G 0,11 - 2 bar 3/8" silumin, gold-plated. Contacts](/web/image/product.template/149348/image_128/%5B1010109%5D%20TIVAL%20Pressure%20switch%20FF%204-2%20DAH%20G%200%2C11%20-%202%20bar%203-8%22%20silumin%2C%20gold-plated.%20Contacts?unique=70167b6)
|
max. operating pressure 20 bar |
121.95 € | |
![[1010106] TIVAL Pressure switch FF 4-2 DRH 0,11 - 2 bar 3/8" silumin, Handreset max.](/web/image/product.template/149320/image_128/%5B1010106%5D%20TIVAL%20Pressure%20switch%20FF%204-2%20DRH%200%2C11%20-%202%20bar%203-8%22%20silumin%2C%20Handreset%20max.?unique=7588c42)
|
max. operating pressure 20 bar |
123.47 € | |
![[1010122] TIVAL Pressure switch FF 4-2 GL DAH 0.11 - 2 bar 3/8" Silumin](/web/image/product.template/149380/image_128/%5B1010122%5D%20TIVAL%20Pressure%20switch%20FF%204-2%20GL%20DAH%200.11%20-%202%20bar%203-8%22%20Silumin?unique=3133937)
|
max. operating pressure 20 bar |
130.42 € | |

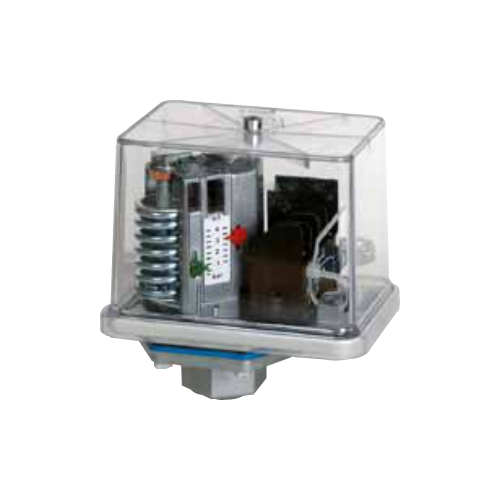

![[1020068] TIVAL Pressure switch FF 4-2 VdS DAI 0,5 - 1 bar](/web/image/product.template/149310/image_128/%5B1020068%5D%20TIVAL%20Pressure%20switch%20FF%204-2%20VdS%20DAI%200%2C5%20-%201%20bar?unique=3e57b55)
|
