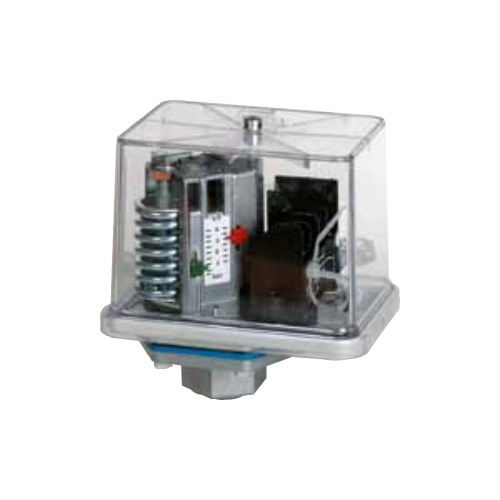

TIVAL Pressure switch FF 4-2 DAH G 0,11 - 2 bar 3/8" silumin, gold-plated. Contacts
max. operating pressure 20 bar
Upper switching point: adjustable 0.11 - 2 bar
Lower switching point: adjustable 0.04 - 1.89 bar
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology.
TIVAL pressure switch FF 4-2 DAH G 1010109
max. operating pressure 20 bar
with Perbunan diaphragm
for oil, water and air
gold-plated contacts
pressure connection: H (G 3/8" female thread DIN ISO 228/I), silumin
with easy-to-read scale for simple adjustment
large connection space
high repeat accuracy
VDE 0660, IEC 337-1, IEC 553-1
Weitere Informationen siehe unter Technische Daten
For choke, screw connections and hoods, see "Accessories"
| Upper switching point adjustable (bar) | 0,11 ... 2 |
| Lower switching point adjustable (bar) | 0,04 ... 1,89 |
| small pressure difference (bar) | 0,07 0,11 |
| Max. Operating pressure (bar) | 20 |
| Max. Test pressure (bar) | 40 |
| Factory setting (bar) | 0,5 / 1,5 |
| Pressure connection | G 3/8" Silumin, gold-plated contacts |
| Model range - Pressure switch | FF 4 / DAH(G) |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[1030133] TIVAL Pressure switch FF 4-2 AB DAH 0,11 - 2 bar 3/8" zinc](/web/image/product.template/149372/image_128/%5B1030133%5D%20TIVAL%20Pressure%20switch%20FF%204-2%20AB%20DAH%200%2C11%20-%202%20bar%203-8%22%20zinc?unique=47d837c)
|
max. operating pressure 20 bar |
246.47 € | |

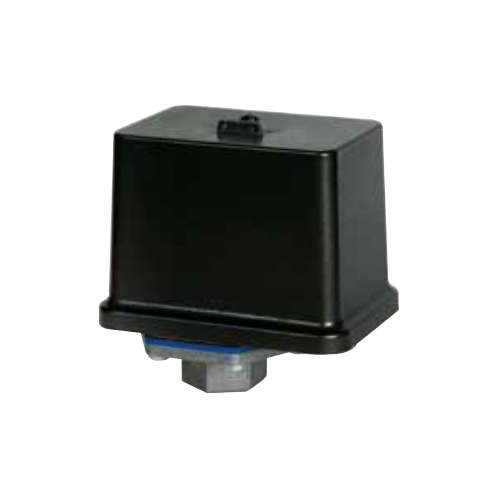

![[1030141] TIVAL Pressure switch FF 4-2 AC DAH 0,11 - bar 3/8" silumin](/web/image/product.template/149375/image_128/%5B1030141%5D%20TIVAL%20Pressure%20switch%20FF%204-2%20AC%20DAH%200%2C11%20-%20bar%203-8%22%20silumin?unique=47d837c)
|
max. operating pressure 20 bar |
289.69 € | |
![[1010061] TIVAL pressure switch FF 4-2 DAH 0.11 - 2 bar 3/8" Silumin](/web/image/product.template/149301/image_128/%5B1010061%5D%20TIVAL%20pressure%20switch%20FF%204-2%20DAH%200.11%20-%202%20bar%203-8%22%20Silumin?unique=0d22381)
|
max. operating pressure 20 bar |
95.87 € | |
![[1010077] TIVAL Pressure switch FF 4-2 DAY 0,11 - 2 bar 3/8" polyamide](/web/image/product.template/149352/image_128/%5B1010077%5D%20TIVAL%20Pressure%20switch%20FF%204-2%20DAY%200%2C11%20-%202%20bar%203-8%22%20polyamide?unique=5c5882e)
|
max. operating pressure 6 bar |
95.87 € | |

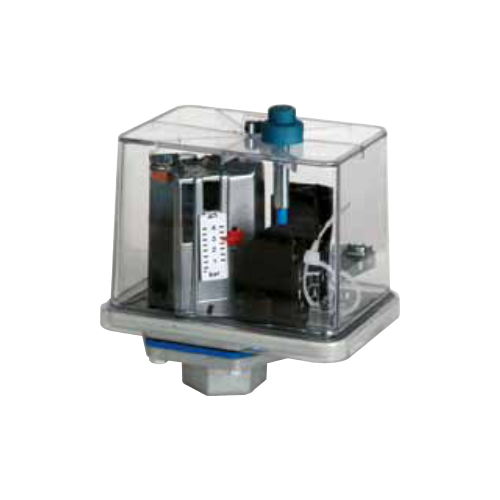

![[1010106] TIVAL Pressure switch FF 4-2 DRH 0,11 - 2 bar 3/8" silumin, Handreset max.](/web/image/product.template/149320/image_128/%5B1010106%5D%20TIVAL%20Pressure%20switch%20FF%204-2%20DRH%200%2C11%20-%202%20bar%203-8%22%20silumin%2C%20Handreset%20max.?unique=073aa6a)
|
max. operating pressure 20 bar |
119.67 € | |

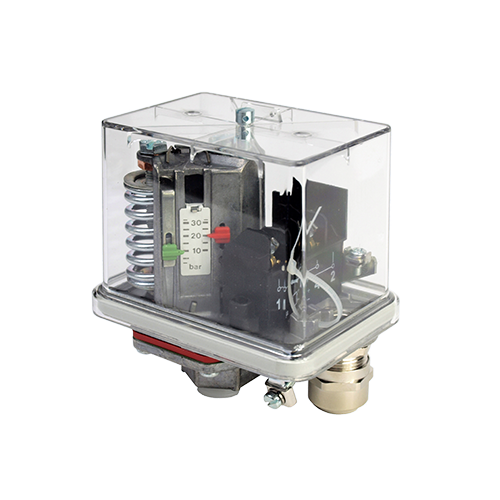

![[1010122] TIVAL Pressure switch FF 4-2 GL DAH 0.11 - 2 bar 3/8" Silumin](/web/image/product.template/149380/image_128/%5B1010122%5D%20TIVAL%20Pressure%20switch%20FF%204-2%20GL%20DAH%200.11%20-%202%20bar%203-8%22%20Silumin?unique=e6c916e)
|
max. operating pressure 20 bar |
126.43 € | |
![[1020068] TIVAL Pressure switch FF 4-2 VdS DAI 0,5 - 1 bar](/web/image/product.template/149310/image_128/%5B1020068%5D%20TIVAL%20Pressure%20switch%20FF%204-2%20VdS%20DAI%200%2C5%20-%201%20bar?unique=c4c3dc4)
|
max. operating pressure 20 bar |
112.53 € | |

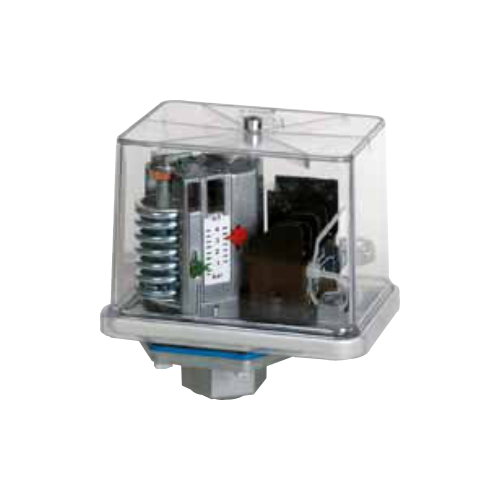

![[1020070] TIVAL Pressure switch FF 4-2 VdS DRI 0,5 - 1 bar Handreset max.](/web/image/product.template/149313/image_128/%5B1020070%5D%20TIVAL%20Pressure%20switch%20FF%204-2%20VdS%20DRI%200%2C5%20-%201%20bar%20Handreset%20max.?unique=c4c3dc4)
|
max. operating pressure 20 bar |
132.61 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[1011001] TIVAL Cover for Pressure switch FF 4](/web/image/product.template/149371/image_128/%5B1011001%5D%20TIVAL%20Cover%20for%20Pressure%20switch%20FF%204?unique=a574896)
|
TIVAL hood FF4 |
28.92 € | |
![[1011002] TIVAL Throttle for FF4-2 up to 32 bar](/web/image/product.template/149318/image_128/%5B1011002%5D%20TIVAL%20Throttle%20for%20FF4-2%20up%20to%2032%20bar?unique=a574896)
|
TIVAL throttle FF4-2....32 |
4.09 € | |
![[1011003] TIVAL Throttle for series FF4-60 up to 250](/web/image/product.template/149367/image_128/%5B1011003%5D%20TIVAL%20Throttle%20for%20series%20FF4-60%20up%20to%20250?unique=a574896)
|
TIVAL throttle FF4-12....250 |
9.76 € | |
![[1011004] TIVAL Fitting FF 4 490 M 20 13](/web/image/product.template/149369/image_128/%5B1011004%5D%20TIVAL%20Fitting%20FF%204%20490%20M%2020%2013?unique=a574896)
|
TIVAL screw connection M 20 for protection class IP 65 |
4.76 € | |
![[1011007] TIVAL Nut FF 4 490 M 20](/web/image/product.template/149370/image_128/%5B1011007%5D%20TIVAL%20Nut%20FF%204%20490%20M%2020?unique=f748b28)
|
TIVAL nut M 20 for protection class IP 65 |
2.14 € | |
![[1071004] TIVAL Manometer screw connection H 124 - 114 steel, G 3/8" - G 1/2"](/web/image/product.template/149368/image_128/%5B1071004%5D%20TIVAL%20Manometer%20screw%20connection%20H%20124%20-%20114%20steel%2C%20G%203-8%22%20-%20G%201-2%22?unique=a574896)
|
TIVAL screw connection H 124-114 |
24.04 € | |
