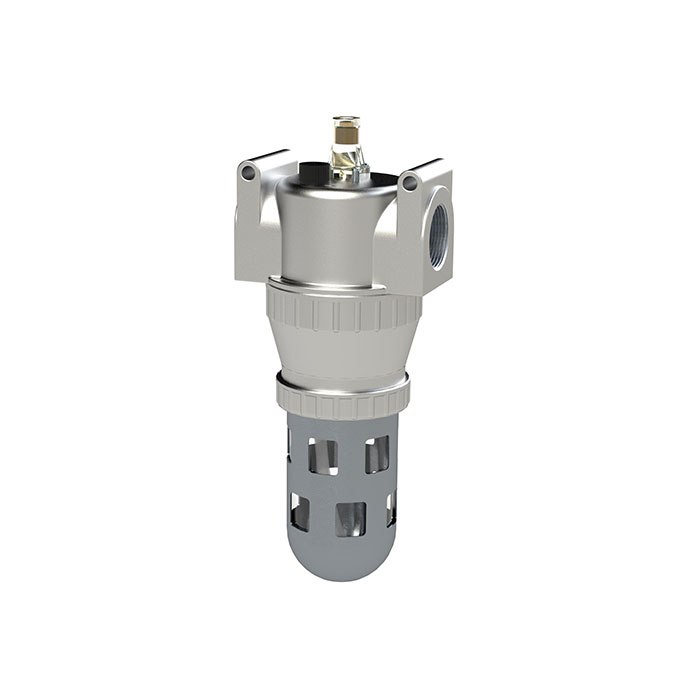

RIEGLER Mist oiler »Standard«, PC container, Prot. cage, Size 4, G 1 1/4
Type number: 763 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Mist lubricator "Standard" with polycarbonate tank and protective cage, BG 4, G 1 1/4, PE max. 16 bar, ambient medium temp. max. 60 °C
| Inlet pressure max. | 16 bar |
| Housing | Die-cast zinc, painted silver |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Polycarbonate container with protective cage |
| Dropper attachment | PA |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1 1/4 |
| Flow rate | 9000 l/min |
| DN | 40 |
| BG | 4 |
| A | 137 mm |
| C | 70 mm |
| D | 232 mm |
| Class name | EASY |
