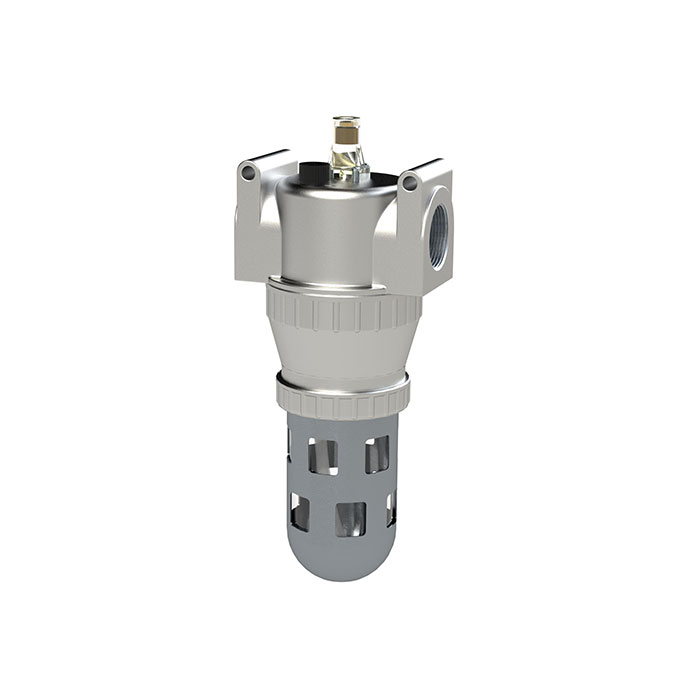

RIEGLER Mist oiler »Standard«, PC container, Prot. cage, Size 4, G 1 1/2
Type number: 764 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Fog oiler "Standard" with PC container and protective basket made of die-cast zinc, painted silver - Type 764 S
The RIEGLER mist lubricator "Standard" with PC container and protective cage, BG 4, G 1 1/2 doses precise quantities of oil into the compressed air flow and automatically lubricates pneumatic consumers. The housing is made of die-cast zinc, painted silver with NBR seals. The maximum inlet pressure is 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1 1/2 - suitable for common industry standards. The flow rate is 9000 l/min (at P2 = 6 bar and pressure drop Δp = 1 bar). Polycarbonate tank with protective cage. Automatic lubrication extends the service life of moving parts.
Field of application
Typical areas of application: Lubrication of pneumatic cylinders, valves and pneumatic tools.
| Inlet pressure max. | 16 bar |
| Housing | Die-cast zinc, painted silver |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Polycarbonate container with protective cage |
| Dropper attachment | PA |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1 1/2 |
| Flow rate | 9000 l/min |
| DN | 45 |
| BG | 4 |
| A | 125 mm |
| C | 70 mm |
| D | 232 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101022] RIEGLER Mist oiler »Standard«, PC container, Prot. cage, Size 1, G 1/4](/web/image/product.template/140458/image_128/%5B101022%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Prot.%20cage%2C%20Size%201%2C%20G%201-4?unique=bc3dae7)
|
Type number: 745 S |
39.04 € | |
![[101023] RIEGLER Mist oiler »Standard«, PC container, Prot. cage, Size 1, G 3/8](/web/image/product.template/140459/image_128/%5B101023%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Prot.%20cage%2C%20Size%201%2C%20G%203-8?unique=7bf2c56)
|
Type number: 748 S |
39.04 € | |
![[101024] RIEGLER Mist oiler »Standard«, PC container, Prot. cage, Size 2, G 3/8](/web/image/product.template/140460/image_128/%5B101024%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Prot.%20cage%2C%20Size%202%2C%20G%203-8?unique=7ce455b)
|
Type number: 750 S |
63.46 € | |
![[101027] RIEGLER Mist oiler »Standard«, PC container, Prot. cage, Size 3, G 1](/web/image/product.template/140463/image_128/%5B101027%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Prot.%20cage%2C%20Size%203%2C%20G%201?unique=e66703c)
|
Type number: 762 S |
104.68 € | |

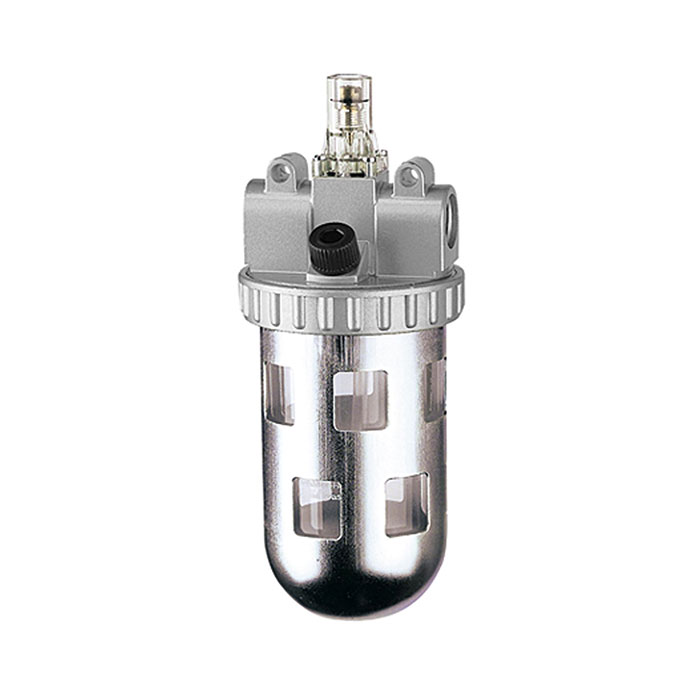

![[101025] RIEGLER Mist oiler »Standard«, PC container, Prot. cage, Size 3, G 1/2](/web/image/product.template/140461/image_128/%5B101025%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Prot.%20cage%2C%20Size%203%2C%20G%201-2?unique=713b675)
|
Type number: 760 S |
63.46 € | |
![[101026] RIEGLER Mist oiler »Standard«, PC container, Prot. cage, Size 3, G 3/4](/web/image/product.template/140462/image_128/%5B101026%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Prot.%20cage%2C%20Size%203%2C%20G%203-4?unique=58a651d)
|
Type number: 761 S |
104.68 € | |
![[101028] RIEGLER Mist oiler »Standard«, PC container, Prot. cage, Size 4, G 1 1/4](/web/image/product.template/140464/image_128/%5B101028%5D%20RIEGLER%20Mist%20oiler%20%C2%BBStandard%C2%AB%2C%20PC%20container%2C%20Prot.%20cage%2C%20Size%204%2C%20G%201%201-4?unique=b40e236)
|
Type number: 763 S |
191.65 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=36a168c)
|
Type number: 32 |
34.09 € | |
![[101043] RIEGLER Metal container, incl. O-ring, for mist oiler »Standard«, Size 3](/web/image/product.template/140479/image_128/%5B101043%5D%20RIEGLER%20Metal%20container%2C%20incl.%20O-ring%2C%20for%20mist%20oiler%20%C2%BBStandard%C2%AB%2C%20Size%203?unique=e96f6f5)
|
Type number: 740/14 |
23.98 € | |

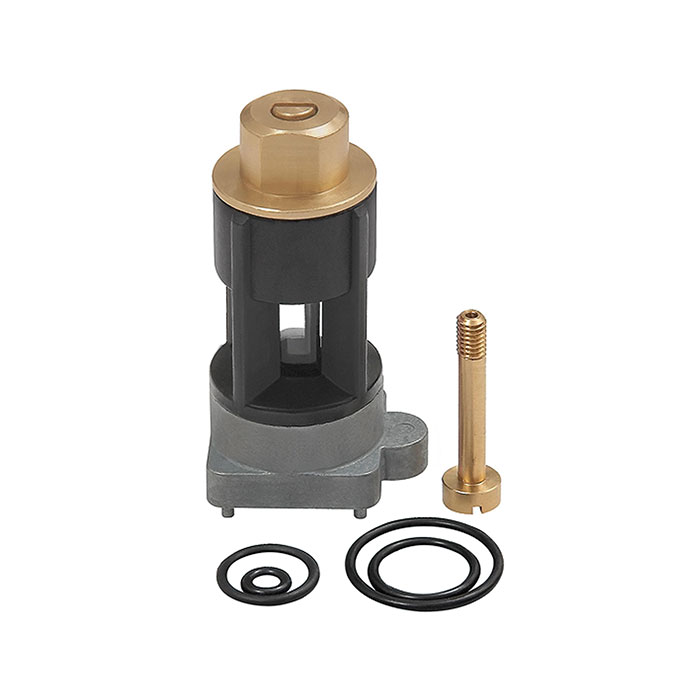

![[101045] RIEGLER Drip cap metal](/web/image/product.template/140481/image_128/%5B101045%5D%20RIEGLER%20Drip%20cap%20metal?unique=cc0863f)
|
