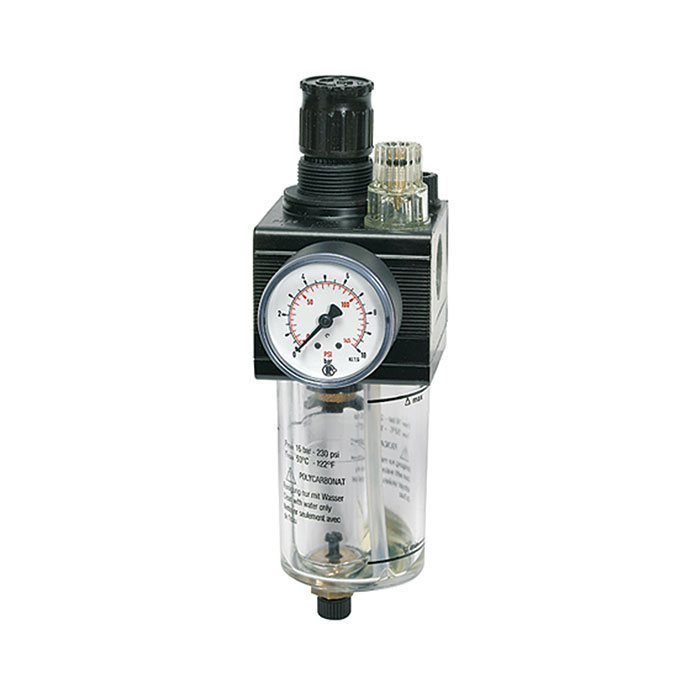

RIEGLER Combi-service unit with PC container, Size 2, G 3/4, 0.5 - 16 bar
Type number: 811.14 K
EAN: 4047322119948
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Combination maintenance unit with polycarbonate tank and manual drain valve, BG 2, G 3/4, PE max. 16 bar, control range 0.5 - 16 bar
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Container | Polycarbonate container |
| Filter fineness | 40 µm |
| Dropper attachment | PA |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 50 °C |
| Ambient temperature min. | 0 °C |
| Ambient temperature max. | 50 °C |
| Spring cover | PA |
| Thread | G 3/4 |
| Flow rate | 3700 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 16 bar |
| Condensate drain | Manual drain valve |
| BG | 2 |
| A | 97 mm |
| B | 296.5 mm |
| C | 96.5 mm |
| Class name | PLUS |
