RIEGLER Stainless steel filter, 1.4404, 50 µm, G 1/4
Type number: 572.14
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Stainless steel filter made of stainless steel 1.4404 (AISI 316L), for compressed air treatment, G 1/4 - Type 572.14
The RIEGLER stainless steel filter, 1.4404, 50 µm, G 1/4 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of stainless steel 1.4404 (AISI 316L) with FKM seals. The maximum inlet pressure is 50 bar. The permissible medium temperature is between -20 °C and 80 °C. Connection thread G 1/4 - suitable for common industry standards. The flow rate is 900 l/min (at P1 = 7 bar and pressure drop Δp ≤ 0.33 bar). Filter fineness 50 µm. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 50 bar |
| Housing | Stainless steel 1.4404 (AISI 316L) |
| Sealing material | FKM |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> ‰¤ 0.33 bar |
| Filter fineness | 50 µm |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 80 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 80 °C |
| Thread | G 1/4 |
| Flow rate | 900 l/min |
| Condensate drain | Screw plug |
| A | 64 mm |
| B | 140 mm |
| C | 125 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

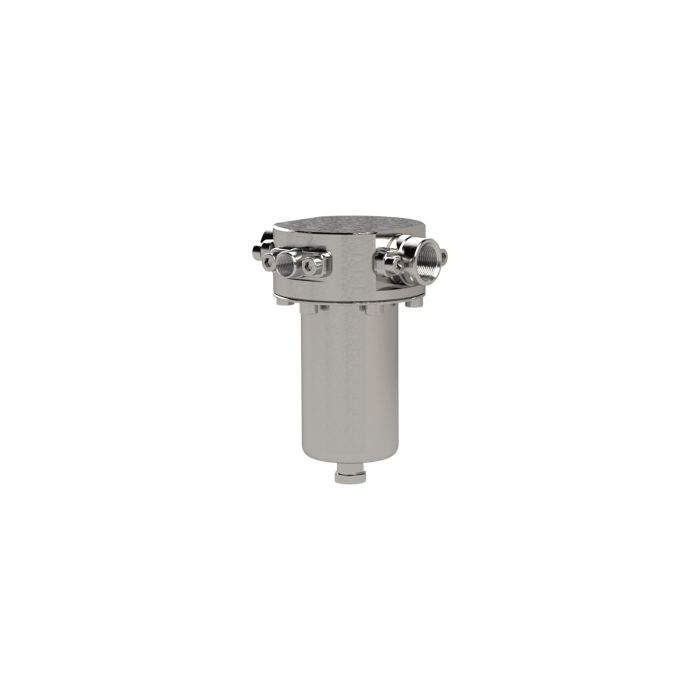

![[129670] RIEGLER Stainless steel filter, 1.4404, 50 µm, G 1/2](/web/image/product.template/268066/image_128/%5B129670%5D%20RIEGLER%20Stainless%20steel%20filter%2C%201.4404%2C%2050%20%C2%B5m%2C%20G%201-2?unique=f76cb59)
|
Type number: FES.G1250 |
443.79 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

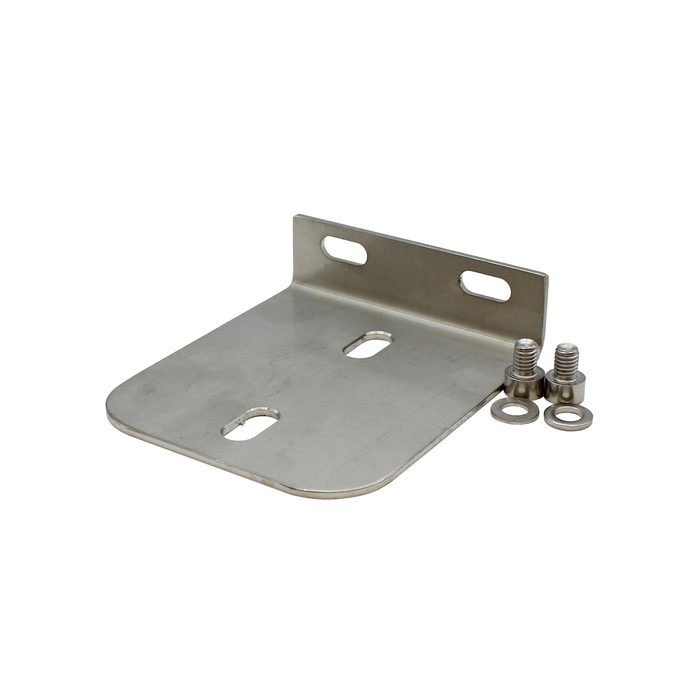

![[101215] RIEGLER Mounting bracket 1.4401 for stainless steel filter, 1.4404, G 1/4](/web/image/product.template/140651/image_128/%5B101215%5D%20RIEGLER%20Mounting%20bracket%201.4401%20for%20stainless%20steel%20filter%2C%201.4404%2C%20G%201-4?unique=4b73bc6)
|
Type number: 576/5 |
29.61 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

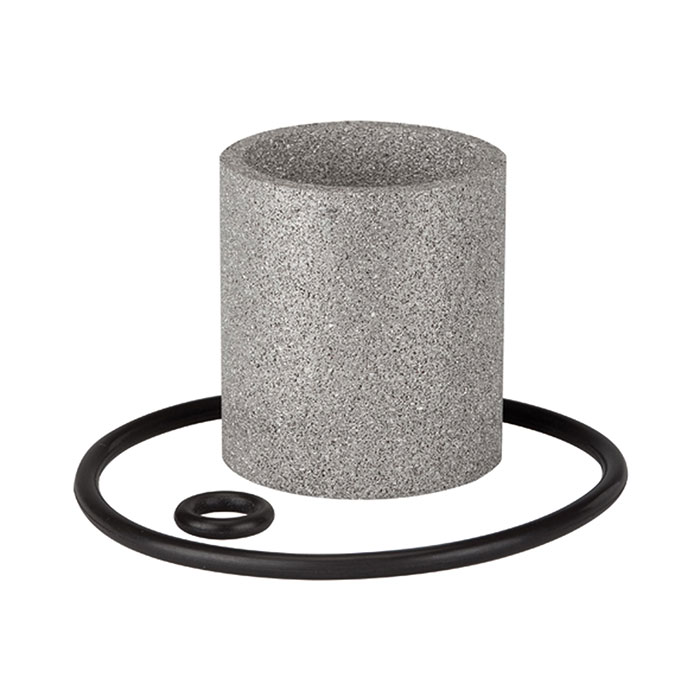

![[101213] RIEGLER Wear part set, for stainless steel filter, 1.4404, G 1/4](/web/image/product.template/140649/image_128/%5B101213%5D%20RIEGLER%20Wear%20part%20set%2C%20for%20stainless%20steel%20filter%2C%201.4404%2C%20G%201-4?unique=9d3f9a0)
|
Type number: 22.5724.4 |
133.70 € | |
