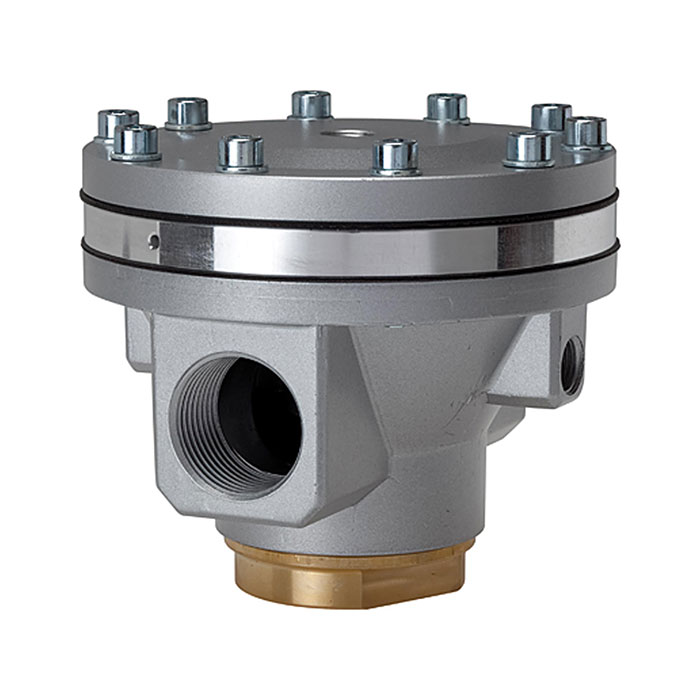

RIEGLER Pressure regulator pneumatic remote controlled »Standard«, G 1/2
Type number: 637.301
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pneumatic remote-controlled pressure regulator "Standard" made of die-cast zinc - Type 637.301
The RIEGLER pneumatic remote-controlled pressure regulator "Standard", G 1/2 reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of die-cast zinc with NBR seals. The maximum inlet pressure is 25 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1/2 - suitable for common industry standards. The flow rate is 5800 l/min (at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 25 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 8 bar, P<sub>2</sub> = 6 bar and pressure drop ˆ†<sub>p</sub> = 1 bar |
| Series | Standard |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Connection for pneumat. Remote control | G 1/4 |
| Thread | G 1/2 |
| Flow rate | 5800 l/min |

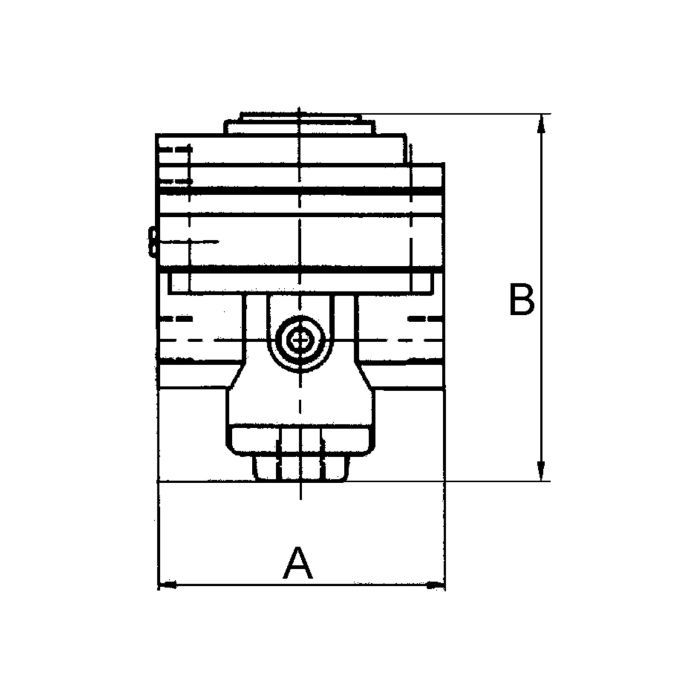

| A | 82 mm |
| B | 74 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6b, 6b-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101254] RIEGLER Pressure regulator pneumatic remote controlled »Standard«, G 1](/web/image/product.template/140689/image_128/%5B101254%5D%20RIEGLER%20Pressure%20regulator%20pneumatic%20remote%20controlled%20%C2%BBStandard%C2%AB%2C%20G%201?unique=e245dd1)
|
Type number: 637.303 |
200.27 € | |
![[101256] RIEGLER Pressure regulator pneumatic remote controlled »Standard« G 1 1/2](/web/image/product.template/140691/image_128/%5B101256%5D%20RIEGLER%20Pressure%20regulator%20pneumatic%20remote%20controlled%20%C2%BBStandard%C2%AB%20G%201%201-2?unique=a37065d)
|
Type number: 637.305 |
309.01 € | |
![[101255] RIEGLER Pressure regulator pneumatic remote controlled »Standard« G 1 1/4](/web/image/product.template/140690/image_128/%5B101255%5D%20RIEGLER%20Pressure%20regulator%20pneumatic%20remote%20controlled%20%C2%BBStandard%C2%AB%20G%201%201-4?unique=28ef516)
|
Type number: 637.304 |
337.53 € | |
![[101257] RIEGLER Pressure regulator pneumatic remote controlled »Standard«, G 2](/web/image/product.template/140692/image_128/%5B101257%5D%20RIEGLER%20Pressure%20regulator%20pneumatic%20remote%20controlled%20%C2%BBStandard%C2%AB%2C%20G%202?unique=f166024)
|
Type number: 637.306 |
675.30 € | |
![[101253] RIEGLER Pressure regulator pneumatic remote controlled »Standard«, G 3/4](/web/image/product.template/140688/image_128/%5B101253%5D%20RIEGLER%20Pressure%20regulator%20pneumatic%20remote%20controlled%20%C2%BBStandard%C2%AB%2C%20G%203-4?unique=61cacfe)
|
Type number: 637.302 |
210.02 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

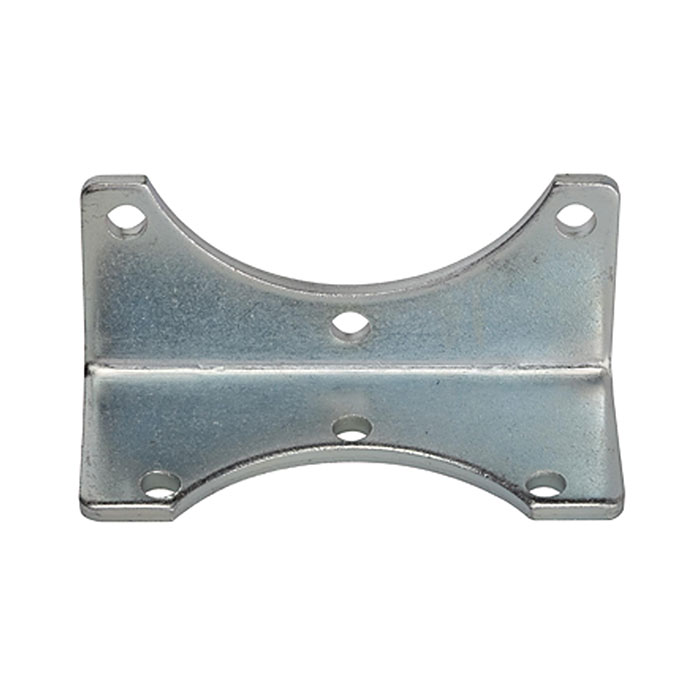

![[101233] RIEGLER Mounting set, mounting bracket, for »Standard«, Size 3, to G 1](/web/image/product.template/140668/image_128/%5B101233%5D%20RIEGLER%20Mounting%20set%2C%20mounting%20bracket%2C%20for%20%C2%BBStandard%C2%AB%2C%20Size%203%2C%20to%20G%201?unique=7eb6fe9)
|
Type number: H 84 |
7.03 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

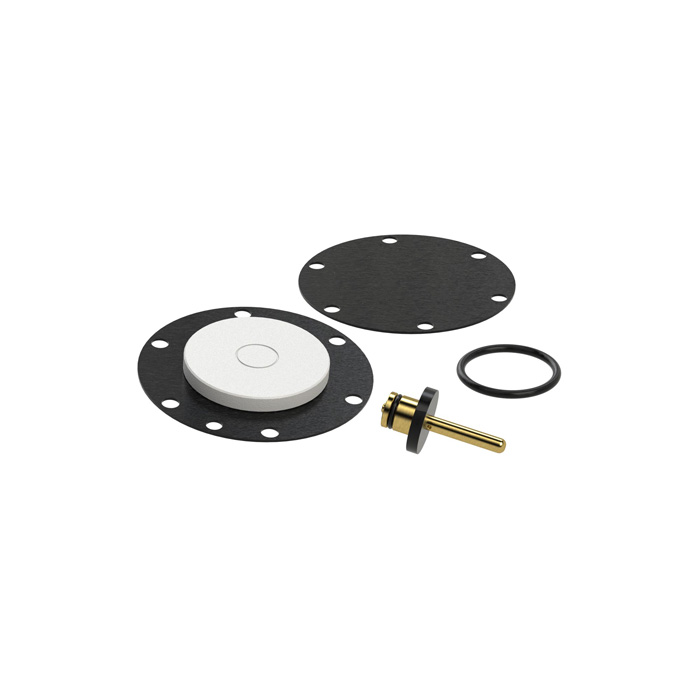

![[180147] RIEGLER Wear parts kit, f. Pneumatic remote pressure regulator "Standard"](/web/image/product.template/276013/image_128/%5B180147%5D%20RIEGLER%20Wear%20parts%20kit%2C%20f.%20Pneumatic%20remote%20pressure%20regulator%20%22Standard%22?unique=c831e54)
|
