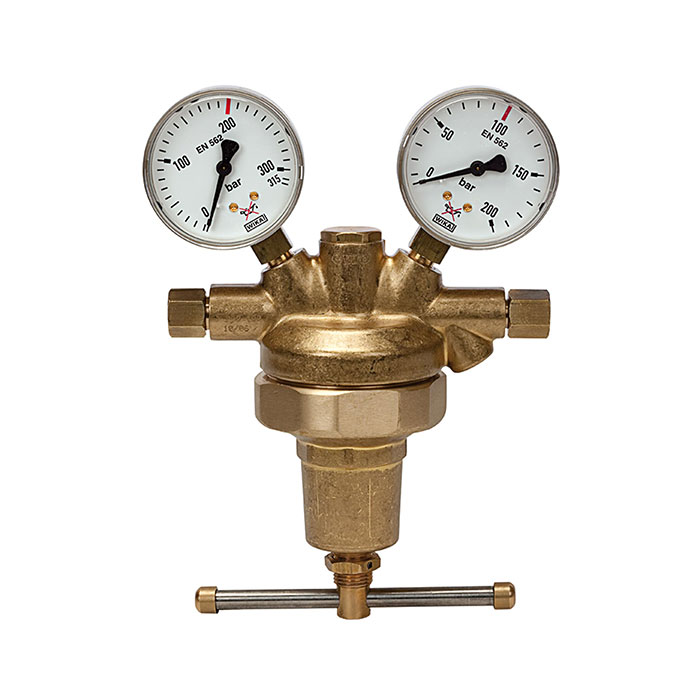

RIEGLER Line pressure regulator 200 bar, G 1/4 i., 1 - 50 bar
Type number: 639.11
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Line pressure regulator 200 bar made of brass, for compressed air preparation, 1 bar - Type 639.11
The RIEGLER line pressure regulator 200 bar, incl. Mano, G 1/4 IG, 1 - 50 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of brass with NBR seals. Designed for a maximum operating pressure of 200 bar. The control range extends from 1 bar to 50 bar. The operating temperature is between -10 °C and 90 °C. Connection thread G 1/4 IG - suitable for common industry standards. The flow rate is 2500 l/min. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Housing | Brass |
| Sealing material | NBR |
| Max. operating pressure | 200 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 90 °C |
| Thread | G 1/4 FEMALE THREAD |
| Flow rate | 2500 l/min |
| Control range min. | 1 bar |
| Control range max. | 50 bar |
| A | 162 mm |
| B | 188.5 mm |
| C | 100 mm |
| D | 76 mm |
| E | 50 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| Setting | Handwheel |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

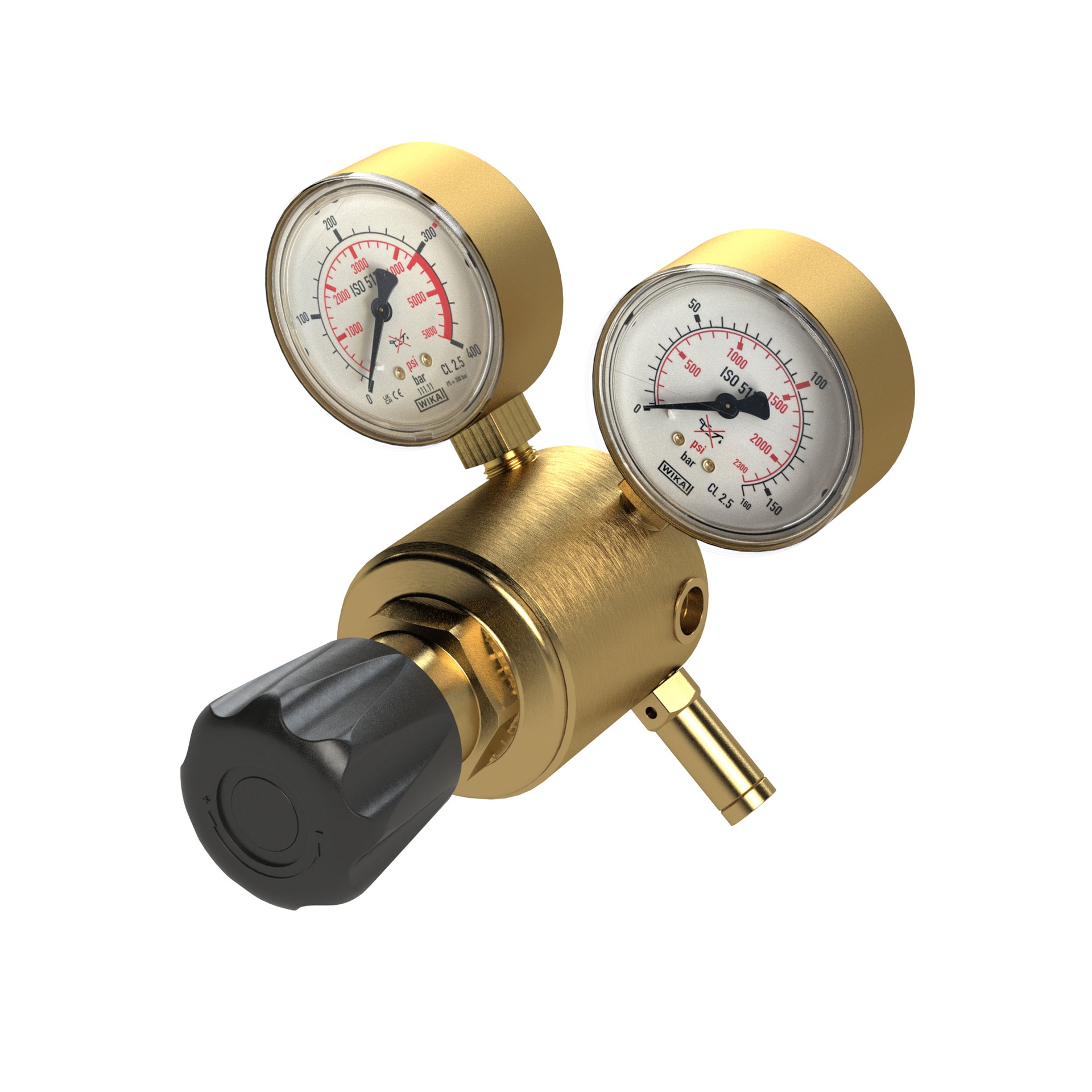

![[148147] RIEGLER line pressure regulator 300 bar, incl. Mano, G 1/4 IG, 1 - 60 bar](/web/image/product.template/284454/image_128/%5B148147%5D%20RIEGLER%20line%20pressure%20regulator%20300%20bar%2C%20incl.%20Mano%2C%20G%201-4%20IG%2C%201%20-%2060%20bar?unique=efb8cca)
|
