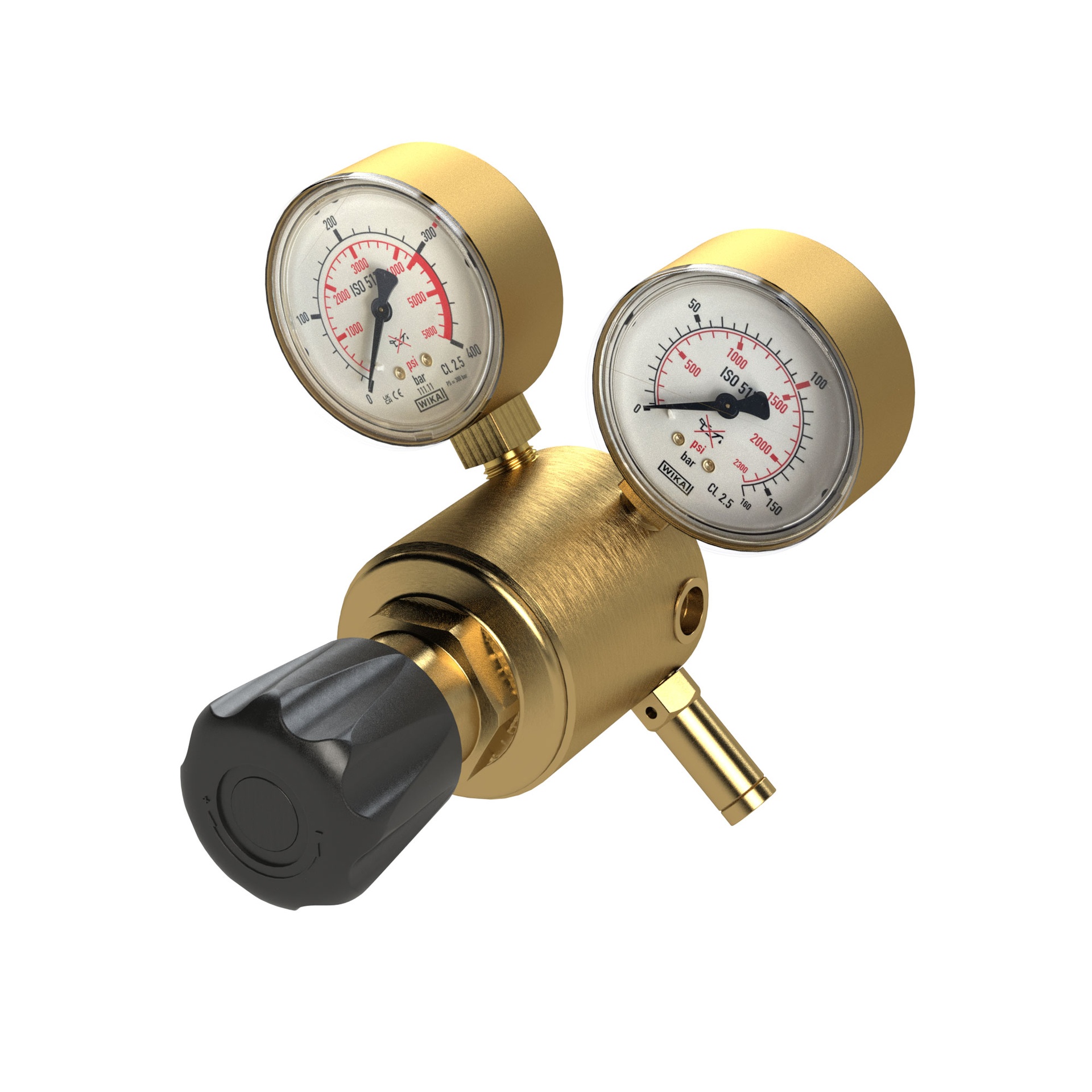

RIEGLER line pressure regulator 300 bar, incl. Mano, G 1/4 IG, 1 - 60 bar
Typennummer: DRL.G14.1-60
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Line pressure regulator 300 bar made of brass, for compressed air preparation, 1 bar - Type DRL.G14.1-60
The RIEGLER line pressure regulator 300 bar, incl. Mano, G 1/4 IG, 1 - 60 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of brass with NBR seals. Designed for a maximum operating pressure of 300 bar. The control range extends from 1 bar to 60 bar. The operating temperature is between -20 °C and 60 °C. Connection thread G 1/4 IG - suitable for common industry standards. The flow rate is 3300 l/min at 60 bar. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Flow 1 | 3300 l/min |
| Flow rate | 3300 l/min at 60 bar |
| Control range max. | 60 bar |
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| Operating temperature min. | -20 °C |
| Control range min. | 1 bar |
| B | 146 mm |
| A | 148 mm |
| Max. operating pressure | 300 bar |
| Operating temperature max. | 60 °C |
| D | 69 mm |
| CAS No. SVHC 1 | 7439-92-1 |
| Class name | FLEX |
| Thread | G 1/4 FEMALE THREAD |
| Housing | Brass |
| Sealing material | NBR |
