RIEGLER Pressure regulator for potable water, without DVGW, R 1 1/2
Type number: 100.115
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pressure regulator for drinking water made of gunmetal (Rg5), 1.5 bar - Type 100.115
The RIEGLER pressure regulator for drinking water, without DVGW, R 1 1/2, 1.5 - 12 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of gunmetal (Rg5) with NBR-SBR seals. The control range extends from 1.5 bar to 12 bar with a maximum inlet pressure of 25 bar. The operating temperature is between -15 °C and 100 °C. Connection thread R 1 1/2 - suitable for common industry standards. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 25 bar |
| Housing | Gunmetal (Rg5) |
| Sealing material | NBR-SBR |
| Spring cover | Gray cast iron |
| Interior parts | Plastic, brass, stainless steel |
| Minimum pressure drop | 1 bar |
| Operating temperature min. | -15 °C |
| Operating temperature max. | 100 °C |
| Thread | R 1 1/2 |
| Control range min. | 1.5 bar |
| Control range max. | 12 bar |
| Flow rate kvs-value | 12 m³/h |
| DN | 40 |
| A | 210 mm |
| B | 379 mm |
| C | 320 mm |
| D | 59 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Form min. | 2.5 bar |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

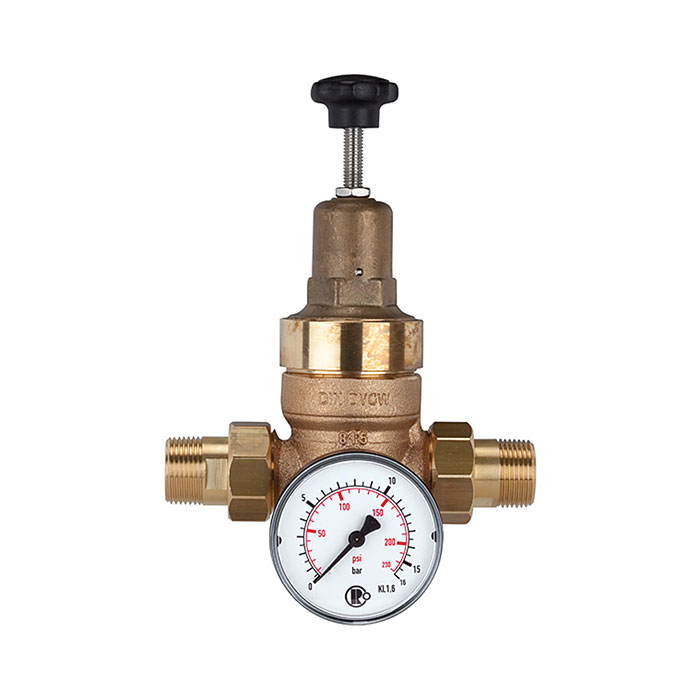

![[101329] RIEGLER Pressure regulator for potable water, without DVGW, R 1](/web/image/product.template/169303/image_128/%5B101329%5D%20RIEGLER%20Pressure%20regulator%20for%20potable%20water%2C%20without%20DVGW%2C%20R%201?unique=5e5d312)
|
Type number: 100.113 |
170.09 € | |
![[101330] RIEGLER Pressure regulator for potable water, without DVGW, R 1 1/4](/web/image/product.template/169304/image_128/%5B101330%5D%20RIEGLER%20Pressure%20regulator%20for%20potable%20water%2C%20without%20DVGW%2C%20R%201%201-4?unique=e963c50)
|
Type number: 100.114 |
253.89 € | |
![[101327] RIEGLER Pressure regulator for potable water, without DVGW, R 1/2](/web/image/product.template/169301/image_128/%5B101327%5D%20RIEGLER%20Pressure%20regulator%20for%20potable%20water%2C%20without%20DVGW%2C%20R%201-2?unique=1442237)
|
Type number: 100.111 |
147.10 € | |

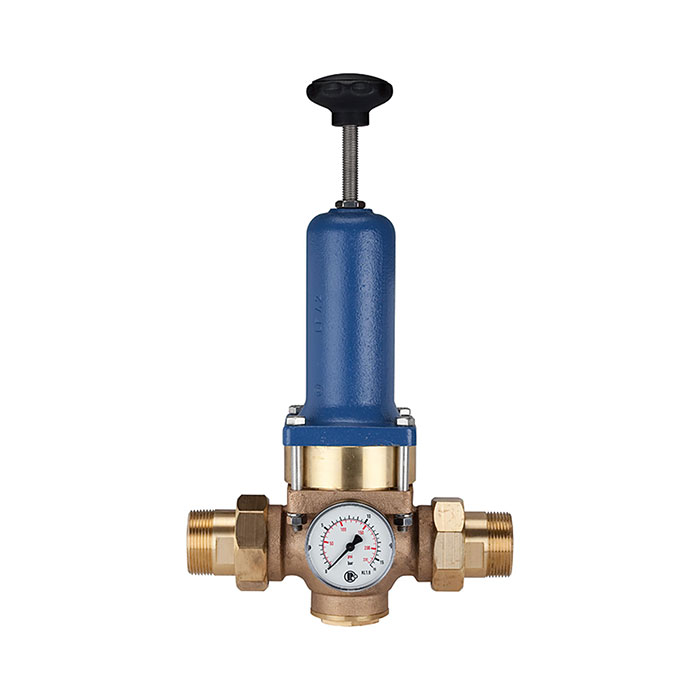

![[101332] RIEGLER Pressure regulator for potable water, without DVGW, R 2](/web/image/product.template/169306/image_128/%5B101332%5D%20RIEGLER%20Pressure%20regulator%20for%20potable%20water%2C%20without%20DVGW%2C%20R%202?unique=f7bbc48)
|
Type number: 100.116 |
531.25 € | |
![[101328] RIEGLER Pressure regulator for potable water, without DVGW, R 3/4](/web/image/product.template/169302/image_128/%5B101328%5D%20RIEGLER%20Pressure%20regulator%20for%20potable%20water%2C%20without%20DVGW%2C%20R%203-4?unique=b6e1c9b)
|
Type number: 100.112 |
156.64 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101398] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar/230 psi](/web/image/product.template/169372/image_128/%5B101398%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar-230%20psi?unique=dca9df3)
|
Type number: 218-KD |
6.25 € | |

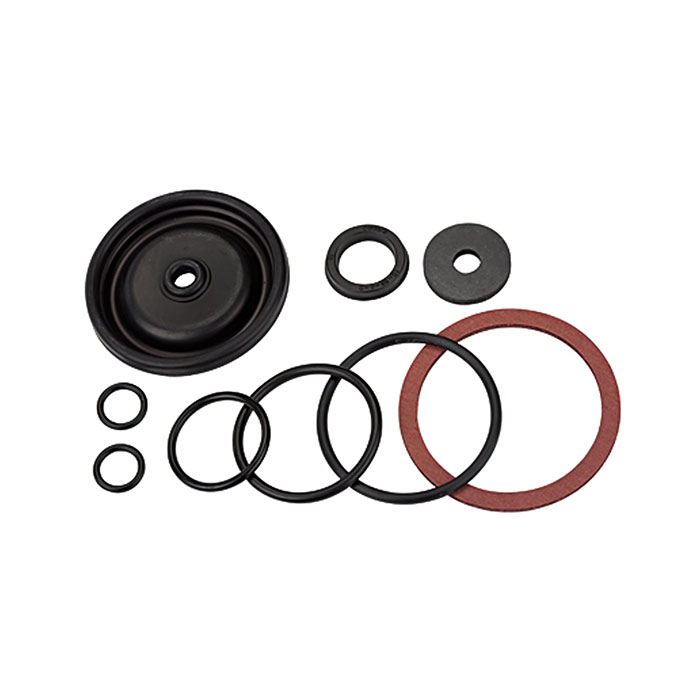

![[101341] RIEGLER Seal set for press. regulator potable water without DVGW, R 1 1/2](/web/image/product.template/169315/image_128/%5B101341%5D%20RIEGLER%20Seal%20set%20for%20press.%20regulator%20potable%20water%20without%20DVGW%2C%20R%201%201-2?unique=212e0ec)
|
