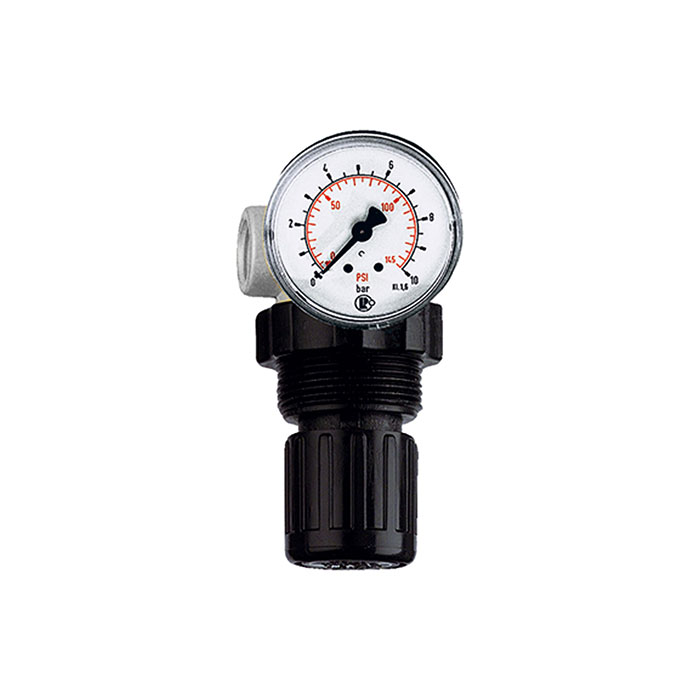

RIEGLER Pressure relief valve, incl. pressure gauge, G 1/4, 0.1 - 2 bar
Type number: 490.02
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
101463EAN :
4047322093590Category :
Safety Valves & Pressure Relief ValvesWeight :
0.19 kgRIEGLER Pressure relief valve made of die-cast zinc, painted silver, for industrial systems, G 1/4 - type 490.02
The RIEGLER pressure relief valve, incl. pressure gauge, G 1/4, 0.1 - 2.0 bar reliably protects compressed air systems and containers from impermissible overpressure. The housing is made of die-cast zinc, painted silver with NBR seals. The permissible medium temperature is between -10 °C and 60 °C. G 1/4 connection thread - suitable for common industry standards. Reliable overpressure protection for safe systems.
Field of application
Typical areas of application: Pressure vessels, compressor systems and piping systems.
| Housing | Die-cast zinc, painted silver |
| Sealing material | NBR |
| Membrane | NBR |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM/brass |
| Thread | G 1/4 |
| Setting range min. | 0.1 bar |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 2.5 bar |
| A | 43 mm |
| B | 70 mm |
| C | 10 mm |
| D | 60 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Setting range max. | 2 bar |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101467] RIEGLER Pressure relief valve, incl. pressure gauge, G 1/2, 0.1 - 3 bar](/web/image/product.template/169441/image_128/%5B101467%5D%20RIEGLER%20Pressure%20relief%20valve%2C%20incl.%20pressure%20gauge%2C%20G%201-2%2C%200.1%20-%203%20bar?unique=40cdd92)
|
Type number: 491.03 |
135.01 € | |
![[101469] RIEGLER Pressure relief valve, incl. pressure gauge, G 1/2, 0.5 - 10 bar](/web/image/product.template/169443/image_128/%5B101469%5D%20RIEGLER%20Pressure%20relief%20valve%2C%20incl.%20pressure%20gauge%2C%20G%201-2%2C%200.5%20-%2010%20bar?unique=bafba2c)
|
Type number: 491.10 |
135.01 € | |

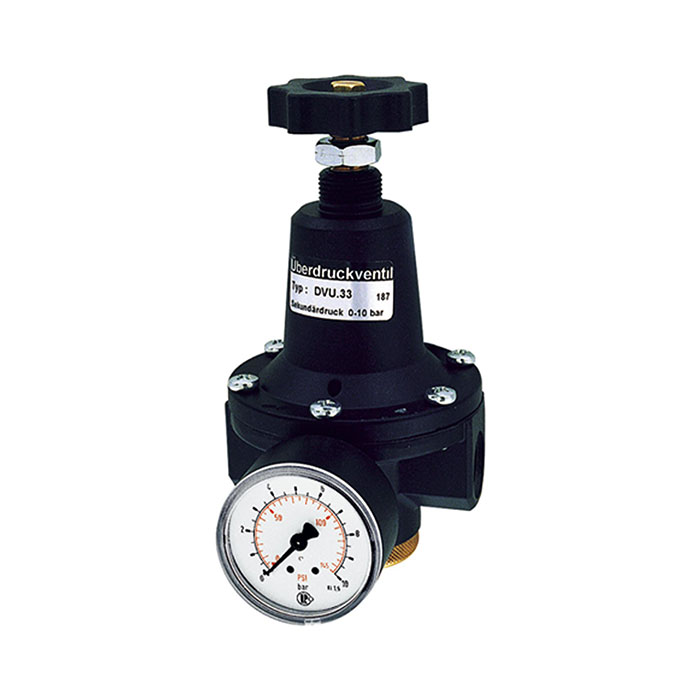

![[101468] RIEGLER Pressure relief valve, incl. pressure gauge, G 1/2, 0.5 - 5.5 bar](/web/image/product.template/169442/image_128/%5B101468%5D%20RIEGLER%20Pressure%20relief%20valve%2C%20incl.%20pressure%20gauge%2C%20G%201-2%2C%200.5%20-%205.5%20bar?unique=f33fb72)
|
Type number: 491.05 |
135.01 € | |
![[101464] RIEGLER Pressure relief valve, incl. pressure gauge, G 1/4, 0.1 - 3 bar](/web/image/product.template/169438/image_128/%5B101464%5D%20RIEGLER%20Pressure%20relief%20valve%2C%20incl.%20pressure%20gauge%2C%20G%201-4%2C%200.1%20-%203%20bar?unique=6e1d7cf)
|
Type number: 490.03 |
39.85 € | |

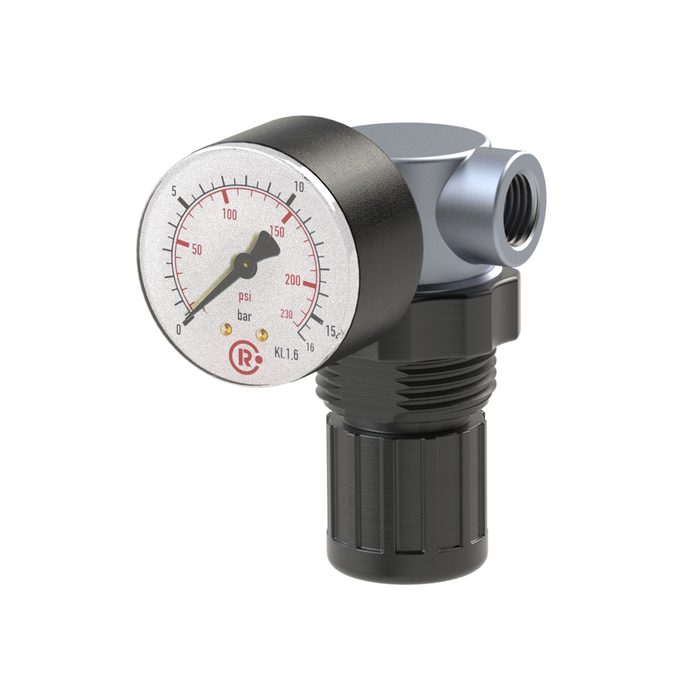

![[101465] RIEGLER Pressure relief valve, incl. pressure gauge, G 1/4, 0.15 - 7 bar](/web/image/product.template/169439/image_128/%5B101465%5D%20RIEGLER%20Pressure%20relief%20valve%2C%20incl.%20pressure%20gauge%2C%20G%201-4%2C%200.15%20-%207%20bar?unique=da4a2e1)
|
Type number: 490.07 |
39.85 € | |
![[101466] RIEGLER Pressure relief valve, incl. pressure gauge, G 1/4, 0.5 - 10 bar](/web/image/product.template/169440/image_128/%5B101466%5D%20RIEGLER%20Pressure%20relief%20valve%2C%20incl.%20pressure%20gauge%2C%20G%201-4%2C%200.5%20-%2010%20bar?unique=fff0f50)
|
Type number: 490.10 |
39.85 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100290] RIEGLER Sintered bronze silencer, Brass thread / hexagonal, G 1/4, AF 15](/web/image/product.template/139725/image_128/%5B100290%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Brass%20thread%20-%20hexagonal%2C%20G%201-4%2C%20AF%2015?unique=27cd30c)
|
Type number: 567-2/M |
3.13 € | |

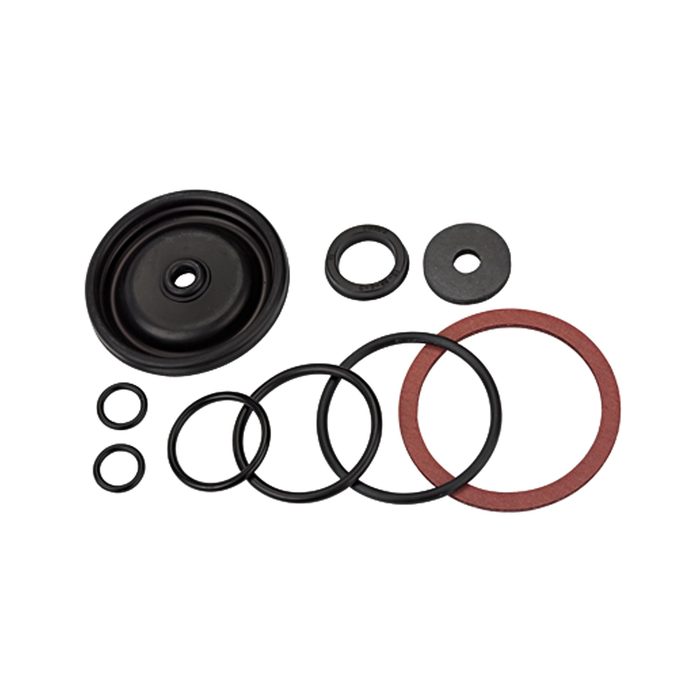

![[101344] RIEGLER Seal set, for pressure regulator for water, R 3/4](/web/image/product.template/169318/image_128/%5B101344%5D%20RIEGLER%20Seal%20set%2C%20for%20pressure%20regulator%20for%20water%2C%20R%203-4?unique=5d99bc3)
|
Type number: 100.502 |
78.30 € | |
![[101345] RIEGLER Seal set, for pressure regulator for water, R 1](/web/image/product.template/169319/image_128/%5B101345%5D%20RIEGLER%20Seal%20set%2C%20for%20pressure%20regulator%20for%20water%2C%20R%201?unique=7f35ad9)
|
Type number: 100.503 |
78.30 € | |

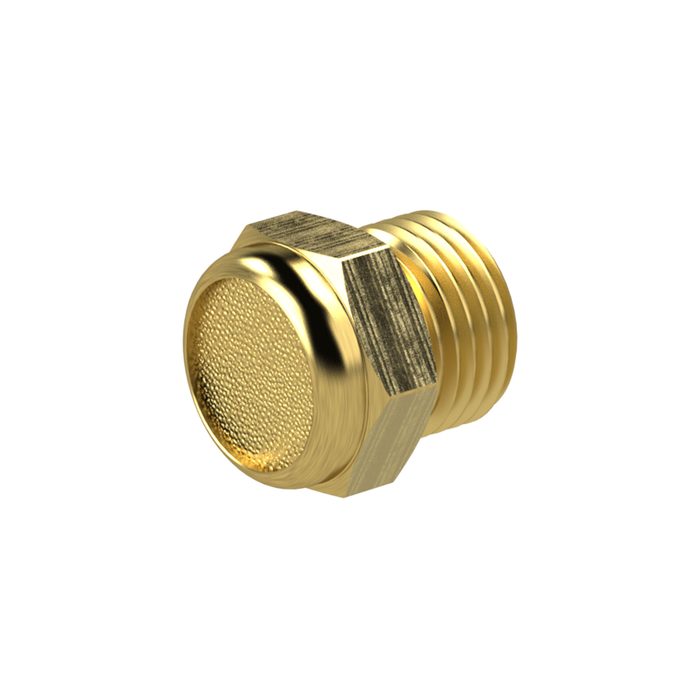

![[101471] RIEGLER Sintered bronze silencer, flat, G 1/4 o., AF 15](/web/image/product.template/169445/image_128/%5B101471%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20flat%2C%20G%201-4%20o.%2C%20AF%2015?unique=91a9349)
|
Type number: 569-2 |
0.75 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

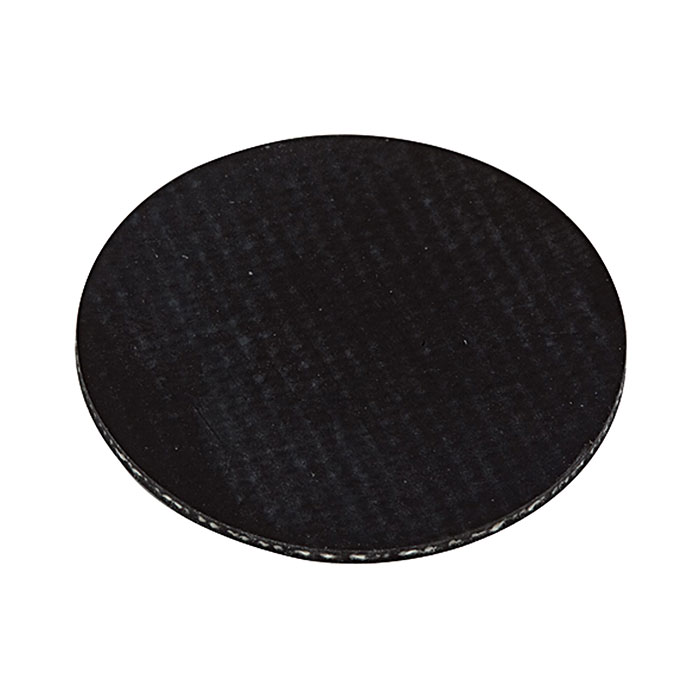

![[101470] RIEGLER Wear part set, for pressure relief valve, G 1/4](/web/image/product.template/169444/image_128/%5B101470%5D%20RIEGLER%20Wear%20part%20set%2C%20for%20pressure%20relief%20valve%2C%20G%201-4?unique=b1d76d9)
|
