RIEGLER Pressure relief valve, incl. pressure gauge, G 1/4, 0.15 - 7 bar
Type number: 490.07
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
101465EAN :
4047322093637Category :
Safety valves & pressure relief valvesWeight :
0.20 kgPressure relief valve, incl. pressure gauge, G 1/4, setting range 0.15 - 7.0 bar, max. medium/ambient temp. 60 °C
| Housing | Die-cast zinc, painted silver |
| Sealing material | NBR |
| Membrane | NBR |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM/brass |
| Thread | G 1/4 |
| Setting range min. | 0.15 bar |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| A | 43 mm |
| B | 70 mm |
| C | 10 mm |
| D | 60 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Setting range max. | 7 bar |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101467] RIEGLER Pressure relief valve, incl. pressure gauge, G 1/2, 0.1 - 3 bar](/web/image/product.template/169441/image_128/%5B101467%5D%20RIEGLER%20Pressure%20relief%20valve%2C%20incl.%20pressure%20gauge%2C%20G%201-2%2C%200.1%20-%203%20bar?unique=7cf210f)
|
Type number: 491.03 |
135.02 € | |
![[101469] RIEGLER Pressure relief valve, incl. pressure gauge, G 1/2, 0.5 - 10 bar](/web/image/product.template/169443/image_128/%5B101469%5D%20RIEGLER%20Pressure%20relief%20valve%2C%20incl.%20pressure%20gauge%2C%20G%201-2%2C%200.5%20-%2010%20bar?unique=23ce23a)
|
Type number: 491.10 |
135.02 € | |
![[101468] RIEGLER Pressure relief valve, incl. pressure gauge, G 1/2, 0.5 - 5.5 bar](/web/image/product.template/169442/image_128/%5B101468%5D%20RIEGLER%20Pressure%20relief%20valve%2C%20incl.%20pressure%20gauge%2C%20G%201-2%2C%200.5%20-%205.5%20bar?unique=8f6c893)
|
Type number: 491.05 |
135.02 € | |

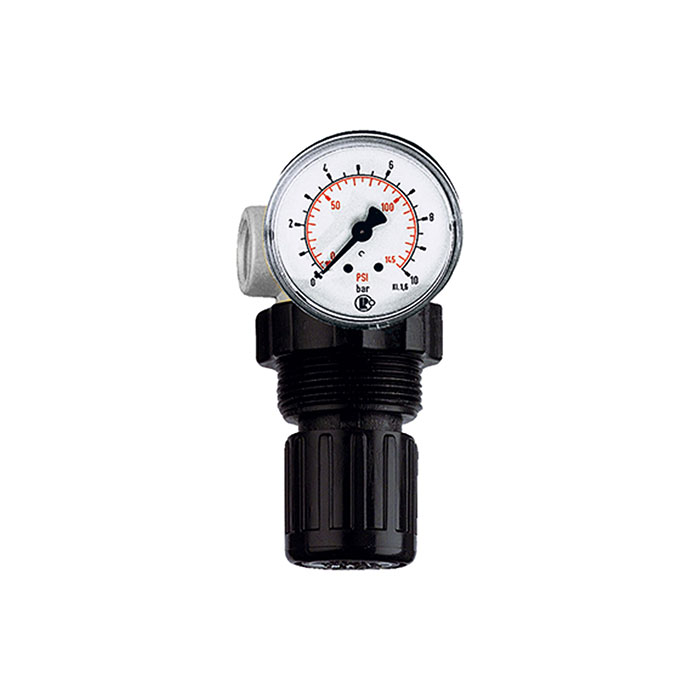

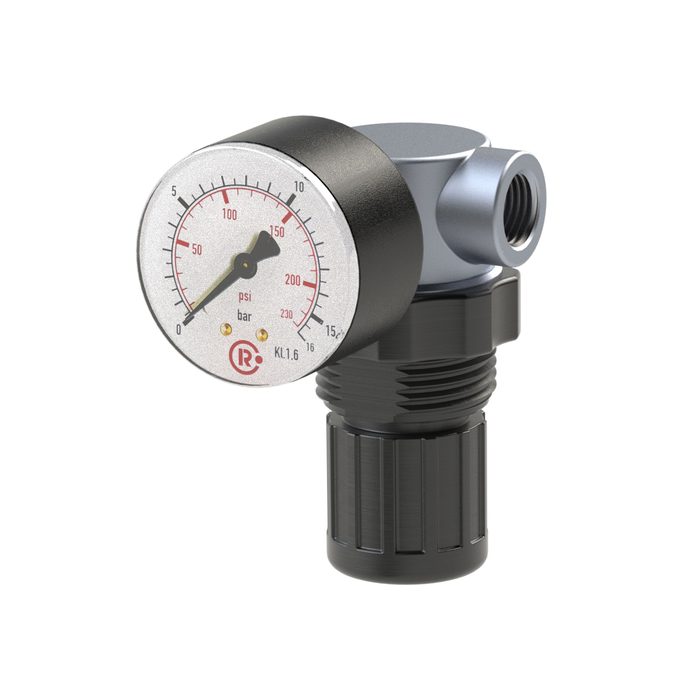

![[101463] RIEGLER Pressure relief valve, incl. pressure gauge, G 1/4, 0.1 - 2 bar](/web/image/product.template/169437/image_128/%5B101463%5D%20RIEGLER%20Pressure%20relief%20valve%2C%20incl.%20pressure%20gauge%2C%20G%201-4%2C%200.1%20-%202%20bar?unique=89f80f9)
|
Type number: 490.02 |
39.85 € | |
![[101464] RIEGLER Pressure relief valve, incl. pressure gauge, G 1/4, 0.1 - 3 bar](/web/image/product.template/169438/image_128/%5B101464%5D%20RIEGLER%20Pressure%20relief%20valve%2C%20incl.%20pressure%20gauge%2C%20G%201-4%2C%200.1%20-%203%20bar?unique=ced076b)
|
Type number: 490.03 |
39.85 € | |
![[101466] RIEGLER Pressure relief valve, incl. pressure gauge, G 1/4, 0.5 - 10 bar](/web/image/product.template/169440/image_128/%5B101466%5D%20RIEGLER%20Pressure%20relief%20valve%2C%20incl.%20pressure%20gauge%2C%20G%201-4%2C%200.5%20-%2010%20bar?unique=3bdc69d)
|
Type number: 490.10 |
39.85 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

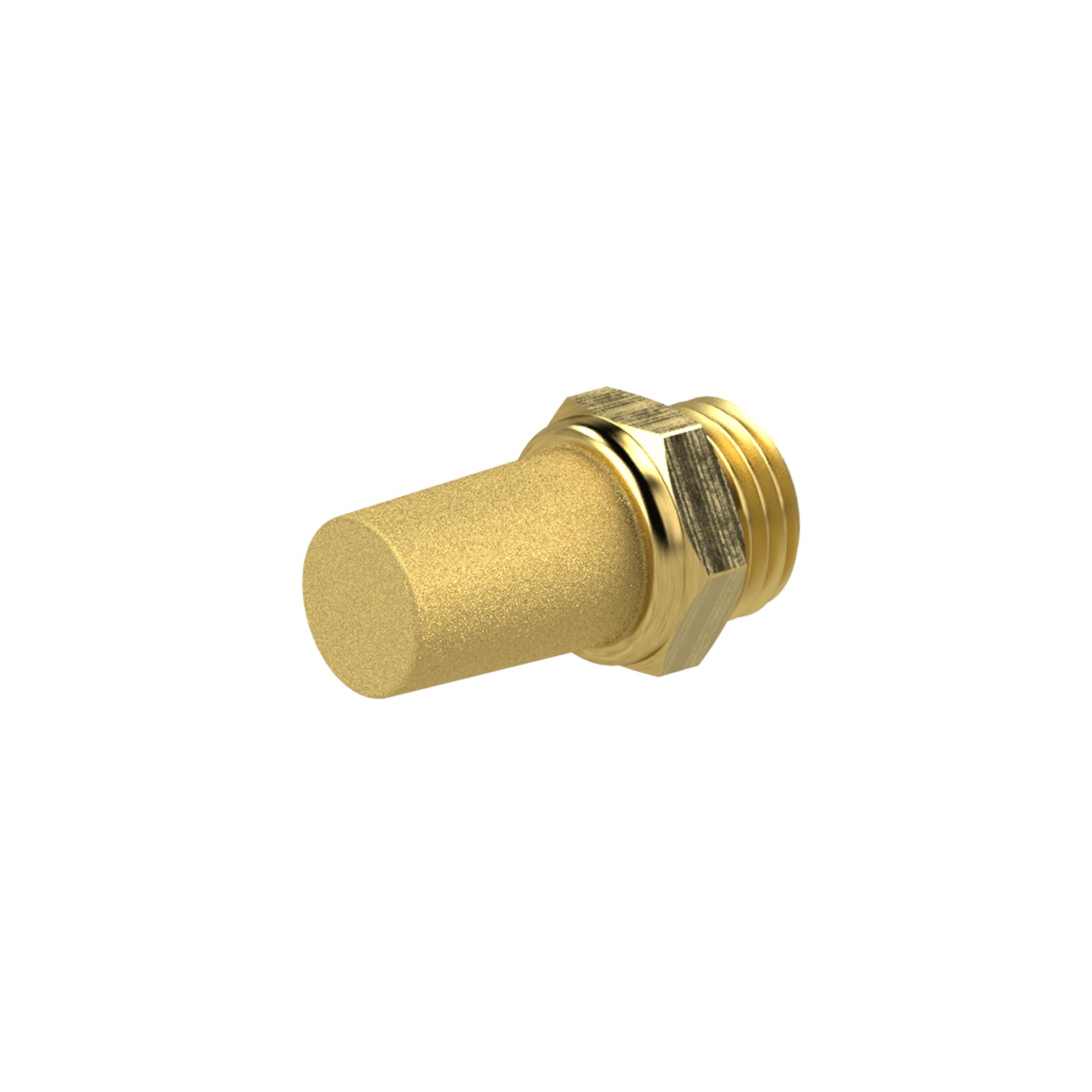

![[100290] RIEGLER Sintered bronze silencer, Brass thread / hexagonal, G 1/4, AF 15](/web/image/product.template/139725/image_128/%5B100290%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Brass%20thread%20-%20hexagonal%2C%20G%201-4%2C%20AF%2015?unique=9a0b73e)
|
Type number: 567-2/M |
3.13 € | |
![[101344] RIEGLER Seal set, for pressure regulator for water, R 3/4](/web/image/product.template/169318/image_128/%5B101344%5D%20RIEGLER%20Seal%20set%2C%20for%20pressure%20regulator%20for%20water%2C%20R%203-4?unique=6fd5b8e)
|
Type number: 100.502 |
78.30 € | |

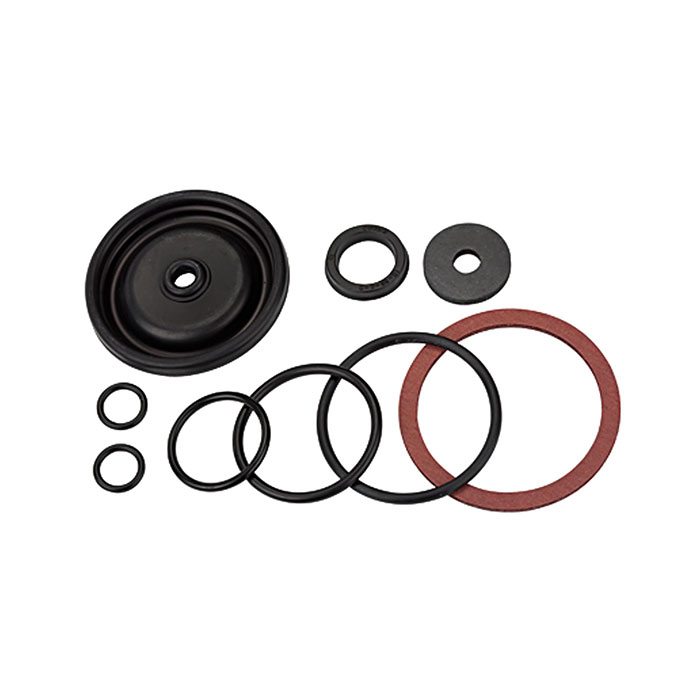

![[101345] RIEGLER Seal set, for pressure regulator for water, R 1](/web/image/product.template/169319/image_128/%5B101345%5D%20RIEGLER%20Seal%20set%2C%20for%20pressure%20regulator%20for%20water%2C%20R%201?unique=354cd50)
|
Type number: 100.503 |
78.30 € | |

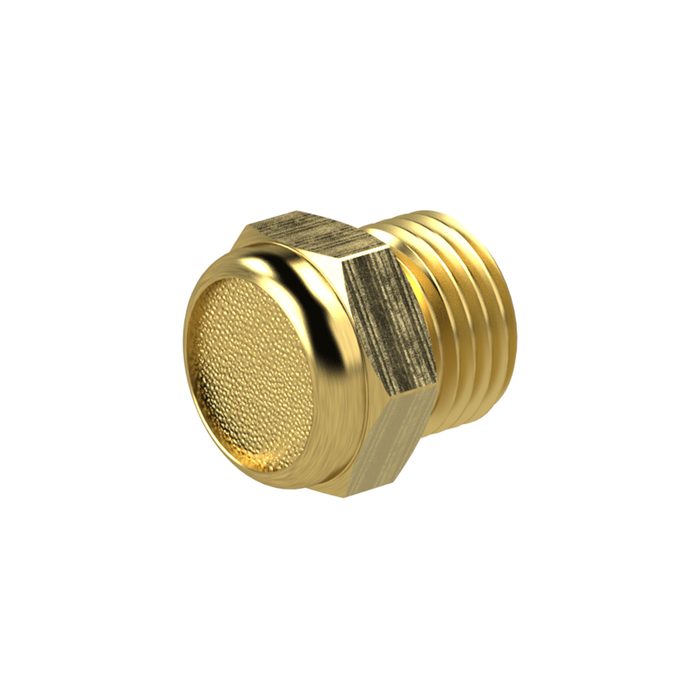

![[101471] RIEGLER Sintered bronze silencer, flat, G 1/4 o., AF 15](/web/image/product.template/169445/image_128/%5B101471%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20flat%2C%20G%201-4%20o.%2C%20AF%2015?unique=a905035)
|
Type number: 569-2 |
0.76 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101672] RIEGLER Standard pressure gauge, rear centric, G 1/8, 0 - 10 bar/145 psi](/web/image/product.template/169644/image_128/%5B101672%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-8%2C%200%20-%2010%20bar-145%20psi?unique=286db17)
|
Type number: 110.46-KD |
6.15 € | |

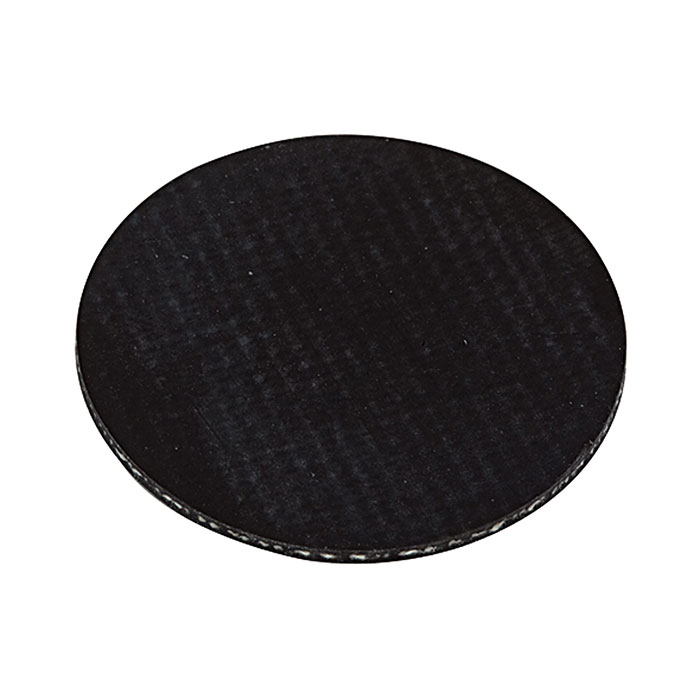

![[101470] RIEGLER Wear part set, for pressure relief valve, G 1/4](/web/image/product.template/169444/image_128/%5B101470%5D%20RIEGLER%20Wear%20part%20set%2C%20for%20pressure%20relief%20valve%2C%20G%201-4?unique=b5421da)
|
