RIEGLER Inline pressure regulator, 2 x IT, G 1/4, AF 17, pre-set 6 bar
Type number: 637.19
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Inline pressure regulator, 2 x female thread, without secondary venting, G 1/4, SW 17, working pressure (preset) 6 bar, PN max. 18 bar
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Housing | Zinc |
| Flow rate measurement | with P<subscript>1</subscript> = 12 bar and pressure drop Î"<subscript>p </subscript>= 0.5 bar |
| Series | inline |
| Max. operating pressure | 18 bar |
| Interior parts | Brass, NBR, stainless steel |
| Thread | G 1/4 |
| Flow rate | 800 l/min |
| Working pressure (preset) | 6 bar |
| SW | 17 mm |
| A | 34 mm |
| B | 52 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101494] RIEGLER Inline pressure regulator, 2 x IT, G 1/4, AF 17, pre-set 1 bar](/web/image/product.template/169468/image_128/%5B101494%5D%20RIEGLER%20Inline%20pressure%20regulator%2C%202%20x%20IT%2C%20G%201-4%2C%20AF%2017%2C%20pre-set%201%20bar?unique=4e49bfd)
|
Type number: 637.11 |
27.56 € | |
![[101495] RIEGLER Inline pressure regulator, 2 x IT, G 1/4, AF 17, pre-set 2 bar](/web/image/product.template/169469/image_128/%5B101495%5D%20RIEGLER%20Inline%20pressure%20regulator%2C%202%20x%20IT%2C%20G%201-4%2C%20AF%2017%2C%20pre-set%202%20bar?unique=d910c36)
|
Type number: 637.13 |
27.56 € | |

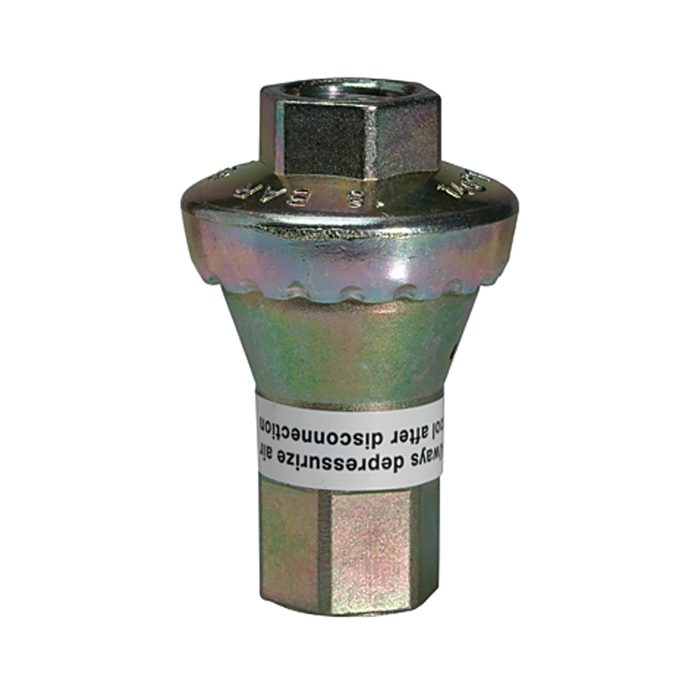

![[101496] RIEGLER Inline pressure regulator, 2 x IT, G 1/4, AF 17, pre-set 3 bar](/web/image/product.template/169470/image_128/%5B101496%5D%20RIEGLER%20Inline%20pressure%20regulator%2C%202%20x%20IT%2C%20G%201-4%2C%20AF%2017%2C%20pre-set%203%20bar?unique=5d11fd3)
|
Type number: 637.15 |
27.56 € | |
![[101497] RIEGLER Inline pressure regulator, 2 x IT, G 1/4, AF 17, pre-set 4 bar](/web/image/product.template/169471/image_128/%5B101497%5D%20RIEGLER%20Inline%20pressure%20regulator%2C%202%20x%20IT%2C%20G%201-4%2C%20AF%2017%2C%20pre-set%204%20bar?unique=c8f7ccf)
|
Type number: 637.17 |
27.56 € | |
![[101498] RIEGLER Inline pressure regulator, 2 x IT, G 1/4, AF 17, pre-set 5 bar](/web/image/product.template/169472/image_128/%5B101498%5D%20RIEGLER%20Inline%20pressure%20regulator%2C%202%20x%20IT%2C%20G%201-4%2C%20AF%2017%2C%20pre-set%205%20bar?unique=dec6fa3)
|
Type number: 637.18 |
27.56 € | |
![[101500] RIEGLER Inline pressure regulator, 2 x IT, G 1/4, AF 17, pre-set 6.5 bar](/web/image/product.template/169474/image_128/%5B101500%5D%20RIEGLER%20Inline%20pressure%20regulator%2C%202%20x%20IT%2C%20G%201-4%2C%20AF%2017%2C%20pre-set%206.5%20bar?unique=7b94df5)
|
Type number: 637.21 |
27.56 € | |
![[101501] RIEGLER Inline pressure regulator, 2 x IT, G 1/4, AF 17, pre-set 7 bar](/web/image/product.template/169475/image_128/%5B101501%5D%20RIEGLER%20Inline%20pressure%20regulator%2C%202%20x%20IT%2C%20G%201-4%2C%20AF%2017%2C%20pre-set%207%20bar?unique=b69a165)
|
Type number: 637.22 |
27.56 € | |
