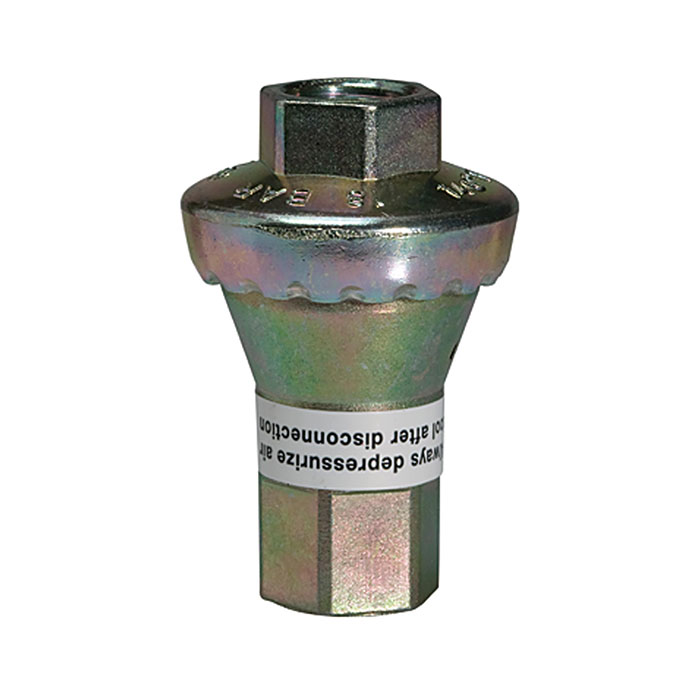

RIEGLER Inline pressure regulator, 2 x IT, G 1/4, AF 17, pre-set 6.5 bar
Type number: 637.21
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Inline pressure regulator made of zinc, for compressed air treatment, max. 18 bar - Type 637.21
The RIEGLER inline pressure regulator, 2xIG, without secondary venting, G 1/4, 6.5 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of zinc. Designed for a maximum operating pressure of 18 bar. The temperature range is between 0 °C and 60 °C. G 1/4 connection thread - suitable for common industry standards. The flow rate is 800 l/min (at P1 = 12 bar and pressure drop Δp = 0.5 bar). Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Housing | Zinc |
| Flow rate measurement | with P<subscript>1</subscript> = 12 bar and pressure drop Î"<subscript>p </subscript>= 0.5 bar |
| Series | inline |
| Max. operating pressure | 18 bar |
| Interior parts | Brass, NBR, stainless steel |
| Thread | G 1/4 |
| Flow rate | 800 l/min |
| Working pressure (preset) | 6.5 bar |
| SW | 17 mm |
| A | 34 mm |
| B | 52 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | EASY |
