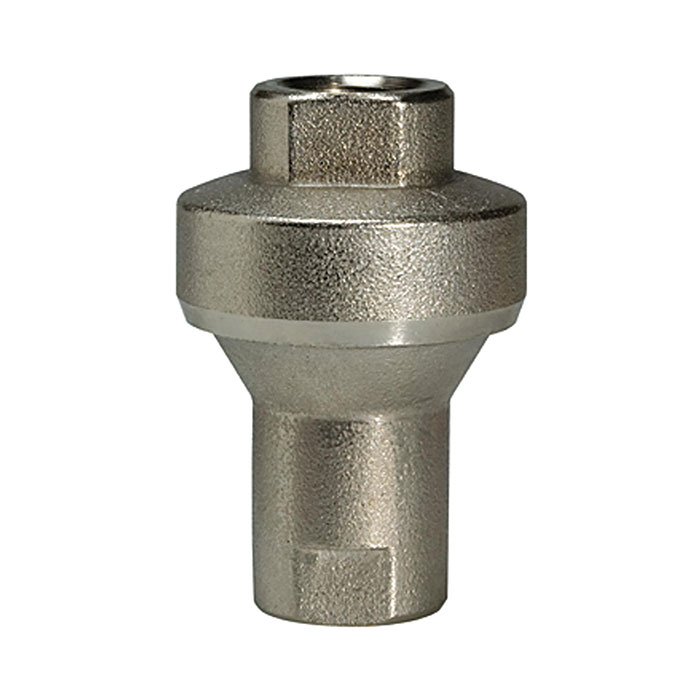

RIEGLER Inline pressure regulator for water / air, G 1/4, pre-set 2 bar
Type number: 639.02
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Inline pressure regulator for water / compressed air applications, without venting, G 1/4, AF 17, Working pressure (pre-set) 2 bar
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Housing | Nickel-plated brass |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar and pressure drop Î"<sub>p </sub>= 0.8 bar (compressed air) |
| Series | inline |
| Flow rate (water) | 10 l/min |
| Interior parts | Brass |
| Operating pressure | max. 10 bar (water) / 18 bar (compressed air) |
| Thread | G 1/4 |
| Flow rate (air) | 600 l/min |
| Working pressure (preset) | 2 bar |
| SW | 17 mm |
| A | 34 mm |
| B | 52 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101502] RIEGLER Inline pressure regulator for water / air, G 1/4, pre-set 1 bar](/web/image/product.template/169476/image_128/%5B101502%5D%20RIEGLER%20Inline%20pressure%20regulator%20for%20water%20-%20air%2C%20G%201-4%2C%20pre-set%201%20bar?unique=27a70dc)
|
Type number: 639.01 |
45.29 € | |
![[101504] RIEGLER Inline pressure regulator for water / air, G 1/4, pre-set 3 bar](/web/image/product.template/169478/image_128/%5B101504%5D%20RIEGLER%20Inline%20pressure%20regulator%20for%20water%20-%20air%2C%20G%201-4%2C%20pre-set%203%20bar?unique=68c6dc6)
|
Type number: 639.03 |
45.29 € | |
![[101505] RIEGLER Inline pressure regulator for water / air, G 1/4, pre-set 4 bar](/web/image/product.template/169479/image_128/%5B101505%5D%20RIEGLER%20Inline%20pressure%20regulator%20for%20water%20-%20air%2C%20G%201-4%2C%20pre-set%204%20bar?unique=bbd4061)
|
Type number: 639.04 |
45.29 € | |
![[150634] RIEGLER Inline pressure regulator for water / air, G 1/4, pre-set 5 bar](/web/image/product.template/211185/image_128/%5B150634%5D%20RIEGLER%20Inline%20pressure%20regulator%20for%20water%20-%20air%2C%20G%201-4%2C%20pre-set%205%20bar?unique=9c3598f)
|
Typennummer: 639.05 |
45.29 € | |
![[150635] RIEGLER Inline pressure regulator for water / air, G 1/4, pre-set 6 bar](/web/image/product.template/211186/image_128/%5B150635%5D%20RIEGLER%20Inline%20pressure%20regulator%20for%20water%20-%20air%2C%20G%201-4%2C%20pre-set%206%20bar?unique=7e056d3)
|
Typennummer: 639.06 |
45.29 € | |
![[150636] RIEGLER Inline pressure regulator for water / air, G 1/4, pre-set 7 bar](/web/image/product.template/211187/image_128/%5B150636%5D%20RIEGLER%20Inline%20pressure%20regulator%20for%20water%20-%20air%2C%20G%201-4%2C%20pre-set%207%20bar?unique=3a9e49e)
|
Typennummer: 639.07 |
45.29 € | |
![[150637] RIEGLER Inline pressure regulator for water / air, G 1/4, pre-set 8 bar](/web/image/product.template/211188/image_128/%5B150637%5D%20RIEGLER%20Inline%20pressure%20regulator%20for%20water%20-%20air%2C%20G%201-4%2C%20pre-set%208%20bar?unique=1b33dbf)
|
Typennummer: 639.08 |
45.29 € | |
