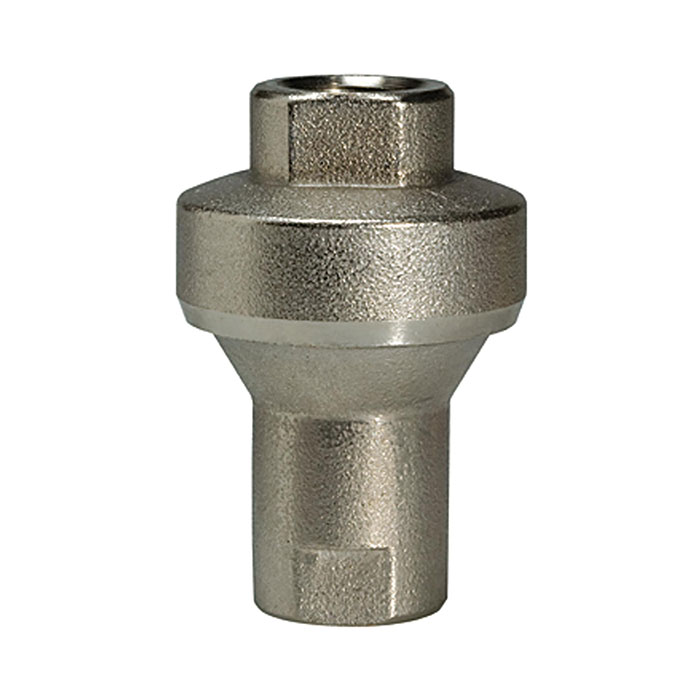

RIEGLER Inline pressure regulator for water / air, G 1/4, pre-set 6 bar
Typennummer: 639.06
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Inline pressure regulator for water / compressed air applications, without venting, G 1/4, AF 17, Working pressure (pre-set) 6 bar
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Housing | Nickel-plated brass |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar and pressure drop Î"<sub>p </sub>= 0.8 bar (compressed air) |
| Series | inline |
| Flow rate (water) | 10 l/min |
| Interior parts | Brass |
| Operating pressure | max. 10 bar (water) / 18 bar (compressed air) |
| Thread | G 1/4 |
| Flow rate (air) | 800 l/min |
| Working pressure (preset) | 6 bar |
| SW | 17 mm |
| A | 34 mm |
| B | 52 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Class name | FLEX |
