RIEGLER Double piston pressure multiplier(booster)without controller,G3/8
Type number: B-923
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
101530EAN :
4047322284912Category :
Air-Air Pressure Multipliers (Boosters)Weight :
4.24 kgRIEGLER Air-air pressure booster (booster) without regulator made of aluminium, anodized - Type B-923
The RIEGLER air-air pressure booster without regulator, G 3/8, piston Ø 63 converts compressed air into precise linear movement. The housing is made of anodized aluminium with NBR seals. The maximum inlet pressure is 10 bar. The temperature range is between -10 °C and 60 °C. Connection thread G 3/8 - suitable for common industry standards. With piston Ø 63 mm - for powerful linear actuator solutions. Reliable linear actuator technology.
Field of application
Typical areas of application: Automation and mechanical engineering.
| Inlet pressure min. | 2 bar |
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Housing | Aluminum, anodized |
| Sealing material | NBR |
| Pipe | Profile tube made of aluminium, anodized |
| Mounting options | any, via 4 mounting holes |
| Thread | G 3/8 |
| P2:P1 | 0 |
| Piston Ø | 63 mm |
| L | 290 mm |
| H | 98 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.0035 |
| Exception | 6a |
| REACH Info | contains SVHC substance |
| Outlet pressure max. | 20 bar |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | C 45 Pb |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

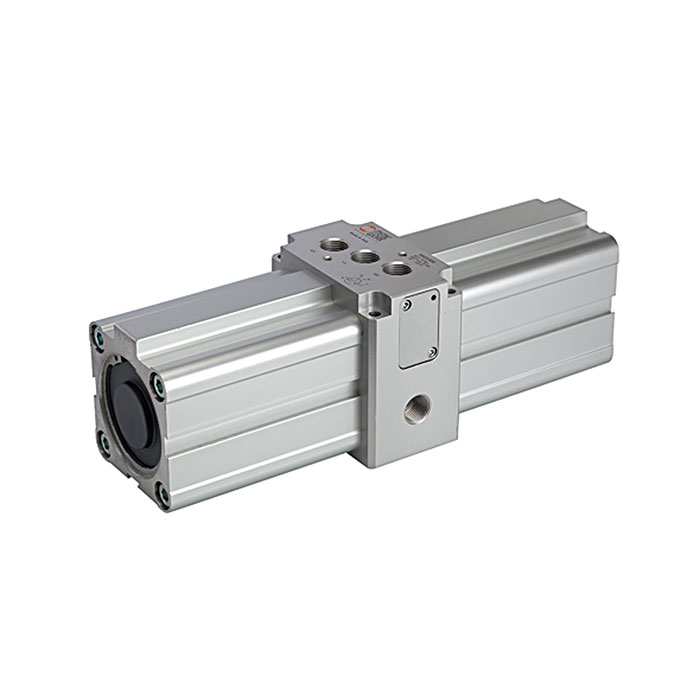

![[101529] RIEGLER Double piston pressure multiplier(booster)without controller,G1/8](/web/image/product.template/169503/image_128/%5B101529%5D%20RIEGLER%20Double%20piston%20pressure%20multiplier%28booster%29without%20controller%2CG1-8?unique=620f881)
|
Type number: B-921 |
295.66 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101533] RIEGLER Standard pressure gauge, rear centric, G 1/8, 0 - 6 bar/87 psi](/web/image/product.template/169507/image_128/%5B101533%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-8%2C%200%20-%206%20bar-87%20psi?unique=3377a6e)
|
Type number: 110.45-KD |
6.10 € | |
![[101534] RIEGLER Standard pressure gauge, rear centric, G 1/8, 0 - 16 bar/230 psi](/web/image/product.template/169508/image_128/%5B101534%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-8%2C%200%20-%2016%20bar-230%20psi?unique=c789685)
|
Type number: 110.47-KD |
6.10 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

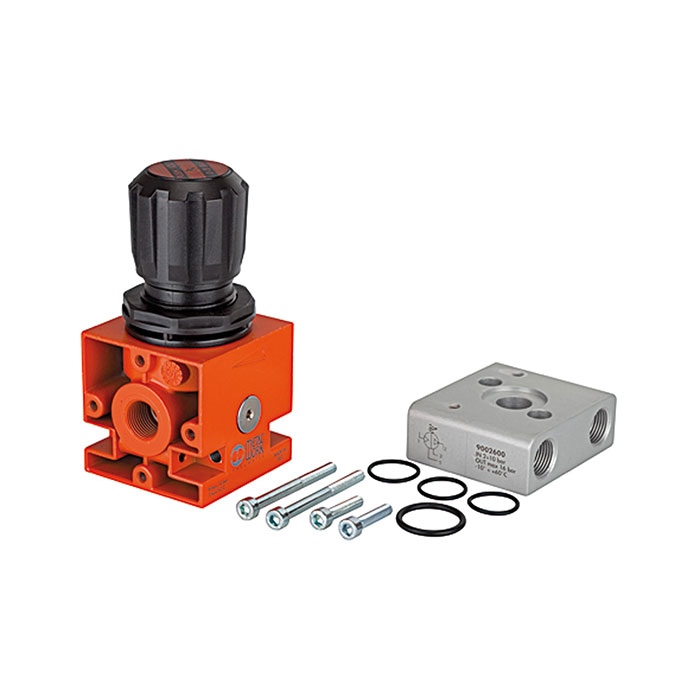

![[101538] RIEGLER Controller unit](/web/image/product.template/169512/image_128/%5B101538%5D%20RIEGLER%20Controller%20unit?unique=f04c258)
|
Type number: B-931 |
67.27 € | |

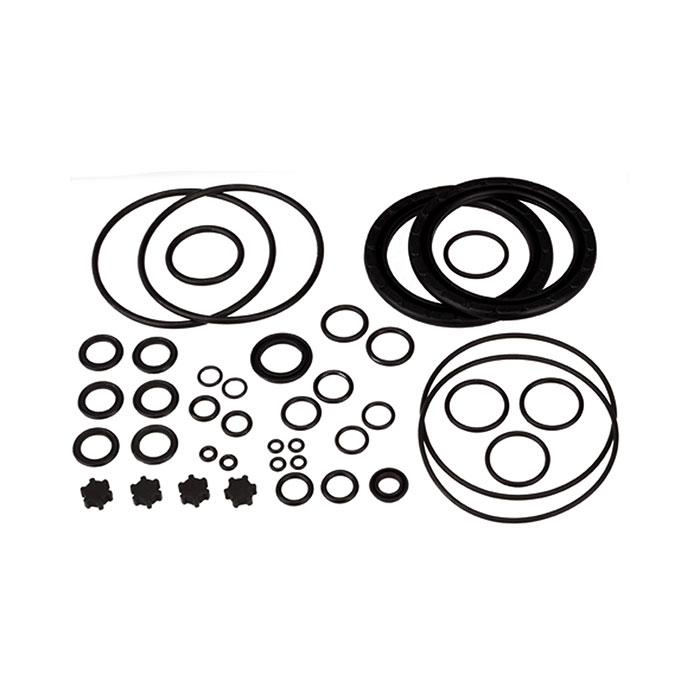

![[101536] RIEGLER Seal set, for pressure amplifier and controller, Ø 63 mm](/web/image/product.template/169510/image_128/%5B101536%5D%20RIEGLER%20Seal%20set%2C%20for%20pressure%20amplifier%20and%20controller%2C%20%C3%98%2063%20mm?unique=265e251)
|
