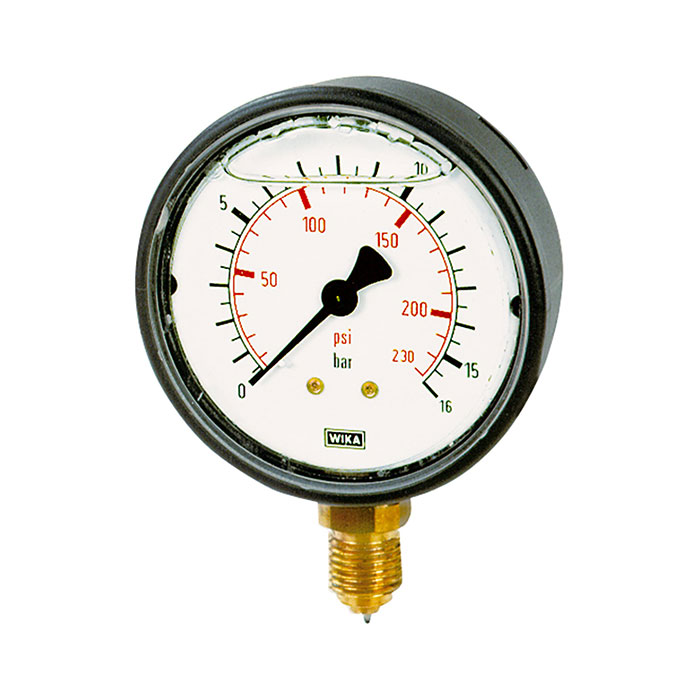

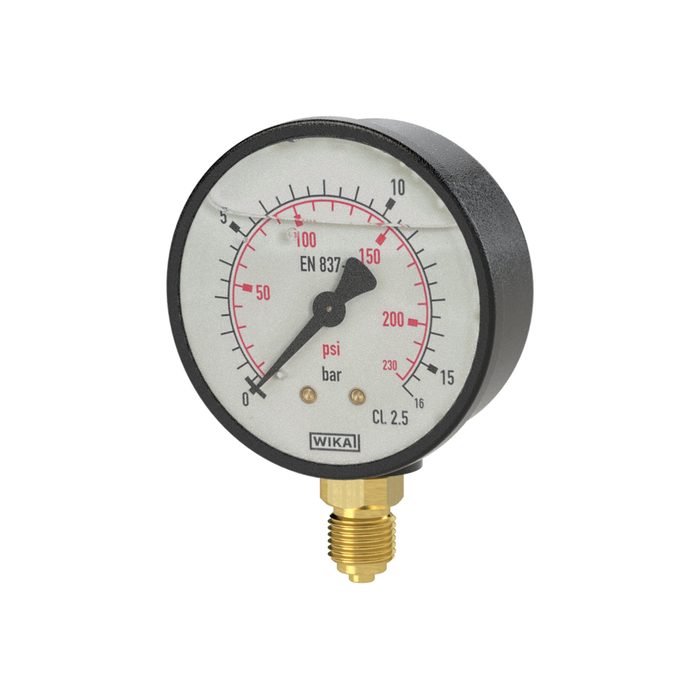

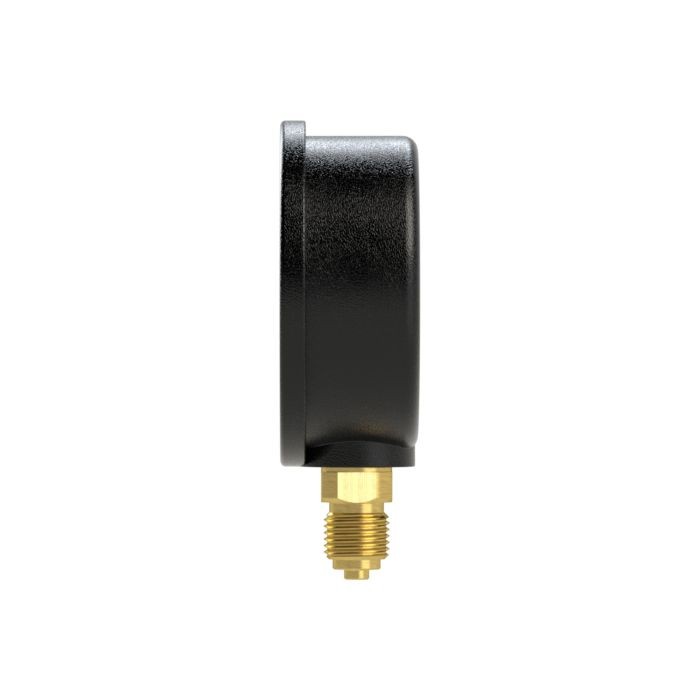

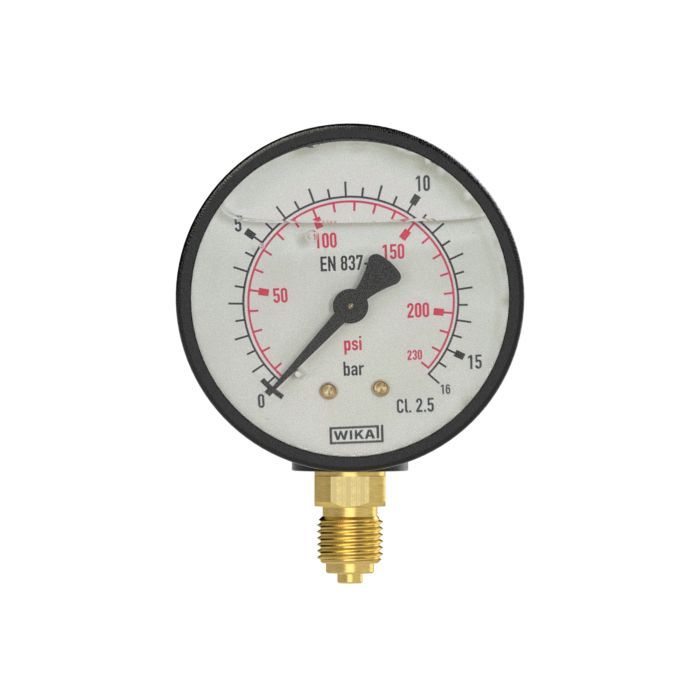

RIEGLER Glycerine pressure gauge, radial bottom, G 1/4, 0 - 1.6 bar, Ø 63
Type number: 703-K
EAN: 4047322113755
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
102075EAN :
4047322113755Category :
Glycerine-Filled Pressure GaugesWeight :
0.15 kgGlycerine manometer with plastic housing, double scale bar/psi, radial bottom connection, G 1/4, grade 2.5, measuring range 0 - 1.6 bar, Ø 63
| Housing | Plastic, black (with front flange) |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 60 °C |
| Type | 113.13 |
| Measuring element | Copper alloy |
| Pointer movement | Copper alloy |
| Viewing window | PMMA, welded to housing |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 1.6 |
| Measuring range min. psi | 0 |
| Diameter | 63 mm |
| Graduation value in the bar range | 0.05 bar |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | G 1/4 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Measuring range max. psi | 23 |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Quality class | 45414 |
| Lower / Upper measuring range limit | Overpressure |
| Connection position | radial bottom |
| Class name | EASY |
| Process connection material | Copper alloy |
