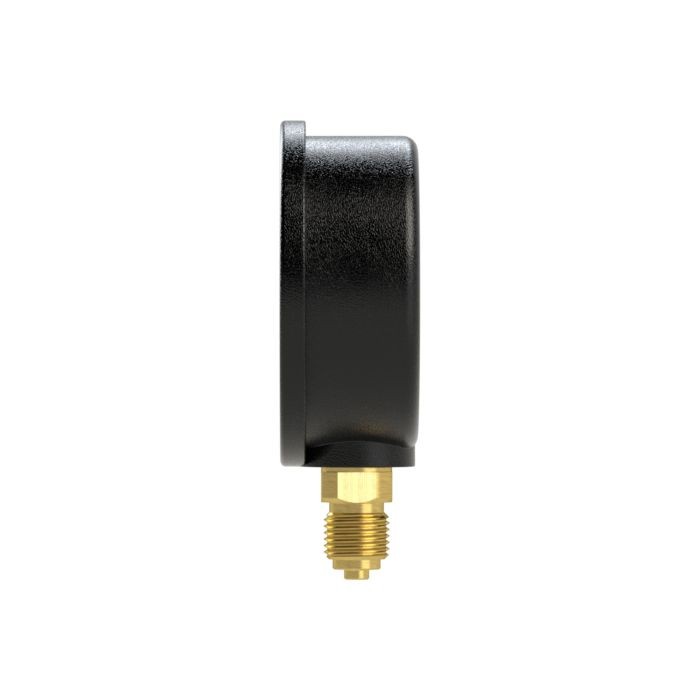

RIEGLER Glycerine pressure gauge, radial bottom, G 1/4, 0 - 100 bar, Ø 63
Type number: 712-K
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
102084EAN :
4047322114080Category :
Glycerine-Filled Pressure GaugesWeight :
0.15 kgGlycerine pressure gauge, plastic housing, Connection radial bottom, G 1/4, Goods class 2.5, Measurement range 0 - 100 bar, Ø 63
| Housing | Plastic, black (with front flange) |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 60 °C |
| Type | 113.13 |
| Measuring element | Copper alloy |
| Pointer movement | Copper alloy |
| Viewing window | PMMA, welded to housing |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 100 |
| Measuring range min. psi | 0 |
| Diameter | 63 mm |
| Graduation value in the bar range | 5 bar |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/4 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Measuring range max. psi | 1450 |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Quality class | 45414 |
| Lower / Upper measuring range limit | Overpressure |
| Connection position | radial bottom |
| Class name | EASY |
| Process connection material | Copper alloy |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[102079] RIEGLER Glycerine pressure gauge, radial bottom, G 1/4, 0 - 10 bar, Ø 63](/web/image/product.template/170051/image_128/%5B102079%5D%20RIEGLER%20Glycerine%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-4%2C%200%20-%2010%20bar%2C%20%C3%98%2063?unique=4981a56)
|
Type number: 707-K |
25.29 € | |
![[102085] RIEGLER Glycerine pressure gauge, radial bottom, G 1/4, 0 - 160 bar, Ø 63](/web/image/product.template/170057/image_128/%5B102085%5D%20RIEGLER%20Glycerine%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-4%2C%200%20-%20160%20bar%2C%20%C3%98%2063?unique=c71cef7)
|
Type number: 713-K |
25.29 € | |
![[102075] RIEGLER Glycerine pressure gauge, radial bottom, G 1/4, 0 - 1.6 bar, Ø 63](/web/image/product.template/170047/image_128/%5B102075%5D%20RIEGLER%20Glycerine%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-4%2C%200%20-%201.6%20bar%2C%20%C3%98%2063?unique=4f21884)
|
Type number: 703-K |
25.29 € | |
![[102080] RIEGLER Glycerine pressure gauge, radial bottom, G 1/4, 0 - 16 bar, Ø 63](/web/image/product.template/170052/image_128/%5B102080%5D%20RIEGLER%20Glycerine%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-4%2C%200%20-%2016%20bar%2C%20%C3%98%2063?unique=0fc5e9c)
|
Type number: 708-K |
25.29 € | |
![[102074] RIEGLER Glycerine pressure gauge, radial bottom, G 1/4, 0 - 1 bar, Ø 63](/web/image/product.template/170046/image_128/%5B102074%5D%20RIEGLER%20Glycerine%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-4%2C%200%20-%201%20bar%2C%20%C3%98%2063?unique=5c2052b)
|
Type number: 702-K |
25.29 € | |
![[102086] RIEGLER Glycerine pressure gauge, radial bottom, G 1/4, 0 - 250 bar, Ø 63](/web/image/product.template/170058/image_128/%5B102086%5D%20RIEGLER%20Glycerine%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-4%2C%200%20-%20250%20bar%2C%20%C3%98%2063?unique=98383d6)
|
Type number: 714-K |
1.76 € | |
![[102076] RIEGLER Glycerine pressure gauge, radial bottom, G 1/4, 0 - 2.5 bar, Ø 63](/web/image/product.template/170048/image_128/%5B102076%5D%20RIEGLER%20Glycerine%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-4%2C%200%20-%202.5%20bar%2C%20%C3%98%2063?unique=3cb13b8)
|
Type number: 704-K |
25.29 € | |
![[102081] RIEGLER Glycerine pressure gauge, radial bottom, G 1/4, 0 - 25 bar, Ø 63](/web/image/product.template/170053/image_128/%5B102081%5D%20RIEGLER%20Glycerine%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-4%2C%200%20-%2025%20bar%2C%20%C3%98%2063?unique=2797d0b)
|
Type number: 709-K |
25.29 € | |
![[102087] RIEGLER Glycerine pressure gauge, radial bottom, G 1/4, 0 - 400 bar, Ø 63](/web/image/product.template/170059/image_128/%5B102087%5D%20RIEGLER%20Glycerine%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-4%2C%200%20-%20400%20bar%2C%20%C3%98%2063?unique=4fb9798)
|
Type number: 715-K |
25.29 € | |
![[102082] RIEGLER Glycerine pressure gauge, radial bottom, G 1/4, 0 - 40 bar, Ø 63](/web/image/product.template/170054/image_128/%5B102082%5D%20RIEGLER%20Glycerine%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-4%2C%200%20-%2040%20bar%2C%20%C3%98%2063?unique=d776fcb)
|
Type number: 710-K |
25.29 € | |

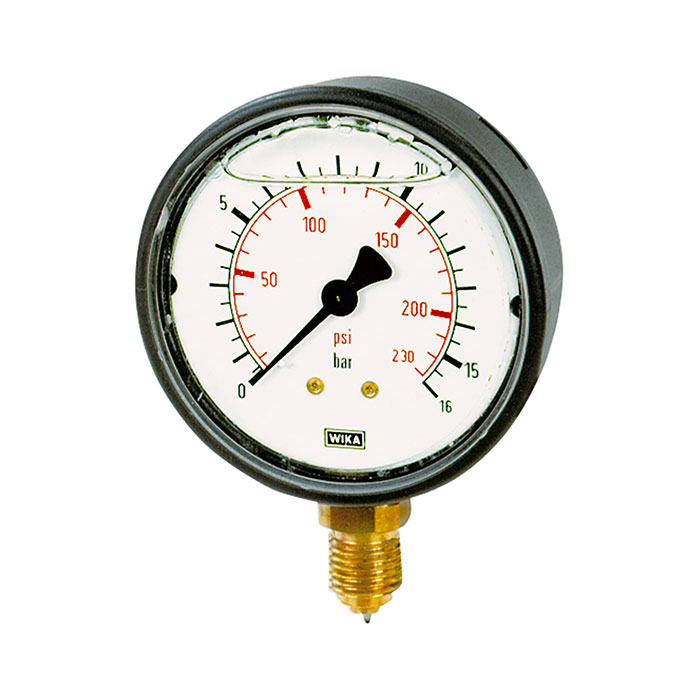

![[102077] RIEGLER Glycerine pressure gauge, radial bottom, G 1/4, 0 - 4 bar, Ø 63](/web/image/product.template/170049/image_128/%5B102077%5D%20RIEGLER%20Glycerine%20pressure%20gauge%2C%20radial%20bottom%2C%20G%201-4%2C%200%20-%204%20bar%2C%20%C3%98%2063?unique=5269234)
|
