KAESER Filter adsorption model F22KA G 3/4"

Volumenstrom: 2,20 m³/min

525.68 € 525.6800000000001 EUR 525.68 € VAT Included

589.00 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

KAESER Kompressoren SE

KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919

Product no. :

102112.10300

Category :

Compressed Air Filters

Weight :

3.20 kg

Delivery area :

Deutschland

Der KAESER Aktivkohlefilter ist optimiert für die effektive Adsorption und Entfernung von Öldämpfen aus Druckluftsystemen. Dieser Filter gewährleistet eine hohe Luftqualität und schützt nachgeschaltete Geräte vor Verunreinigungen.

Volume flow (m³/min)	2,20
Compressed air inlet connection	G 3/4"
Differential pressure in new condition	< 0,03
Min. overpressure	2 bar
Max. Overpressure	16 bar
Width (mm)	132
Height (mm)	420
Depth (mm)	98
Condensate drain	Ball valve
Min. ambient temperature (°C)	+3
Max. Ambient temperature (°C)	+50
Min. inlet temperature compressed air (°C)	+3
Max. Compressed air inlet temperature (°C)	+66
Degree of filtration	KA - Activated carbon filter adsorption

KAESER Betriebsanleitung F6-F320

Download

KAESER Prospekt Filter F6-F320

Download

Variants / Alternatives

Product		Price

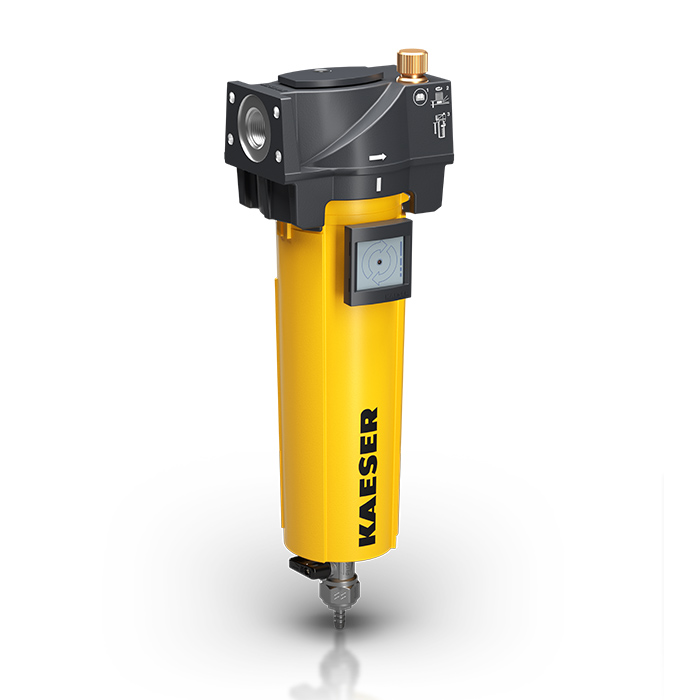

	[102112.10400] KAESER Filter adsorption model F22KA G 1" Volumenstrom: 2,20 m³/min	525.68 €	Add to cart

Accessoires and suitable extensions

Product		Price
	[405342.0] KAESER mounting KIT connecting flange KF2.2 Assembly kit / connection kit for 2 KAESER compressed air filters	42.01 €	Add to cart
	[4E0520.0] KAESER KIT wall mount filter KF2.2 KIT Wall bracket for KAESER compressed air filters	92.82 €	Add to cart

Maintenance, wear and spare parts

Product		Price
	[901563.0] KAESER Filter element E22KA Filterelement für KAESER Filter Adsorption Modell F22KA	305.83 €	Add to cart
