KAESER Filter adsorption model F22KA G 1"
Volume flow: 2.20 m³/min
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
Product no. :
102112.10400Category :
Compressed Air FiltersWeight :
3.20 kgDelivery area :
DeutschlandThe KAESER activated carbon filter is optimized for the effective adsorption and removal of oil vapors from compressed air systems. This filter ensures high air quality and protects downstream equipment from contamination.
| Volume flow (m³/min) | 2,20 |
| Compressed air inlet connection | G 1" |
| Differential pressure in new condition | < 0,03 |
| Min. overpressure | 2 bar |
| Max. Overpressure | 16 bar |
| Width (mm) | 132 |
| Height (mm) | 420 |
| Depth (mm) | 98 |
| Condensate drain | Ball valve |
| Min. ambient temperature (°C) | +3 |
| Max. Ambient temperature (°C) | +50 |
| Min. inlet temperature compressed air (°C) | +3 |
| Max. Compressed air inlet temperature (°C) | +66 |
| Degree of filtration | KA - Activated carbon filter adsorption |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

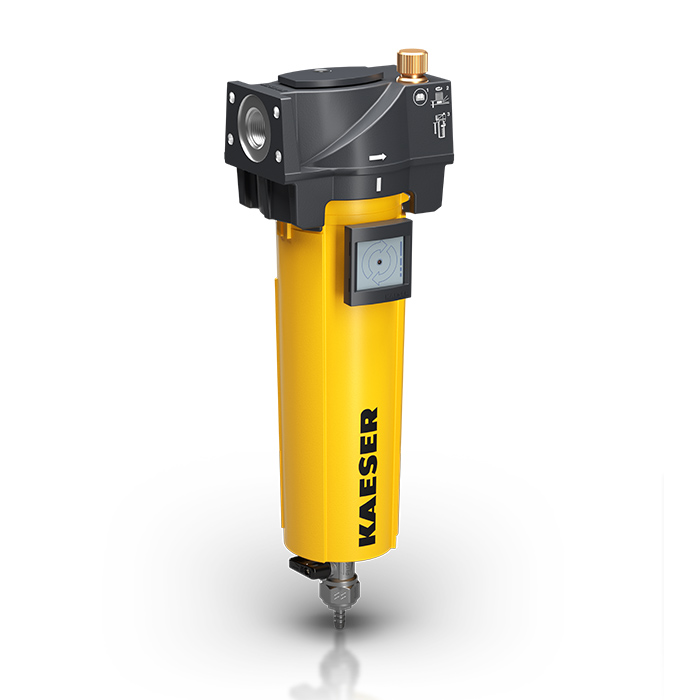

![[102112.10300] KAESER Filter adsorption model F22KA G 3/4"](/web/image/product.template/262279/image_128/%5B102112.10300%5D%20KAESER%20Filter%20adsorption%20model%20F22KA%20G%203-4%22?unique=b18f696)
|
Volume flow: 2.20 m³/min |
525.68 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[405342.0] KAESER mounting KIT connecting flange KF2.2](/web/image/product.template/226606/image_128/%5B405342.0%5D%20KAESER%20mounting%20KIT%20connecting%20flange%20KF2.2?unique=829548a)
|
Assembly kit / connection kit for 2 KAESER compressed air filters |
42.01 € | |
![[4E0520.0] KAESER KIT wall mount filter KF2.2](/web/image/product.template/234770/image_128/%5B4E0520.0%5D%20KAESER%20KIT%20wall%20mount%20filter%20KF2.2?unique=829548a)
|
KIT Wall bracket for KAESER compressed air filters |
92.82 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[901563.0] KAESER Filter element E22KA](/web/image/product.template/16487/image_128/%5B901563.0%5D%20KAESER%20Filter%20element%20E22KA%20%20?unique=829548a)
|
Filter element for KAESER adsorption filter model F22KA |
305.83 € | |
