KAESER Filter Extra Modell F22KE G 3/4", ECO-DRAIN 31_ECO-Drain Ansicht oben

KAESER Filter Extra model F22KE G 3/4", ECO-DRAIN 31F

Volume flow: 2.20 m³/min | Residual aerosol content at outlet: < 0.1 mg/m³

831.81 € 831.8100000000001 EUR 831.81 € VAT Included

932.00 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

KAESER Kompressoren SE

KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919

Product no. :

102115.20341

Category :

Compressed Air Filters

Weight :

4.40 kg

Delivery area :

Deutschland

The KAESER coalescence filter Extra offers the same effective filtration as the KB model, but for even higher compressed air quality. It reliably removes solid and liquid aerosols as well as ultra-fine particles, providing optimum protection for your compressed air systems.

Volume flow (m³/min)	2,20
Compressed air inlet connection	G 3/4"
Differential pressure in new condition	0,05
Differential pressure at saturation	0,2
Residual aerosol content	0,01
Min. overpressure (bar)	2
Max. Overpressure (bar)	16
Weight (kg)	4,4
Width (mm)	241
Height (mm)	538
Depth (mm)	225
Condensate drain	ECO-DRAIN 31F
Degree of filtration	KE - Coalescence filter Extra

KAESER Betriebsanleitung Filter F6-F320 ED31F

Download

KAESER Prospekt Filter F6-F320

Download

Variants / Alternatives

	Price
[MDM500199782] KAESER Filter Extra model F22KE G 3/4", Ball valve Volume flow: 2.20 m³/min \| Residual aerosol content at outlet: < 0.1 mg/m³	525.68 €	Add to cart
[MDM500011397] KAESER Filter Extra model F22KE G 3/4", ECO-DRAIN 30 Volume flow: 2.20 m³/min \| Residual aerosol content at outlet: < 0.1 mg/m³	767.55 €	Add to cart

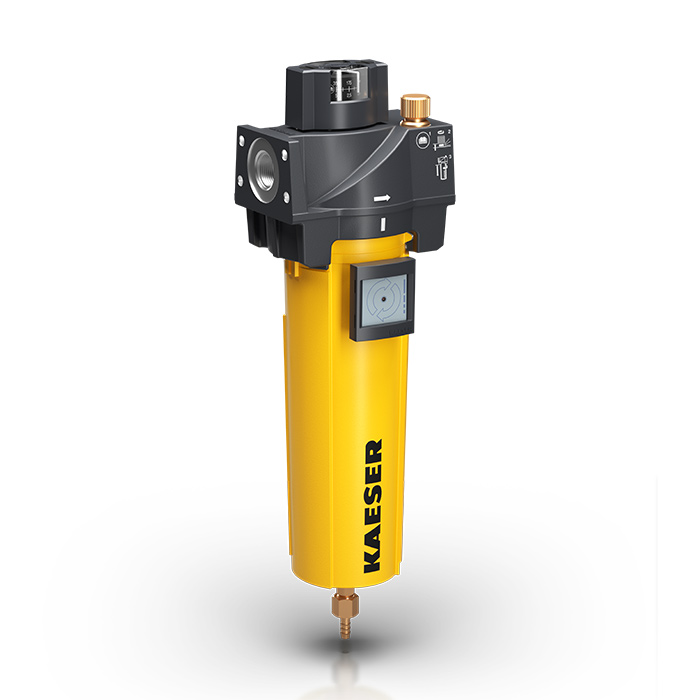

[102115.10311] KAESER Filter Extra model F22KE G 3/4", Float drain Volume flow: 2.20 m³/min \| Residual aerosol content at outlet: < 0.1 mg/m³	525.68 €	Add to cart

Accessoires and suitable extensions

Product		Price

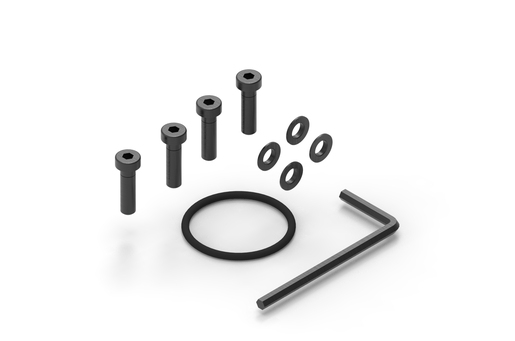

	[405342.0] KAESER mounting KIT connecting flange KF2.2 Assembly kit / connection kit for 2 KAESER compressed air filters	42.01 €	Add to cart

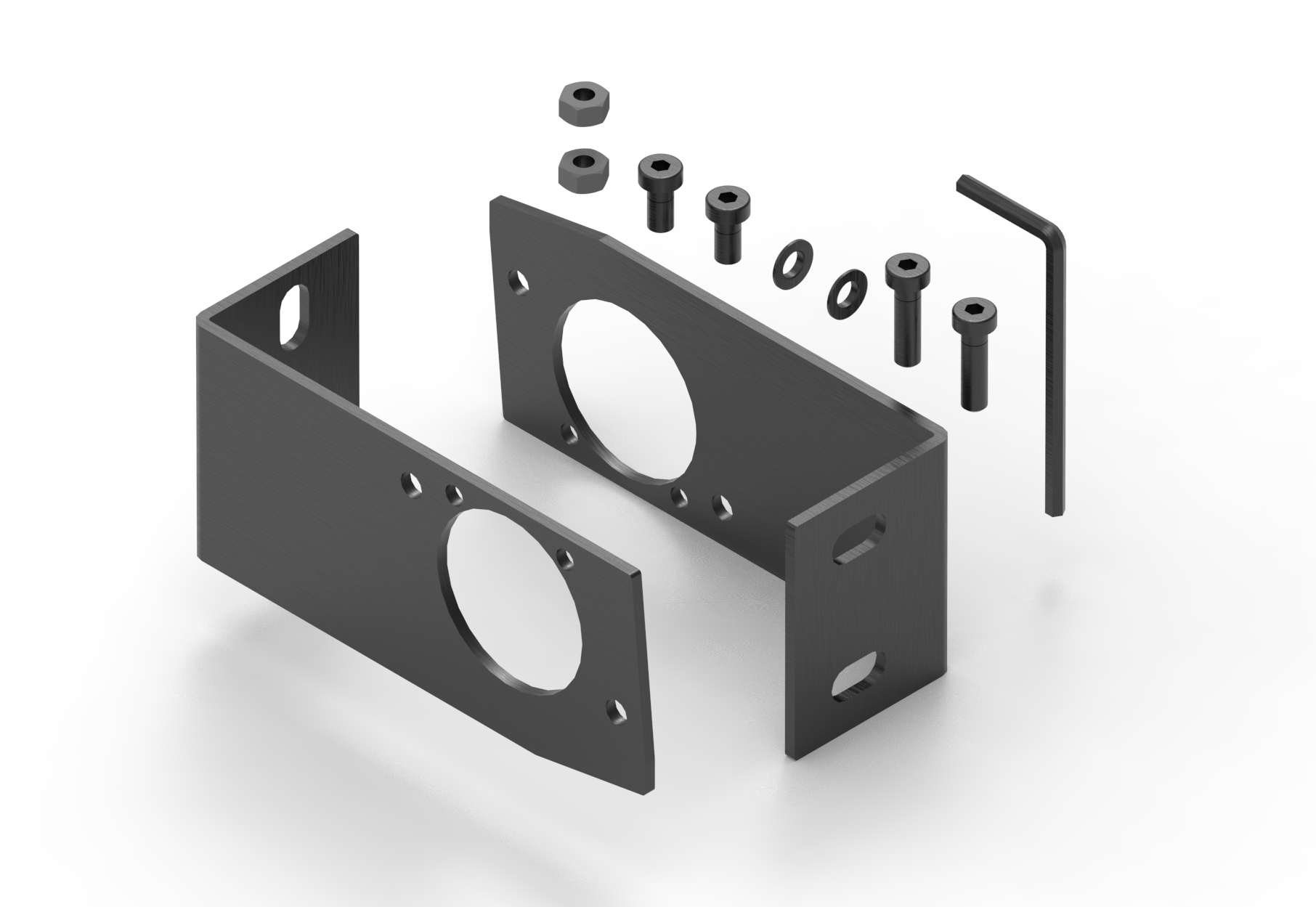

	[4E0520.0] KAESER KIT wall mount filter KF2.2 KIT Wall bracket for KAESER compressed air filters	92.82 €	Add to cart

Maintenance, wear and spare parts

Product		Price
	[8.2474.01540] KAESER ECO-DRAIN 31/31F service unit For condensate drain KAESER ECO-DRAIN 31/31F	185.64 €	Add to cart
	[901507.0] KAESER Filter element E110KB Filter element for KAESER Filter Basic model F110KB	597.38 €	Add to cart
