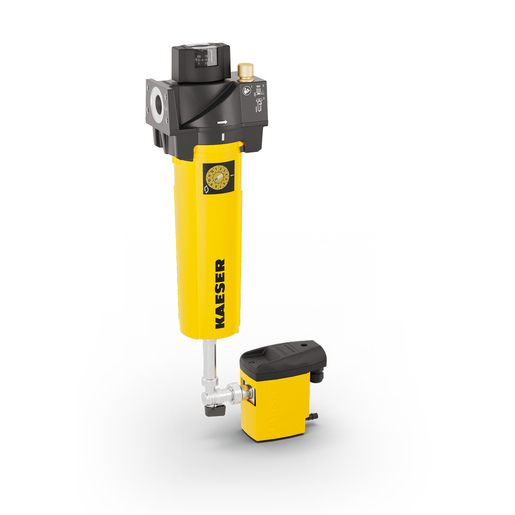

KAESER F142KC G 2 Cyclone Separator with ECO DRAIN 31 VARIO

KAESER F142KC G 2 Cyclone Separator – Efficient Condensate Separation up to 14.2 m³/min

The KAESER F142KC Cyclone Separator with a G 2 connection effectively removes condensate from the compressor’s compressed air outlet. As a robust water separator for compressed air, it ensures trouble-free operation of downstream dryers and filters—designed for flow rates up to 14.2 m³/min at 2–16 bar operating pressure and inlet temperatures of 3–66 °C.

The airflow in the KC-condensate separator was optimized by KAESER using state-of-the-art flow simulation and tested in accordance with ISO 12500-4. The maintenance-free centrifugal element achieves a peak separation efficiency of up to 99%—consistently stable across the entire performance range and with a pressure drop of less than 0.1 bar. The robust housing made of seawater-resistant aluminum with a passivation coating makes the F142KC a true workhorse. Its dimensions are 273 × 250 × 620 mm (W × D × H) and it weighs 8.5 kg.

Comes standard with the electronically level-controlled condensate drain ECO-DRAIN 31 VARIO with a test button and alarm contact. Options: wall mount kit, connection set, and silicone-free version. The ideal addition: a Refrigeration Dryers by KAESER – provides reliable protection against condensate reforming and pipe corrosion. For further treatment, we recommend a Compressed Air Filters.
