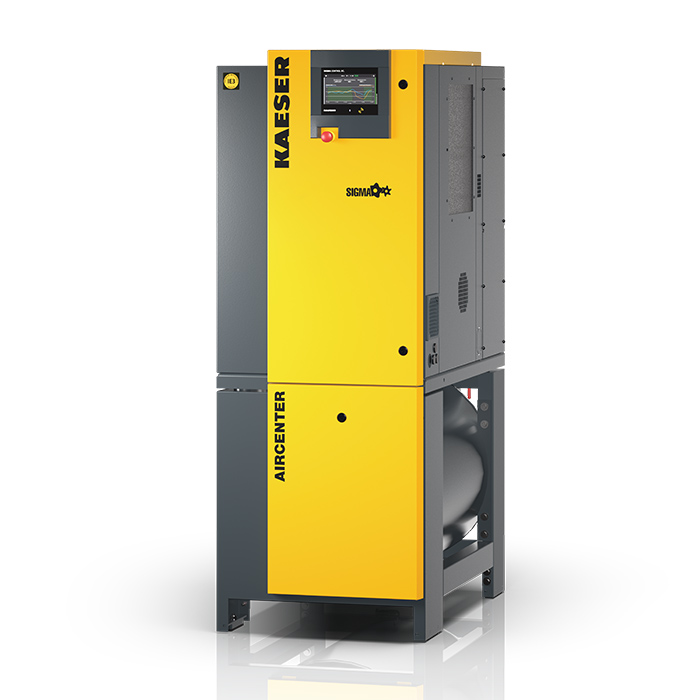

KAESER screw compressor Aircenter SM 10-8 SC3
Compact compressed air station with 0.94 m³/min at 7.5 bar (max. 8 bar) and 5.5 kW motor power - incl. refrigeration dryer, 270 l tank and new SC3 touch control.
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
KAESER AIRCENTER SM 10-8 - compact compressed air station with dryer and tank
The KAESER AIRCENTER SM Serie is a compact complete solution for professional use in workshops and industry. The SM 10-8 model combines a screw compressor, refrigerant dryer and compressed air receiver in a single unit - ideal when space is at a premium and a reliable compressed air supply is required.
Operation is via the modern Sigma Control 3 control unit with touchscreen and enables convenient monitoring of the most important operating states.
Suitable filters and oil/water separators for condensate treatment can be found in the accessories section. Further alternatives to this model can be found under Alternatives / Variants. Suitable compressor oil (fluid) as well as maintenance and spare parts can be found in the Spare parts section.
Technical data and documents are available for you to view and download under the respective tabs.
Note: This dryer series contains fluorinated greenhouse gas. All models contain the refrigerant R-513A (GWP 629).
| Max. Overpressure (bar) | 8 |
| Volume flow at overpressure (m³/min) | 0,94 |
| Rated power drive motor (kW) | 5,5 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Width (mm) | 630 |
| Depth (mm) | 1220 |
| Height (mm) | 1720 |
| Volume of compressed air tank (litres) | 270 |
| Compressed air connection | G 3/4 |
| Sound pressure level (dbA) | 62 |
| Refrigeration dryer power consumption (kW) | 0,49 |
| Refrigeration dryer pressure dew point (°C) | 3 |
| Refrigeration dryer pressure loss (bar) | 0,10 |
| Refrigerant | R-513A |
| Model range - Screw compressors | SM | 5.5 - 9 kW | Industry |
| Refrigeration dryer option | YES |
| Volume flow at overpressure (m³/min) | 0,94 |
| Max. Overpressure (bar) | 8 |
| Rated power drive motor (kW) | 5,5 |
| Drive motor efficiency class | IE 3 |
| Electrical supply | 400V / 3 / 50Hz |
| Drive motor protection class | IP 55 |
| Sound pressure level (dbA) | 62 |
| Max. usable warm air volume (m³/h) | 2100 |
| Compressed air connection | G 3/4 |
| Cooling fluid filling quantity (litres) | 4 |
| Width (mm) | 630 |
| Depth (mm) | 1220 |
| Height (mm) | 1720 |
| Weight (kg) | 420 |
| Full load current | 12 A |
| Fuse: Max current | 16A |
| Refrigeration dryer pressure loss (bar) | 0,10 |
| Refrigeration dryer pressure dew point (°C) | 3 |
| Refrigerant | R-513A |
| Refrigerant charge (kg) | 513 |
| Global warming potential GWP | 629 |
| CO2 equivalent (tonnes) | 0,25 |
| Volume of compressed air tank (litres) | 270 |
| Drive Motor Efficiency (%) | 89,2 |
| Drive Motor Speed (rpm) | 2950 |
| Electrical Power Consumption (kW) | 7,6 |
| Coolant Type | SIGMA FLUID MOL |
| Ambient Temperature (Max./Min.) | 45 °C / 3 °C |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

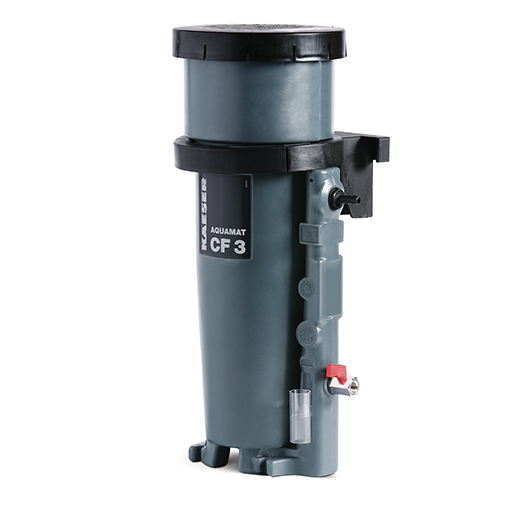

![[5.3390.0] KAESER Oil-water separator model Aquamat CF 3](/web/image/product.template/3688/image_128/%5B5.3390.0%5D%20KAESER%20Oil-water%20separator%20model%20Aquamat%20CF%203%20?unique=de7dd7f)
|
The KAESER AQUAMAT CF 3 enables legally compliant condensate treatment up to 1.9 m³/min. Save up to 90 % on disposal costs thanks to efficient oil-water separation directly at the point of origin.
|
455.18 € | |

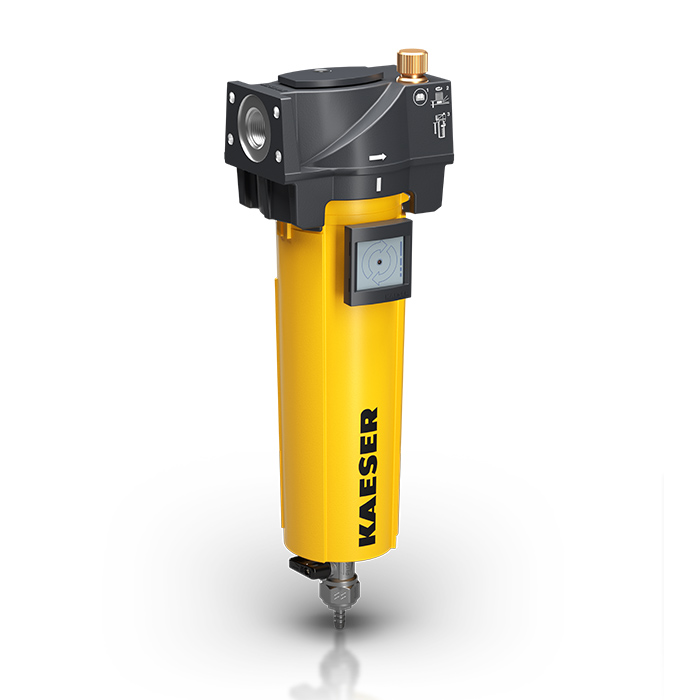

![[102104.10300] KAESER Filter adsorption model F9KA G 3/4"](/web/image/product.template/262259/image_128/%5B102104.10300%5D%20KAESER%20Filter%20adsorption%20model%20F9KA%20G%203-4%22?unique=172c0d0)
|
Volume flow: 0.90 m³/min |
374.85 € | |

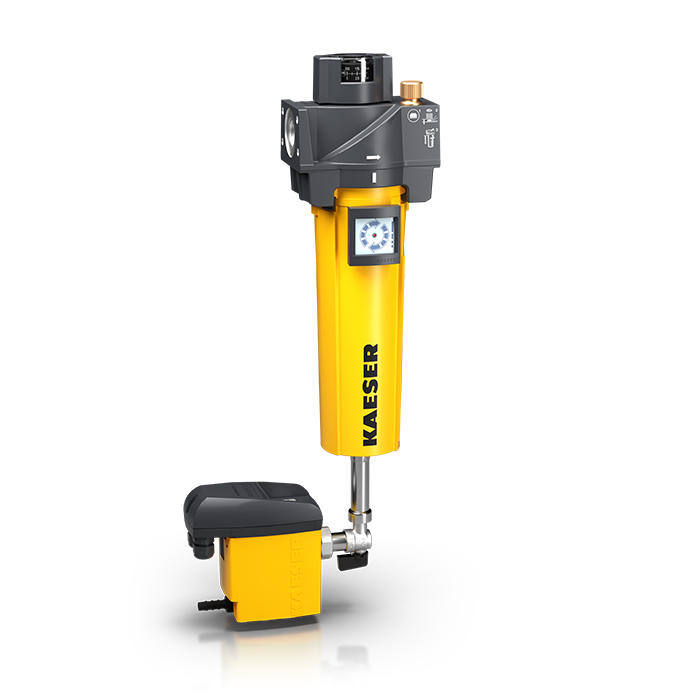

![[102107.20341] KAESER Extra filter model F9KE G 3/4", ECO-DRAIN 31](/web/image/product.template/262268/image_128/%5B102107.20341%5D%20KAESER%20Extra%20filter%20model%20F9KE%20G%203-4%22%2C%20ECO-DRAIN%2031?unique=3f88f88)
|
Volume flow: 0.90 m³/min | Residual aerosol content at outlet: < 0.1 mg/m³ |
680.98 € | |
![[3.5588.50140] KAESER Compressed air tank 250/11 st. CE/SPV](/web/image/product.template/102322/image_128/%5B3.5588.50140%5D%20KAESER%20Compressed%20air%20tank%20250-11%20st.%20CE-SPV?unique=3b3fe01)
|
Design: vertical | Max. Overpressure: 11 bar | volume compressed air tank: 250 ltr. | surface coating: galvanized |
1,330.42 € | |
![[8.1160.2] KAESER Hose Assembly G 3/4" (DN19x1100) PN45](/web/image/product.template/14217/image_128/%5B8.1160.2%5D%20KAESER%20Hose%20Assembly%20G%203-4%22%20%28DN19x1100%29%20PN45?unique=5a1059d)
|
|
112.81 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

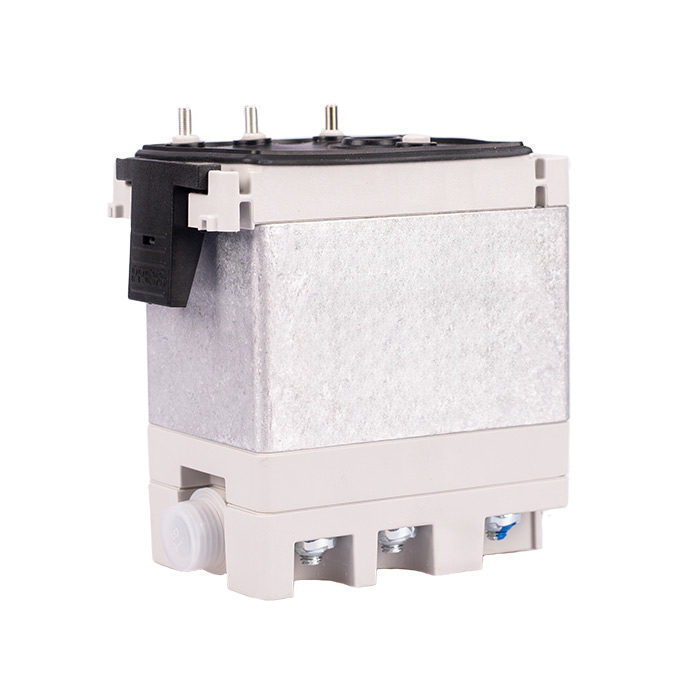

![[8.2474.01510] KAESER ECO-DRAIN 31/31F VARIO service unit](/web/image/product.template/16926/image_128/%5B8.2474.01510%5D%20KAESER%20ECO-DRAIN%2031-31F%20VARIO%20service%20unit?unique=829548a)
|
For condensate drain KAESER ECO-DRAIN 31/31F VARIO |
211.82 € | |

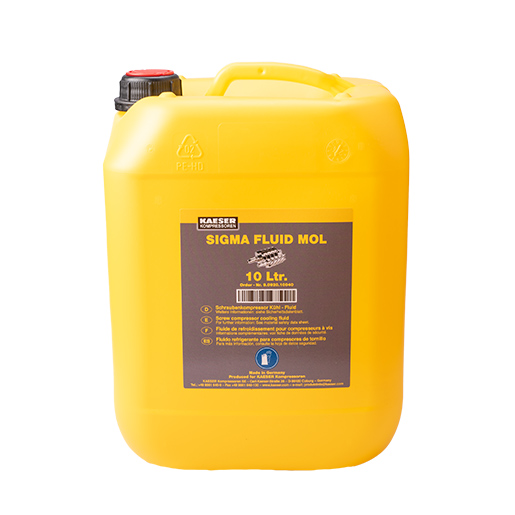

![[9.0920.10030] KAESER Sigma Fluid MOL, 5 ltr.](/web/image/product.template/16789/image_128/%5B9.0920.10030%5D%20KAESER%20Sigma%20Fluid%20MOL%2C%205%20ltr.?unique=c84a1e5)
|
Original KAESER compressor oil for screw compressors |
84.85 € | |
