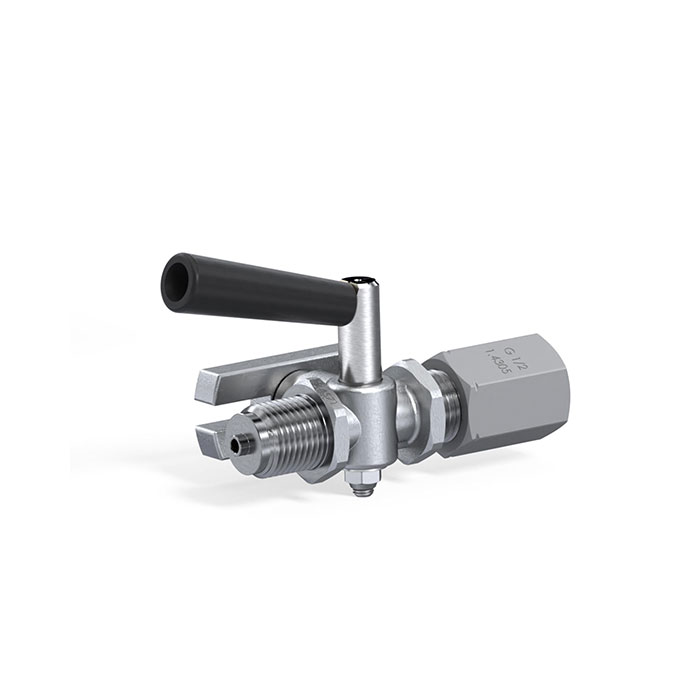

RIEGLER Block valve pressure gauge, taps - tension sleeve, G 1/2
Type number: 9021/ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
102658EAN :
4047322122962Category :
Accessories for Pressure GaugesWeight :
0.38 kgRIEGLER Pressure gauge stopcock made of stainless steel 1.4571, for pressure measurement, G 1/2 - type 9021/ES
The RIEGLER pressure gauge stopcock, spigot - clamping sleeve, ES 1.4571, G 1/2 adds protection and connection functions to pressure gauges. The housing is made of stainless steel 1.4571. Connection thread G 1/2 - suitable for common industry standards. Protection and functional extension for pressure gauges.
Field of application
Typical areas of application: Professional pressure gauge installation.
| Temperature range max. | 50 °C |
| Housing | Stainless steel 1.4571 |
| Area of application | for all pressure gauges with flat sealing ring to DIN 16258 |
| Hand lever | Plastic |
| Thread | G 1/2 |
| SW | 27 mm |
| PN | 25 bar |
| Regulation | DIN 16262-A |
| Execution | Spigot / clamping sleeve |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Clamping sleeve | Stainless steel 1.4305 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[102657] RIEGLER Block valve pressure gauge, taps - tension sleeve, G 1/2](/web/image/product.template/170629/image_128/%5B102657%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20taps%20-%20tension%20sleeve%2C%20G%201-2?unique=a9565ac)
|
Type number: 9021/M |
17.74 € | |
![[102659] RIEGLER Block valve pressure gauge, taps - tension sleeve, G 1/2](/web/image/product.template/170631/image_128/%5B102659%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20taps%20-%20tension%20sleeve%2C%20G%201-2?unique=2139fc8)
|
Type number: 9022/M |
26.50 € | |
![[102660] RIEGLER Block valve pressure gauge, taps - tension sleeve, G 1/2](/web/image/product.template/170632/image_128/%5B102660%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20taps%20-%20tension%20sleeve%2C%20G%201-2?unique=d5f5b1c)
|
Type number: 9022/ES |
117.25 € | |
![[102661] RIEGLER Block valve pressure gauge, taps - tension sleeve, G 1/2](/web/image/product.template/170633/image_128/%5B102661%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20taps%20-%20tension%20sleeve%2C%20G%201-2?unique=2ca45ee)
|
Type number: 9023/M |
29.12 € | |

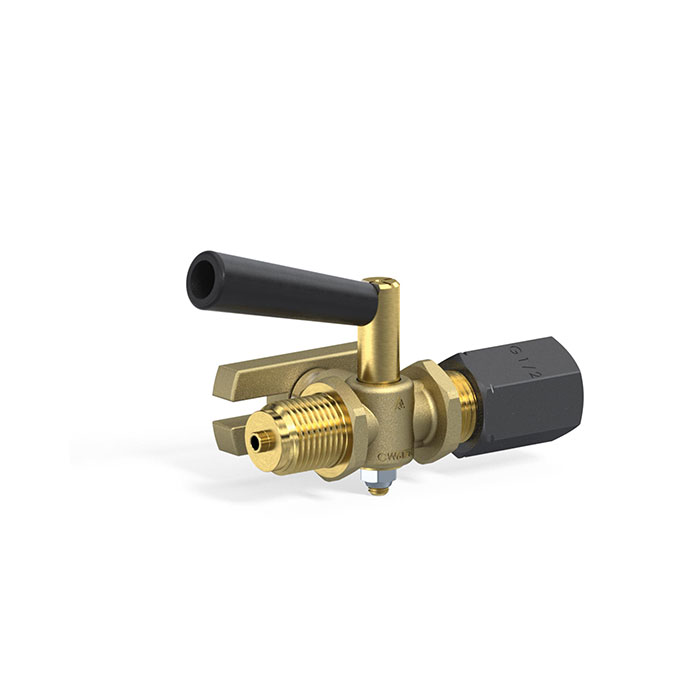

![[102656] RIEGLER Block valve pressure gauge, taps - tension sleeve, G 1/4](/web/image/product.template/170628/image_128/%5B102656%5D%20RIEGLER%20Block%20valve%20pressure%20gauge%2C%20taps%20-%20tension%20sleeve%2C%20G%201-4?unique=56db2de)
|
