RIEGLER Blocking valve pressure gauge, taps - tension sleeve, G 1/2
Type number: 9016/S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
102663EAN :
4047322122900Category :
Accessories for Pressure GaugesWeight :
0.53 kgRIEGLER Mano shut-off valve made of burnished steel, for pressure measurement, G 1/2 - Type 9016/S
The RIEGLER Mano shut-off valve, spigot/clamping sleeve, DIN16270, burnished steel, G 1/2 adds protection and connection functions to pressure gauges. The housing is made of burnished steel with PTFE seals. The operating temperature is between -10 °C and 120 °C. G 1/2 connection thread - suitable for common industry standards. Protection and functional extension for pressure gauges.
Field of application
Typical areas of application: Professional pressure gauge installation.
| Housing | Burnished steel |
| Sealing material | PTFE |
| Handwheel | Plastic |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 120 °C |
| Thread | G 1/2 |
| SW | 27 mm |
| PN | 400 bar |
| Execution | Spigot / clamping sleeve |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Valve spindle | Stainless steel |
| Valve cone | Stainless steel |
| Union nut | Steel |
| Clamping sleeve | Steel |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

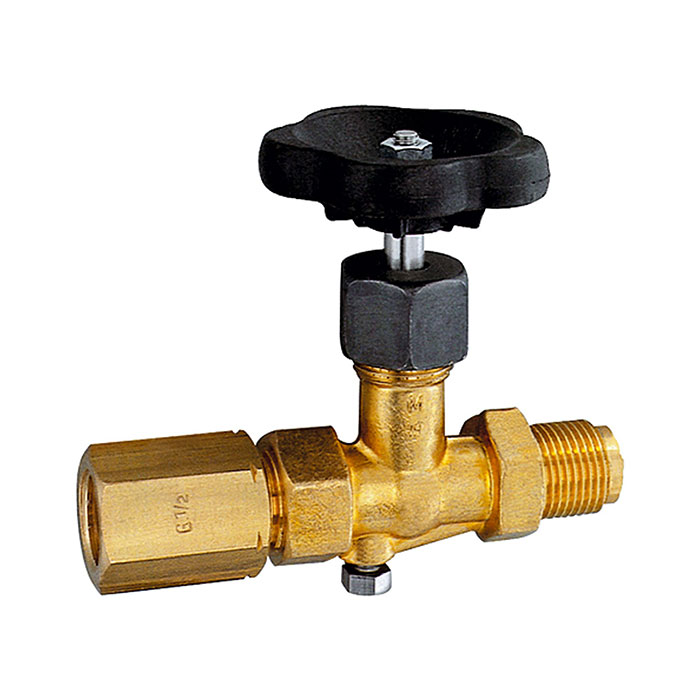

![[102662] RIEGLER Blocking valve pressure gauge, taps-tension sleeve, brass, G 1/2](/web/image/product.template/170634/image_128/%5B102662%5D%20RIEGLER%20Blocking%20valve%20pressure%20gauge%2C%20taps-tension%20sleeve%2C%20brass%2C%20G%201-2?unique=e773814)
|
