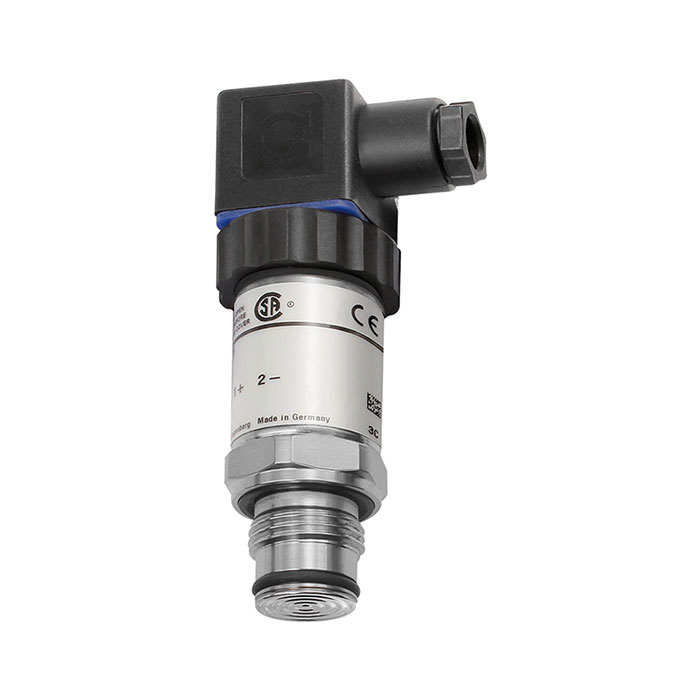

RIEGLER Electr. pressure transducer, 0 - 4 bar, G 1/2, CrNi steel 1.4571
Type number: 896.4
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Electrical pressure transmitter made of stainless steel 1.4571, G 1/2 - Type 896.4
The RIEGLER electrical pressure transducer, 0-4.0 bar, G 1/2, stainless steel 1.4571, 0.2% converts pressure into an electrical signal (e.g. 4-20 mA). The housing is made of stainless steel 1.4571. The permissible medium temperature is between -30 °C and 100 °C. Connection thread G 1/2 - suitable for common industry standards. Operating voltage DC 10 €¦ 30 V, protection class IP 65 according to EN 60529. Seamless integration into electronic control systems.
Field of application
Typical areas of application: Electronic control systems and process control systems.
| Housing | Stainless steel 1.4571 |
| Protection class | IP 65 according to EN 60529 |
| Electrical connection | with angled plug to DIN EN 175301-803 A |
| Operating voltage | DC 10 €¦ 30 V |
| Medium temperature min. | -30 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 80 °C |
| Type | S-11 |
| Wetted parts | Stainless steel 1.4571 |
| Non-linearity | 0.2% of the margin |
| Output signal | 4 - 20 mA, 2-wire |
| Thread | G 1/2 |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 4 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
