RIEGLER Electr. pressure transducer, 0 - 25 bar, G 1/2, CrNi steel 1.4571
Type number: 896.25
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Electrical pressure transmitter, viscous media, media containing solids, non-linearity 0.2%, measuring range 0-25.0 bar, G 1/2, stainless steel 1.4571
| Housing | Stainless steel 1.4571 |
| Protection class | IP 65 according to EN 60529 |
| Electrical connection | with angled plug to DIN EN 175301-803 A |
| Operating voltage | DC 10 €¦ 30 V |
| Medium temperature min. | -30 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 80 °C |
| Type | S-11 |
| Wetted parts | Stainless steel 1.4571 |
| Non-linearity | 0.2% of the margin |
| Output signal | 4 - 20 mA, 2-wire |
| Thread | G 1/2 |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 25 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[102709] RIEGLER Electr. pressure transducer, 0 - 0.25 bar, G 1, CrNi steel 1.4571](/web/image/product.template/170681/image_128/%5B102709%5D%20RIEGLER%20Electr.%20pressure%20transducer%2C%200%20-%200.25%20bar%2C%20G%201%2C%20CrNi%20steel%201.4571?unique=4065b7e)
|
Type number: 896.02 |
547.69 € | |
![[102710] RIEGLER Electr. pressure transducer, 0 - 0.4 bar, G 1, CrNi steel 1.4571](/web/image/product.template/170682/image_128/%5B102710%5D%20RIEGLER%20Electr.%20pressure%20transducer%2C%200%20-%200.4%20bar%2C%20G%201%2C%20CrNi%20steel%201.4571?unique=21dea42)
|
Type number: 896.04 |
547.69 € | |

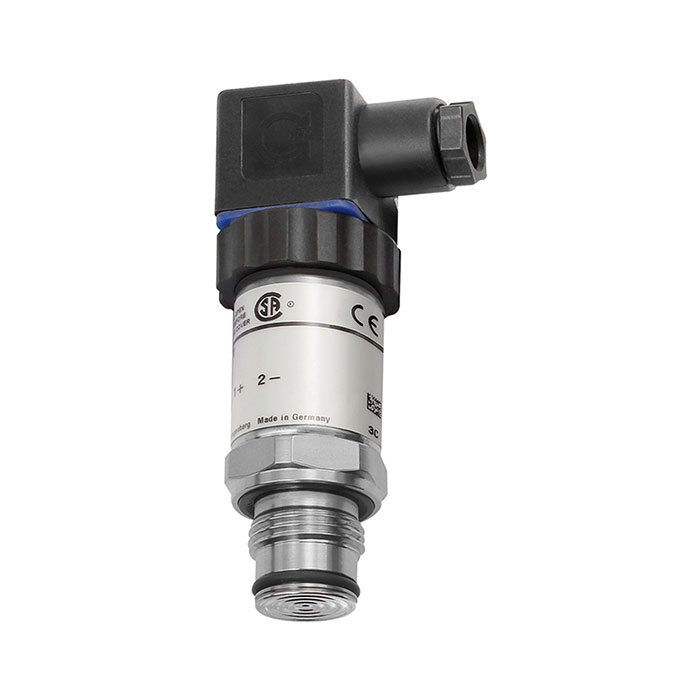

![[102719] RIEGLER Electr. pressure transducer, 0-100 bar, G 1/2, CrNi steel 1.4571](/web/image/product.template/170691/image_128/%5B102719%5D%20RIEGLER%20Electr.%20pressure%20transducer%2C%200-100%20bar%2C%20G%201-2%2C%20CrNi%20steel%201.4571?unique=b96ef27)
|
Type number: 896.100 |
547.69 € | |
![[102714] RIEGLER Electr. pressure transducer, 0 - 10 bar, G 1/2, CrNi steel 1.4571](/web/image/product.template/170686/image_128/%5B102714%5D%20RIEGLER%20Electr.%20pressure%20transducer%2C%200%20-%2010%20bar%2C%20G%201-2%2C%20CrNi%20steel%201.4571?unique=c4e548d)
|
Type number: 896.10 |
547.69 € | |
![[102720] RIEGLER Electr. pressure transducer, 0-160 bar, G 1/2, CrNi steel 1.4571](/web/image/product.template/170692/image_128/%5B102720%5D%20RIEGLER%20Electr.%20pressure%20transducer%2C%200-160%20bar%2C%20G%201-2%2C%20CrNi%20steel%201.4571?unique=35e3ffc)
|
Type number: 896.160 |
547.69 € | |
![[102715] RIEGLER Electr. pressure transducer, 0 - 16 bar, G 1/2, CrNi steel 1.4571](/web/image/product.template/170687/image_128/%5B102715%5D%20RIEGLER%20Electr.%20pressure%20transducer%2C%200%20-%2016%20bar%2C%20G%201-2%2C%20CrNi%20steel%201.4571?unique=abdf55b)
|
Type number: 896.16 |
547.69 € | |
![[102711] RIEGLER Electr. pressure transducer, 0 - 1 bar, G 1, CrNi steel 1.4571](/web/image/product.template/170683/image_128/%5B102711%5D%20RIEGLER%20Electr.%20pressure%20transducer%2C%200%20-%201%20bar%2C%20G%201%2C%20CrNi%20steel%201.4571?unique=1e1a4a2)
|
Type number: 896.1 |
547.69 € | |
![[102721] RIEGLER Electr. pressure transducer, 0-250 bar, G 1/2, CrNi steel 1.4571](/web/image/product.template/170693/image_128/%5B102721%5D%20RIEGLER%20Electr.%20pressure%20transducer%2C%200-250%20bar%2C%20G%201-2%2C%20CrNi%20steel%201.4571?unique=dfa116d)
|
Type number: 896.250 |
547.69 € | |
![[102722] RIEGLER Electr. pressure transducer, 0-400 bar, G 1/2, CrNi steel 1.4571](/web/image/product.template/170694/image_128/%5B102722%5D%20RIEGLER%20Electr.%20pressure%20transducer%2C%200-400%20bar%2C%20G%201-2%2C%20CrNi%20steel%201.4571?unique=17e4970)
|
Type number: 896.400 |
547.69 € | |
![[102717] RIEGLER Electr. pressure transducer, 0 - 40 bar, G 1/2, CrNi steel 1.4571](/web/image/product.template/170689/image_128/%5B102717%5D%20RIEGLER%20Electr.%20pressure%20transducer%2C%200%20-%2040%20bar%2C%20G%201-2%2C%20CrNi%20steel%201.4571?unique=6776255)
|
Type number: 896.40 |
547.69 € | |
![[102712] RIEGLER Electr. pressure transducer, 0 - 4 bar, G 1/2, CrNi steel 1.4571](/web/image/product.template/170684/image_128/%5B102712%5D%20RIEGLER%20Electr.%20pressure%20transducer%2C%200%20-%204%20bar%2C%20G%201-2%2C%20CrNi%20steel%201.4571?unique=cb0f8fa)
|
Type number: 896.4 |
547.69 € | |
![[102723] RIEGLER Electr. pressure transducer, 0-600 bar, G 1/2, CrNi steel 1.4571](/web/image/product.template/170695/image_128/%5B102723%5D%20RIEGLER%20Electr.%20pressure%20transducer%2C%200-600%20bar%2C%20G%201-2%2C%20CrNi%20steel%201.4571?unique=897078b)
|
Type number: 896.600 |
547.69 € | |
![[102718] RIEGLER Electr. pressure transducer, 0 - 60 bar, G 1/2, CrNi steel 1.4571](/web/image/product.template/170690/image_128/%5B102718%5D%20RIEGLER%20Electr.%20pressure%20transducer%2C%200%20-%2060%20bar%2C%20G%201-2%2C%20CrNi%20steel%201.4571?unique=d807b26)
|
Type number: 896.60 |
547.69 € | |
![[102713] RIEGLER Electr. pressure transducer, 0 - 6 bar, G 1/2, CrNi steel 1.4571](/web/image/product.template/170685/image_128/%5B102713%5D%20RIEGLER%20Electr.%20pressure%20transducer%2C%200%20-%206%20bar%2C%20G%201-2%2C%20CrNi%20steel%201.4571?unique=ab93fa4)
|
Type number: 896.6 |
547.69 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

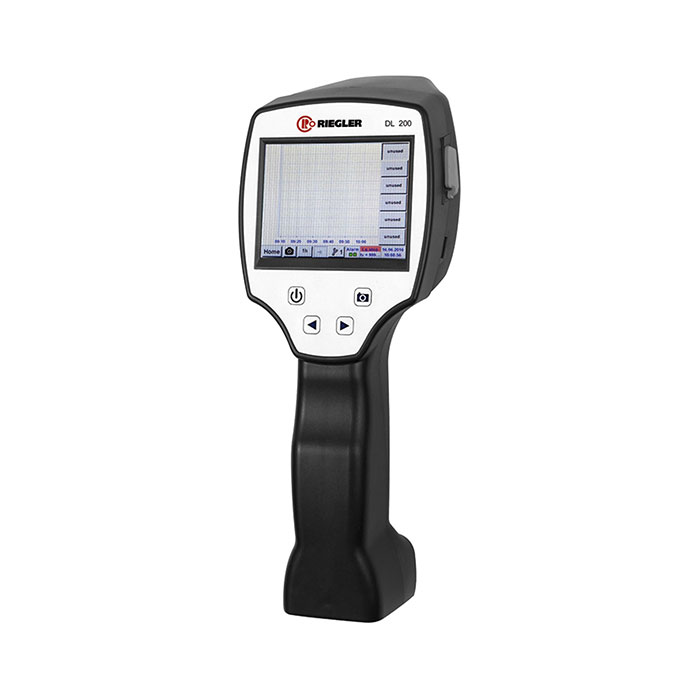

![[135978] RIEGLER Hand-held measurement unit for industrial applications](/web/image/product.template/206326/image_128/%5B135978%5D%20RIEGLER%20Hand-held%20measurement%20unit%20for%20industrial%20applications?unique=f0a0c78)
|
