RIEGLER 3/2-way solenoid valve brass, NC, 230/50 V AC, 50 Hz, FKM, G 1/8
Type number: 107.11
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3/2-way valve made of brass, for industrial systems, max. 15 bar - Type 107.11
The RIEGLER 3/2-way MV, MS, NC, direct acting, 230/50 V AC, 50 Hz, G 1/8, PN 0-15 bar switches compressed air and media flows electrically controlled via a solenoid coil. The housing is made of brass with FPM seals. The operating pressure range is 0 bar to 15 bar. The permissible medium temperature is between -10 °C and 100 °C. Connection thread G 1/8 - suitable for common industry standards. Operating voltage 230/50 V AC, 50 Hz, protection class IP 65 (when using the cable plug). Fast, precise switching for automated processes.
Field of application
Typical areas of application: Automation, mechanical engineering and process technology.
| Housing | Brass |
| Sealing material | FPM |
| Protection class | IP 65 (when using the cable plug) |
| Electrical connection | Cable plug, 180° rotatable, PG7 to 43650 |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 15 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Area of application | Compressed air and neutral, non-toxic gases, water, oil |
| Interior parts | Stainless steel |
| Thread | G 1/8 |
| DN | 45323 |
| Function | Interchangeable magnetic heads direct/alternating current |
| Tension | 230/50 V AC, 50 Hz |
| A | 58 mm |
| B | 33 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | MAX |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

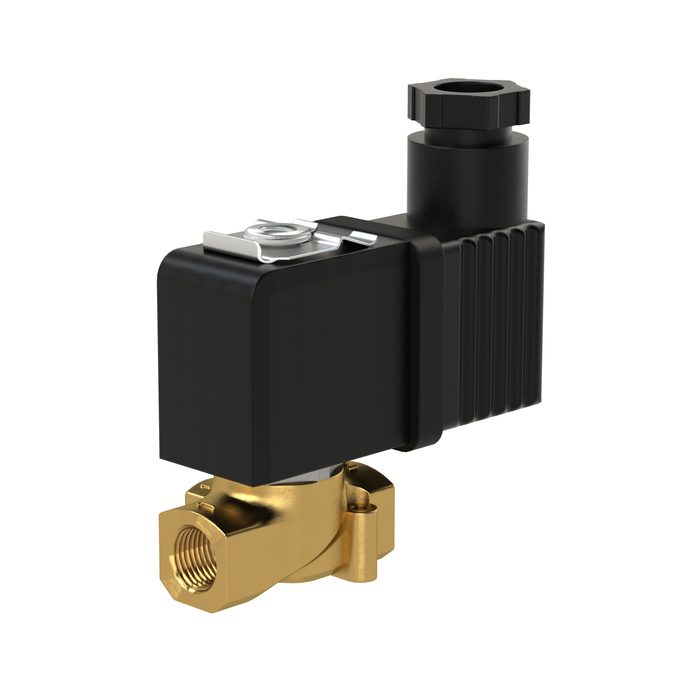

![[145428] RIEGLER 3/2-way MV, MS, NC, directg, 230V AC, 50-60Hz, G 1/8, PN 0-15bar](/web/image/product.template/283951/image_128/%5B145428%5D%20RIEGLER%203-2-way%20MV%2C%20MS%2C%20NC%2C%20directg%2C%20230V%20AC%2C%2050-60Hz%2C%20G%201-8%2C%20PN%200-15bar?unique=6c0342d)
|
Type number: 107.11-01 |
68.46 € | |
