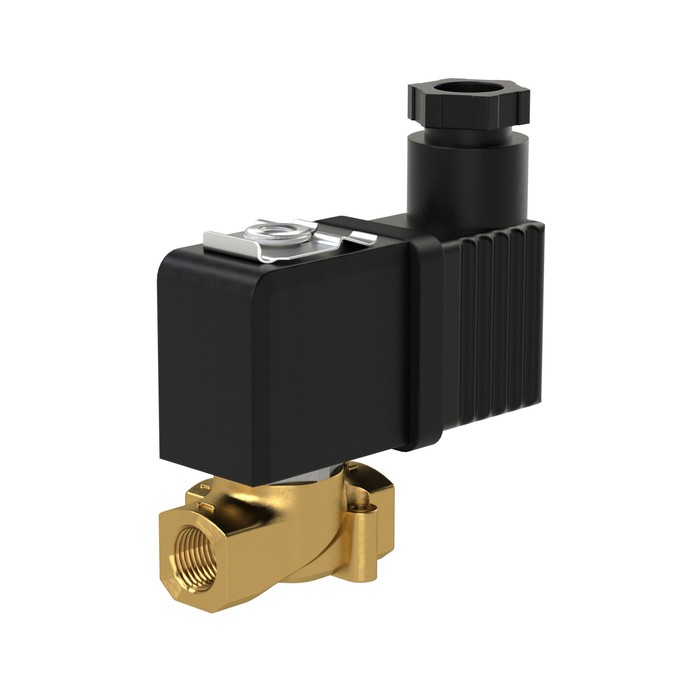

RIEGLER 3/2-way MV, MS, NC, directg, 230V AC, 50-60Hz, G 1/8, PN 0-15bar
Type number: 107.11-01
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3/2-way brass MV, for industrial systems, max. 15 bar - Type 107.11-01
The RIEGLER 3/2-way MV, MS, NC, directg, 230V AC, 50-60Hz, G 1/8, PN 0-15bar switches compressed air and media flows electrically controlled via a solenoid coil. The housing is made of brass with FPM seals. The operating pressure range is 0 bar to 15 bar. The permissible medium temperature is between 0 °C and 130 °C. Connection thread G 1/8 (DIN EN ISO 228-1) - suitable for common industry standards. Operating voltage 230 V AC, 50 - 60 Hz, protection class IP 67 (when using the cable plug). Fast, precise switching for automated processes.
Field of application
Typical areas of application: Automation, mechanical engineering and process technology.
| Flow 1 | 0,83 l/min |
| A | 61.9 mm |
| Execution | directly controlled |
| B | 33.2 mm |
| Protection class | IP 67 (when using the cable plug) |
| Manual override | yes |
| Electr. version | IEC 335 |
| Thread standard | DIN EN ISO 228-1 |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | 0 °C |
| Operating pressure min. | 0 bar |
| Medium temperature max. | 130 °C |
| Max. operating pressure | 15 bar |
| Tension | 230 V AC, 50 - 60 Hz |
| Ambient temperature max. | 60 °C |
| Area of application | Compressed air and neutral, non-toxic gases, water, oil |
| Interior parts | Stainless steel |
| Sealing material | FPM |
| Thread | G 1/8 |
| Electrical connection | Cable plug, 180° rotatable, PG7 to 43650 |
| Class name | MAX |
| Valve seat | Brass |
| Housing | Brass |
| Function | normally closed (NC) |
