TIVAL Pressure switch FF 4-30 AC AAG 4 - 30 bar 1/4" stainless steel
max. operating pressure 30 bar
Upper switching point: adjustable 4 - 30 bar
Lower switching point: adjustable 1 - 26.4 bar
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology
FF4-30 AC AAG ATEX pressure switch 4 - 30 bar - chemical, up to +200 °C | Art. 1030132
The TIVAL ATEX high temperature switch is ATEX-certified according to EN 60079 and offers maximum safety for explosive atmospheres. The upper switching point is adjustable from 4 ... 30, the lower switching point is adjustable from 1 ... 26.4. Connection: G 1/4" stainless steel - robust design in matching material variant. Application range: High temperature & explosive atmospheres - with full conformity documentation. max. operating pressure: 30 bar, medium temperature: up to +200°C. Standards & approvals: ATEX EN 60079, II 2G Ex ia IIC T6 Gb. All settings are clearly visible through the transparent polycarbonate cover. Chokes and cable glands are available as accessories.
| Upper switching point adjustable (bar) | 4 ... 30 |
| Lower switching point adjustable (bar) | 1 ... 26,4 |
| small pressure difference (bar) | 1,8 3,6 |
| Max. Operating pressure (bar) | 30 |
| Max. Test pressure (bar) | 42 |
| Factory setting (bar) | 16 / 20 |
| Pressure connection | G 1/4" stainless steel |
| Model range - Pressure switch | FF 4 / AAG |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

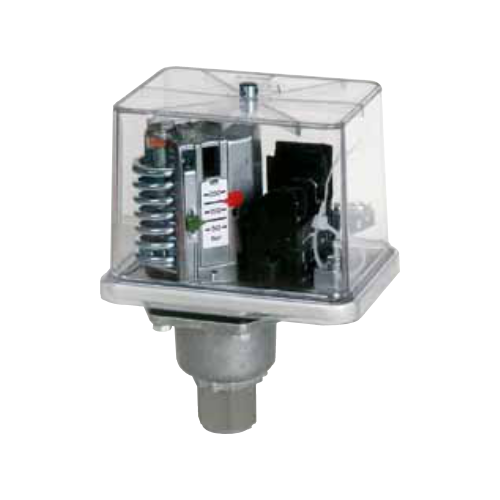

![[1010066] TIVAL Pressure switch FF 4-30 AAG 4 - 30 bar 1/4" stainless steel](/web/image/product.template/149332/image_128/%5B1010066%5D%20TIVAL%20Pressure%20switch%20FF%204-30%20AAG%204%20-%2030%20bar%201-4%22%20stainless%20steel?unique=23201e0)
|
