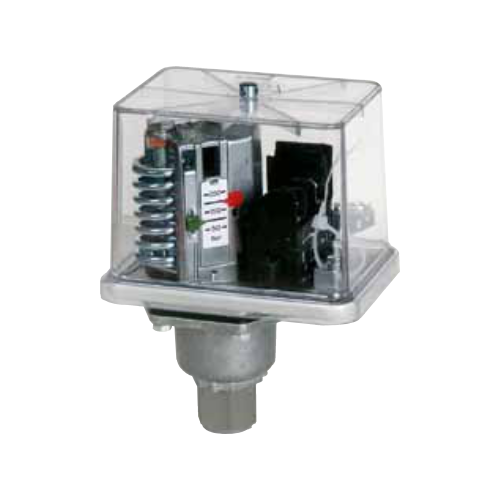

TIVAL Pressure switch FF 4-30 AAG 4 - 30 bar 1/4" stainless steel
max. operating pressure 30 bar
Upper switching point: adjustable 4 - 30 bar
Lower switching point: adjustable 1 - 26.4 bar
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology
FF4-30 AAG pressure switch 4 - 30 bar - stainless steel, up to +200 °C | Art. 1010066
The TIVAL Pressure switch with stainless steel diaphragm bellows combines reliability and accuracy for industrial pressure monitoring. The upper switching point is adjustable from 4 ... 30, the lower switching point is adjustable from 1 ... 26.4. Connection: G 1/4" stainless steel - robust design in matching material variant. Application range: Demineralized water - with proven long-term stability. max. operating pressure: 30 bar, medium temperature: up to +200°C. Standards & approvals: VDE 0660, IEC 337-1, IEC 553-1. All settings are clearly visible through the transparent polycarbonate cover. Chokes and cable glands are available as accessories.
| Upper switching point adjustable (bar) | 4 ... 30 |
| Lower switching point adjustable (bar) | 1 ... 26,4 |
| small pressure difference (bar) | 1,8 3,6 |
| Max. Operating pressure (bar) | 30 |
| Max. Test pressure (bar) | 42 |
| Factory setting (bar) | 16 / 20 |
| Pressure connection | G 1/4" stainless steel |
| Model range - Pressure switch | FF 4 / AAG |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[1030132] TIVAL Pressure switch FF 4-30 AC AAG 4 - 30 bar 1/4" stainless steel](/web/image/product.template/149379/image_128/%5B1030132%5D%20TIVAL%20Pressure%20switch%20FF%204-30%20AC%20AAG%204%20-%2030%20bar%201-4%22%20stainless%20steel?unique=6fb56fd)
|
max. operating pressure 30 bar |
341.96 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[1011001] TIVAL Cover for Pressure switch FF 4](/web/image/product.template/149371/image_128/%5B1011001%5D%20TIVAL%20Cover%20for%20Pressure%20switch%20FF%204?unique=4f73d7f)
|
TIVAL hood FF4 |
29.87 € | |
![[1011002] TIVAL Throttle for FF4-2 up to 32 bar](/web/image/product.template/149318/image_128/%5B1011002%5D%20TIVAL%20Throttle%20for%20FF4-2%20up%20to%2032%20bar?unique=4f73d7f)
|
TIVAL throttle FF4-2....32 |
4.19 € | |
![[1011003] TIVAL Throttle for series FF4-60 up to 250](/web/image/product.template/149367/image_128/%5B1011003%5D%20TIVAL%20Throttle%20for%20series%20FF4-60%20up%20to%20250?unique=4f73d7f)
|
TIVAL throttle FF4-12....250 |
10.35 € | |
![[1011004] TIVAL Fitting FF 4 490 M 20 13](/web/image/product.template/149369/image_128/%5B1011004%5D%20TIVAL%20Fitting%20FF%204%20490%20M%2020%2013?unique=4f73d7f)
|
TIVAL screw connection M 20 for protection class IP 65 |
5.00 € | |
![[1011007] TIVAL Nut FF 4 490 M 20](/web/image/product.template/149370/image_128/%5B1011007%5D%20TIVAL%20Nut%20FF%204%20490%20M%2020?unique=4f73d7f)
|
TIVAL nut M 20 for protection class IP 65 |
2.26 € | |
![[1071004] TIVAL Manometer screw connection H 124 - 114 steel, G 3/8" - G 1/2"](/web/image/product.template/149368/image_128/%5B1071004%5D%20TIVAL%20Manometer%20screw%20connection%20H%20124%20-%20114%20steel%2C%20G%203-8%22%20-%20G%201-2%22?unique=4f73d7f)
|
TIVAL screw connection H 124-114 |
25.47 € | |
