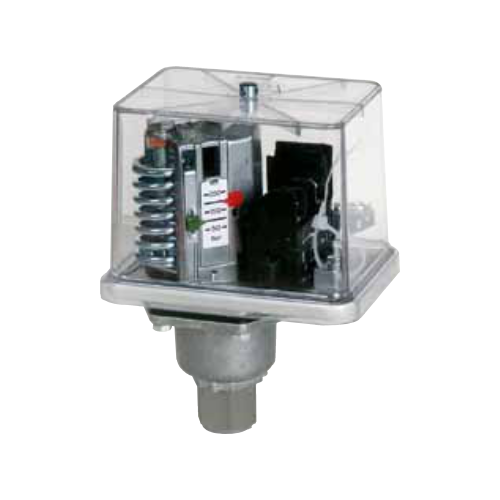

TIVAL Pressure switch FF 4-120 PAH 16 - 120 bar 3/8" stainless steel
max. operating pressure 200 bar
Upper switching point: adjustable 16 - 120 bar
Lower switching point: adjustable 8 - 104 bar
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology
FF4-120 PAH high pressure switch 16 - 120 bar - plastic piston & throttle | Art. 1010079
The TIVAL High pressure switch with plastic piston with throttle combines reliability and accuracy for industrial pressure monitoring. The upper switching point is adjustable from 16 ... 120, the lower switching point is adjustable from 8 ... 104. Connection: G 3/8" stainless steel - robust design in matching material variant. Application range: High-pressure applications - with proven long-term stability. max. operating pressure: 200 bar, medium temperature: up to +70°C. Standards & approvals: VDE 0660, IEC 337-1, IEC 553-1. All settings are clearly visible via the transparent polycarbonate cover. Chokes and cable glands are available as accessories.
| Upper switching point adjustable (bar) | 16 ... 120 |
| Lower switching point adjustable (bar) | 8 ... 104 |
| small pressure difference (bar) | 8 16 |
| Max. Operating pressure (bar) | 200 |
| Max. Test pressure (bar) | 240 |
| Factory setting (bar) | 20 / 80 |
| Pressure connection | G 3/8" stainless steel |
| Model range - Pressure switch | FF 4 / PAH |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

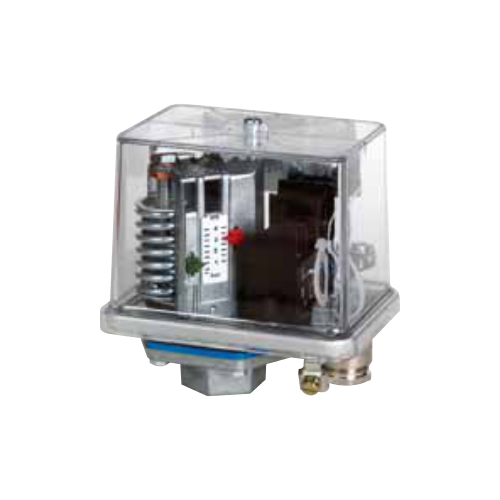

![[1030139] TIVAL Pressure switch FF 4-120 AB PAH 16 - 120 bar 3/8" zinc](/web/image/product.template/149374/image_128/%5B1030139%5D%20TIVAL%20Pressure%20switch%20FF%204-120%20AB%20PAH%2016%20-%20120%20bar%203-8%22%20zinc?unique=7261014)
|
max. operating pressure 200 bar |
431.83 € | |
![[1030149] TIVAL Pressure switch FF 4-120 AC PAH 16 - 120 bar 3/8" silumin](/web/image/product.template/149377/image_128/%5B1030149%5D%20TIVAL%20Pressure%20switch%20FF%204-120%20AC%20PAH%2016%20-%20120%20bar%203-8%22%20silumin?unique=b46fc4d)
|
max. operating pressure 200 bar |
476.19 € | |

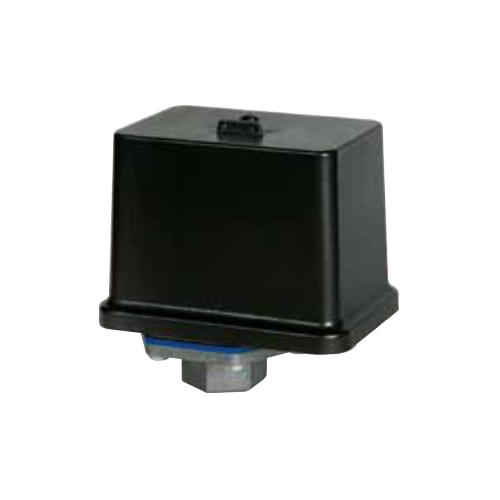

![[1030150] TIVAL Pressure switch FF 4-120 AC PAH 30 - 250 bar 3/8" silumin](/web/image/product.template/149378/image_128/%5B1030150%5D%20TIVAL%20Pressure%20switch%20FF%204-120%20AC%20PAH%2030%20-%20250%20bar%203-8%22%20silumin?unique=e8a7274)
|
