RIEGLER Ball valve, lockable, without venting hole, Rp 3/4
Type number: 320.05
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

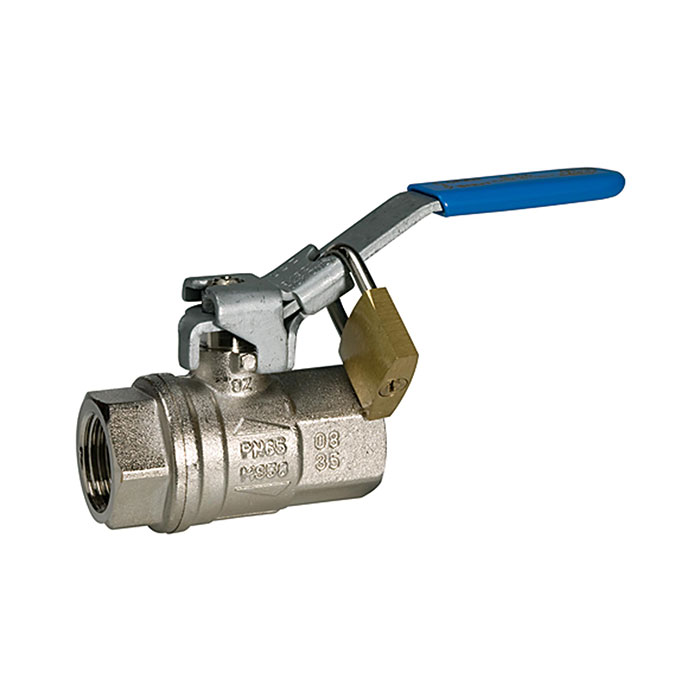

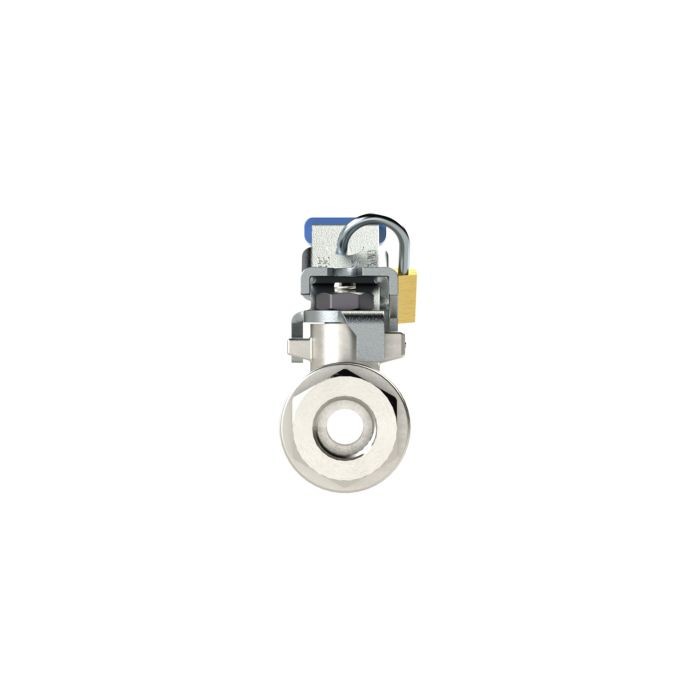

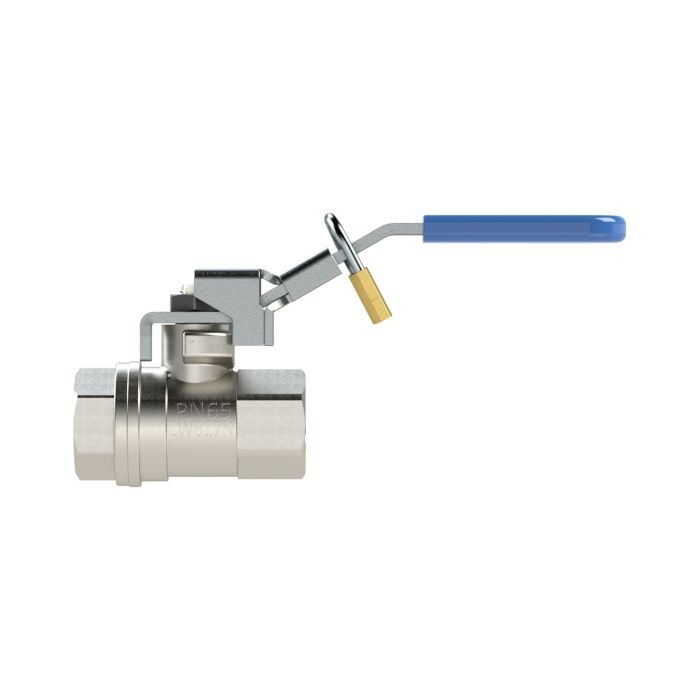

RIEGLER Safety ball valve lockable without vent. made of nickel-plated brass - Type 320.05
The RIEGLER safety ball valve lockable without venting, MS vern. Rp 3/4 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of nickel-plated brass. The operating temperature is between -40 °C and 170 °C. Connection thread Rp 3/4 (Rp thread to EN 10226) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Material | Nickel-plated brass |
| Ball seal | PTFE |
| Spindle seal | PTFE |
| Hand lever | Steel - PVC coated |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 170 °C |
| Thread | Rp 3/4 |
| DN | 20 |
| PN | 65 bar |
| Thread standard | Rp thread to EN 10226 |

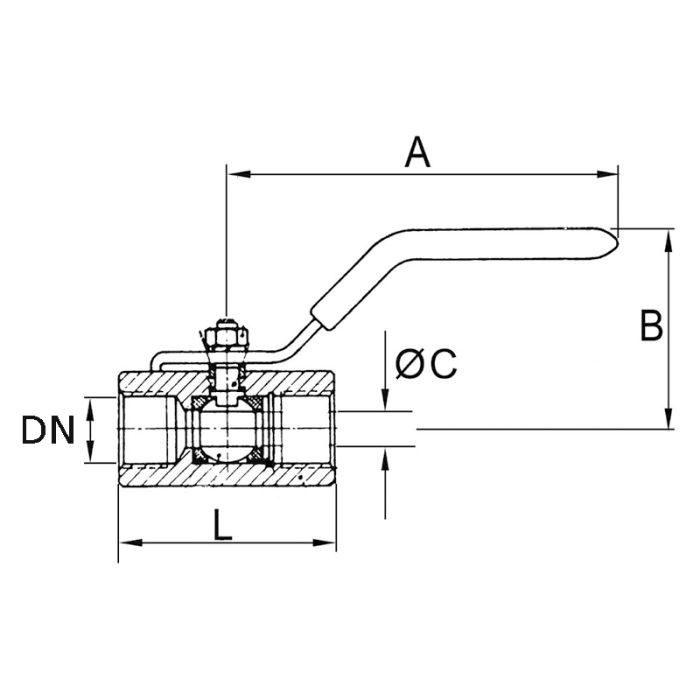

| A | 120 mm |
| B | 52.5 mm |
| L | 74.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Thread material | Nickel-plated brass |
| Class name | PLUS |
| Bore diameter padlock | approx. 7.4 mm |
