RIEGLER Ball valve, lockable, without venting hole, Rp 1
Type number: 320.06
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

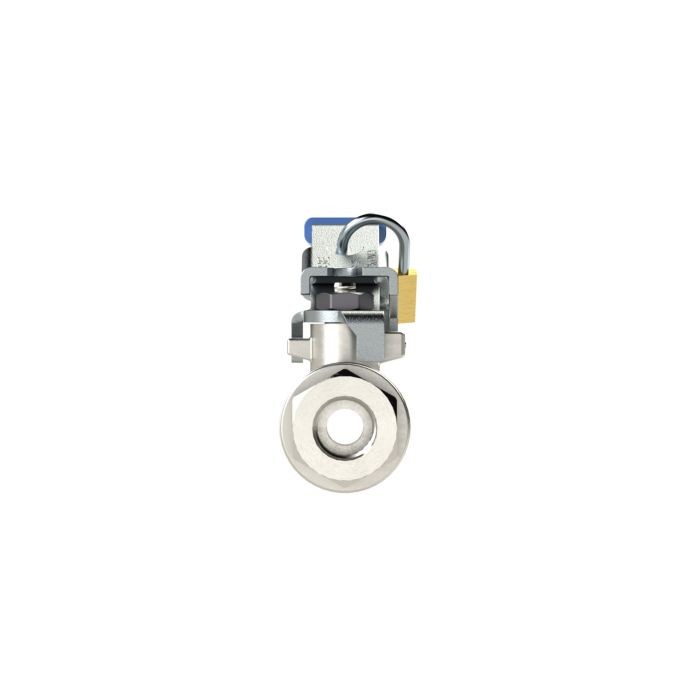

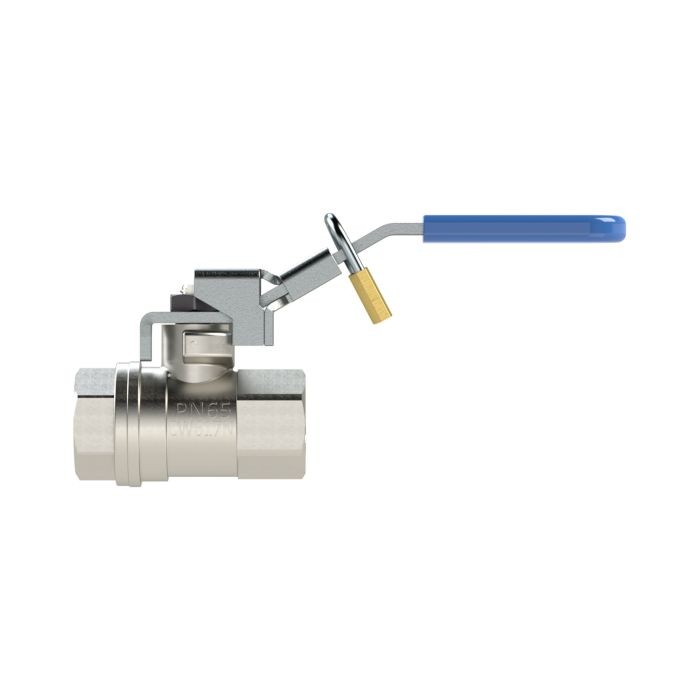

RIEGLER Safety ball valve lockable without vent. made of nickel-plated brass - Type 320.06
The RIEGLER safety ball valve lockable without venting, MS nickel-plated, Rp 1 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of nickel-plated brass. The operating temperature is between -40 °C and 170 °C. Connection thread Rp 1 (Rp thread to EN 10226) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Material | Nickel-plated brass |
| Ball seal | PTFE |
| Spindle seal | PTFE |
| Hand lever | Steel - PVC coated |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 170 °C |
| Thread | Rp 1 |
| DN | 25 |
| PN | 65 bar |
| Thread standard | Rp thread to EN 10226 |

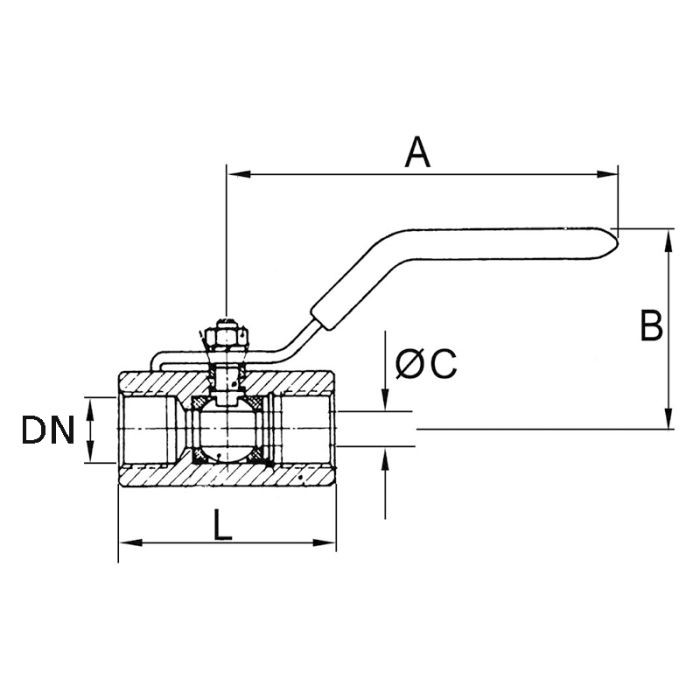

| A | 120 mm |
| B | 57 mm |
| L | 90.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Thread material | Nickel-plated brass |
| Class name | PLUS |
| Bore diameter padlock | approx. 7.4 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103147] RIEGLER Ball valve, lockable, without venting hole, Rp 1 1/2](/web/image/product.template/171116/image_128/%5B103147%5D%20RIEGLER%20Ball%20valve%2C%20lockable%2C%20without%20venting%20hole%2C%20Rp%201%201-2?unique=c2ca6fb)
|
Type number: 320.08 |
61.12 € | |
![[103146] RIEGLER Ball valve, lockable, without venting hole, Rp 1 1/4](/web/image/product.template/171115/image_128/%5B103146%5D%20RIEGLER%20Ball%20valve%2C%20lockable%2C%20without%20venting%20hole%2C%20Rp%201%201-4?unique=9035d02)
|
Type number: 320.07 |
44.68 € | |
![[103143] RIEGLER Ball valve, lockable, without venting hole, Rp 1/2](/web/image/product.template/171112/image_128/%5B103143%5D%20RIEGLER%20Ball%20valve%2C%20lockable%2C%20without%20venting%20hole%2C%20Rp%201-2?unique=1d16e42)
|
Type number: 320.04 |
14.47 € | |
![[103141] RIEGLER Ball valve, lockable, without venting hole, Rp 1/4](/web/image/product.template/171110/image_128/%5B103141%5D%20RIEGLER%20Ball%20valve%2C%20lockable%2C%20without%20venting%20hole%2C%20Rp%201-4?unique=4553fc4)
|
Type number: 320.02 |
12.61 € | |
![[103148] RIEGLER Ball valve, lockable, without venting hole, Rp 2](/web/image/product.template/171117/image_128/%5B103148%5D%20RIEGLER%20Ball%20valve%2C%20lockable%2C%20without%20venting%20hole%2C%20Rp%202?unique=fc4a437)
|
Type number: 320.09 |
88.58 € | |
![[103144] RIEGLER Ball valve, lockable, without venting hole, Rp 3/4](/web/image/product.template/171113/image_128/%5B103144%5D%20RIEGLER%20Ball%20valve%2C%20lockable%2C%20without%20venting%20hole%2C%20Rp%203-4?unique=155120c)
|
Type number: 320.05 |
22.38 € | |

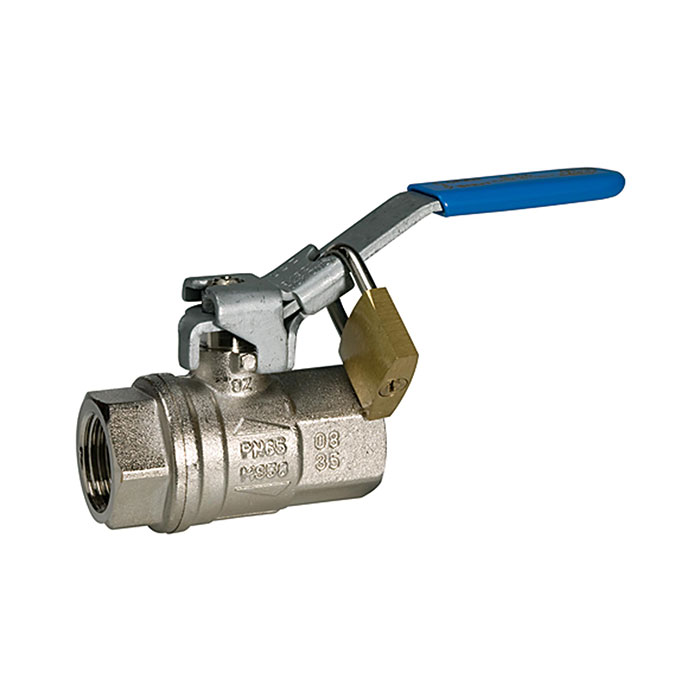

![[103142] RIEGLER Ball valve, lockable, without venting hole, Rp 3/8](/web/image/product.template/171111/image_128/%5B103142%5D%20RIEGLER%20Ball%20valve%2C%20lockable%2C%20without%20venting%20hole%2C%20Rp%203-8?unique=9eae426)
|
Type number: 320.03 |
12.61 € | |
