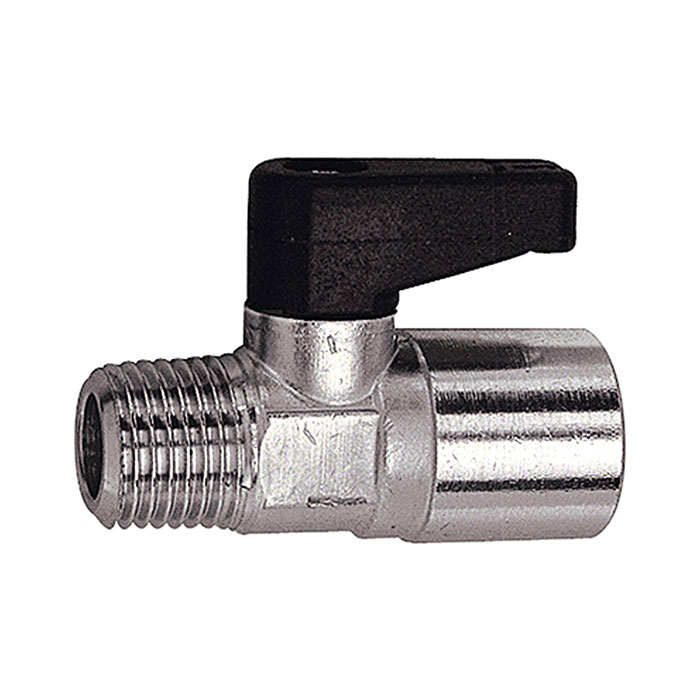

RIEGLER Mini ball valve, Rotating handle, R/Rp 1/4 ET / 1/8 IT
Type number: 371.04
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Mini ball valve with nickel-plated brass rotary handle, for industrial systems, max. 10 bar - Type 371.04
The RIEGLER mini ball valve with rotary handle, nickel-plated brass, R/Rp 1/4 AG / 1/8 IG opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of nickel-plated brass. Designed for a maximum operating pressure of 10 bar. The permissible medium temperature is between -10 °C and 80 °C. Connection thread R/Rp 1/4 AG / 1/8 IG - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Nickel-plated brass |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 80 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 80 °C |
| Ball | Nickel-plated brass |
| Ball seal | PTFE |
| Spindle seal | NBR |
| Rotary handle | Plastic |
| Thread | R/Rp 1/4 AG / 1/8 IG |
| DN | 45417 |

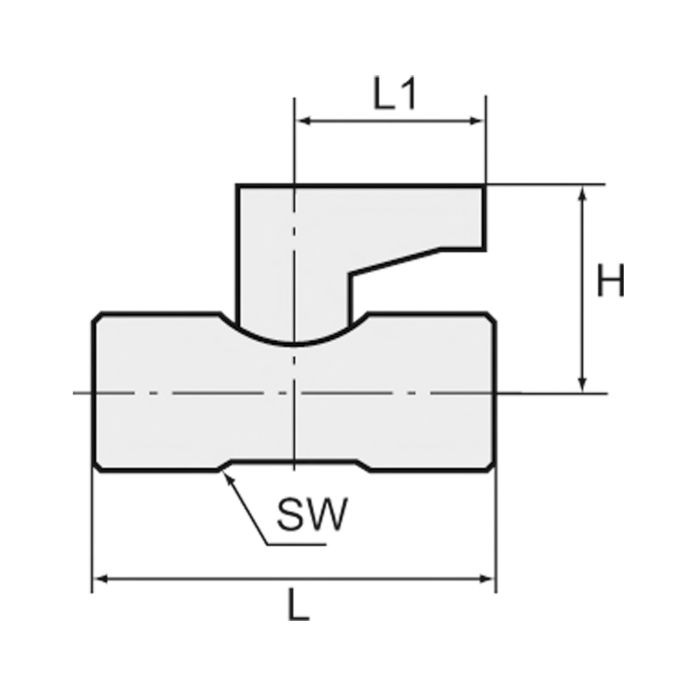

| SW | 14 mm |
| L | 38 mm |
| H | 21.5 mm |
| L1 | 19 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Thread material | Nickel-plated brass |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103350] RIEGLER Mini ball valve, Rotating handle, Rp 1/2 IT](/web/image/product.template/171317/image_128/%5B103350%5D%20RIEGLER%20Mini%20ball%20valve%2C%20Rotating%20handle%2C%20Rp%201-2%20IT?unique=2a20261)
|
Type number: 371.02-2 |
9.75 € | |
![[103348] RIEGLER Mini ball valve, Rotating handle, Rp 1/4 IT](/web/image/product.template/171315/image_128/%5B103348%5D%20RIEGLER%20Mini%20ball%20valve%2C%20Rotating%20handle%2C%20Rp%201-4%20IT?unique=388fd73)
|
Type number: 371.02 |
5.20 € | |

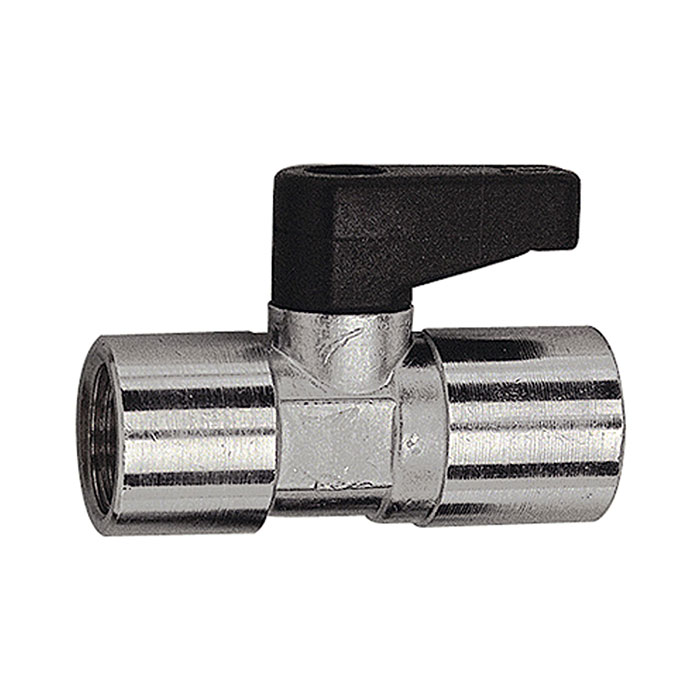

![[103347] RIEGLER Mini ball valve, Rotating handle, Rp 1/8 IT](/web/image/product.template/171314/image_128/%5B103347%5D%20RIEGLER%20Mini%20ball%20valve%2C%20Rotating%20handle%2C%20Rp%201-8%20IT?unique=e84da30)
|
