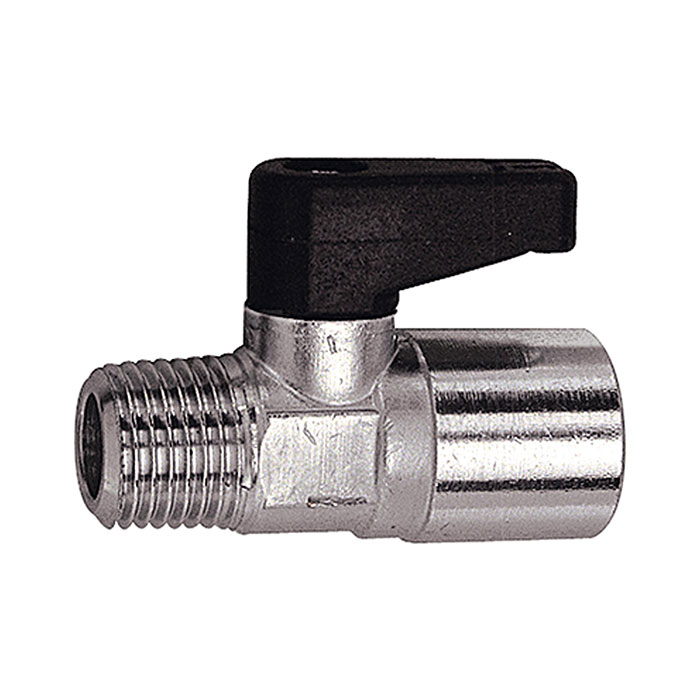

RIEGLER Mini ball valve, Rotating handle, R/Rp 1/4 ET/IT
Type number: 371.05
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Mini ball valve with rotary handle, MS nickel-plated, medium/ambient temp. -10 °C to 80 °C, R/Rp 1/4 OD/IG, DN 5.5, SW 14, PN max. 10 bar
| Housing | Nickel-plated brass |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 80 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 80 °C |
| Ball | Nickel-plated brass |
| Ball seal | PTFE |
| Spindle seal | NBR |
| Rotary handle | Plastic |
| Thread | R/Rp 1/4 AG / 1/4 IG |
| DN | 45417 |

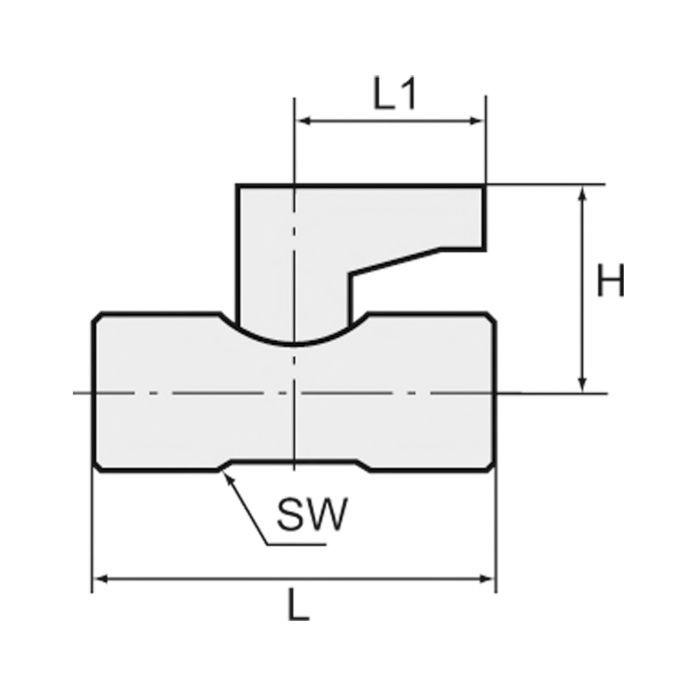

| SW | 14 mm |
| L | 40.5 mm |
| H | 21.5 mm |
| L1 | 19 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Thread material | Nickel-plated brass |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103350] RIEGLER Mini ball valve, Rotating handle, Rp 1/2 IT](/web/image/product.template/171317/image_128/%5B103350%5D%20RIEGLER%20Mini%20ball%20valve%2C%20Rotating%20handle%2C%20Rp%201-2%20IT?unique=7c6e16d)
|
Type number: 371.02-2 |
9.75 € | |

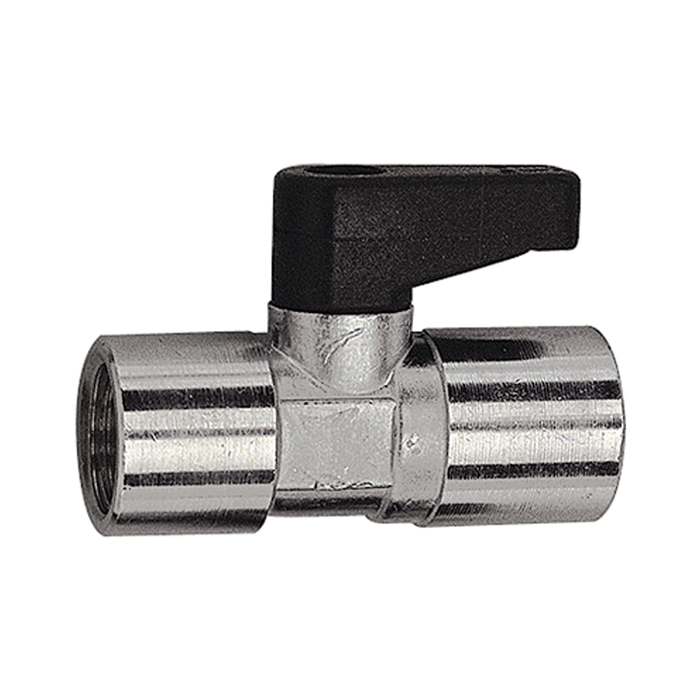

![[103348] RIEGLER Mini ball valve, Rotating handle, Rp 1/4 IT](/web/image/product.template/171315/image_128/%5B103348%5D%20RIEGLER%20Mini%20ball%20valve%2C%20Rotating%20handle%2C%20Rp%201-4%20IT?unique=cbf294a)
|
