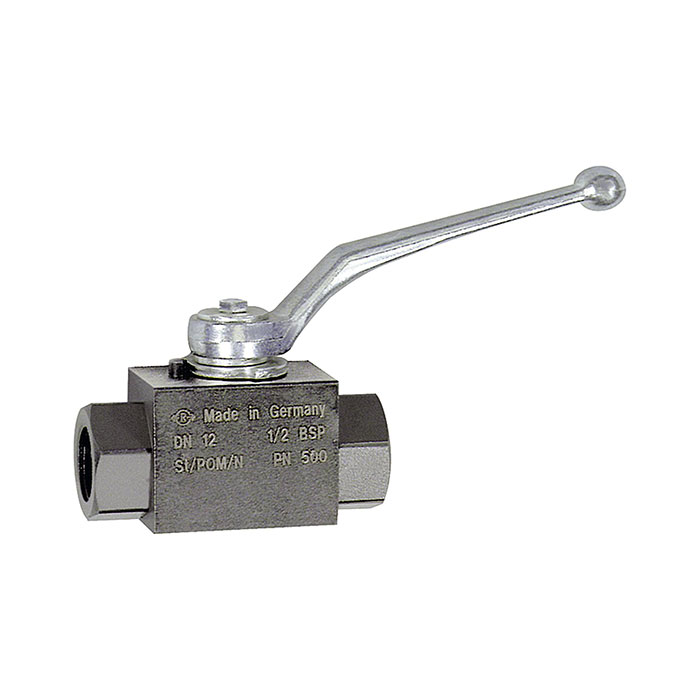

RIEGLER Ball valve, High pressure design, G interior thread, Steel, G 3/8
Type number: 392.23
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Steel ball valve, for industrial systems, max. 500 bar - Type 392.23
The RIEGLER ball valve, high-pressure version, female G-thread, steel, G 3/8 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of steel. Designed for a maximum operating pressure of 500 bar. The operating temperature is between -10 °C and 100 °C. G 3/8 connection thread - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Steel |
| Max. operating pressure | 500 bar |
| Ball | Hard chrome-plated steel |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 100 °C |
| Shift shaft | Steel |
| Switching ball seal | POM |
| Shift shaft seal | NBR |
| Thread | G 3/8 |
| DN | 10 |
| A | 100 mm |
| B | 68 mm |
| L | 73 mm |
| Class name | FLEX |
