RIEGLER Ball valve, High pressure design, G interior thread, Steel, G 1/2
Type number: 392.24
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Steel ball valve, for industrial systems, max. 500 bar - Type 392.24
The RIEGLER ball valve, high-pressure version, female G thread, steel, G 1/2 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of steel. Designed for a maximum operating pressure of 500 bar. The operating temperature is between -10 °C and 100 °C. G 1/2 connection thread - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Steel |
| Max. operating pressure | 500 bar |
| Ball | Hard chrome-plated steel |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 100 °C |
| Shift shaft | Steel |
| Switching ball seal | POM |
| Shift shaft seal | NBR |
| Thread | G 1/2 |
| DN | 12 |
| A | 112 mm |
| B | 92 mm |
| L | 82 mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103520] RIEGLER Ball valve, High pressure design, G interior thread, Steel, G 1](/web/image/product.template/171482/image_128/%5B103520%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20G%20interior%20thread%2C%20Steel%2C%20G%201?unique=7b76123)
|
Type number: 392.27 |
66.53 € | |

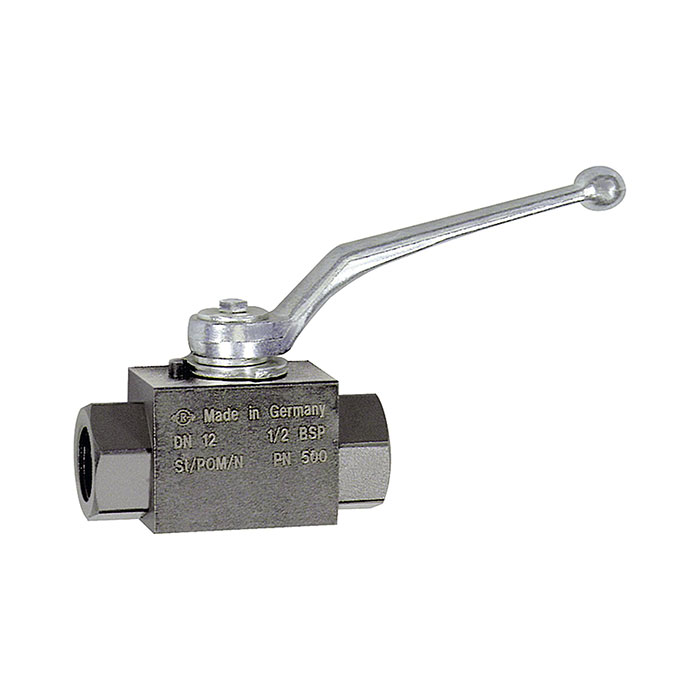

![[103515] RIEGLER Ball valve, High pressure design, G interior thread, Steel, G 1/4](/web/image/product.template/171477/image_128/%5B103515%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20G%20interior%20thread%2C%20Steel%2C%20G%201-4?unique=fe82dbd)
|
Type number: 392.22 |
23.31 € | |
![[103514] RIEGLER Ball valve, High pressure design, G interior thread, Steel, G 1/8](/web/image/product.template/171476/image_128/%5B103514%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20G%20interior%20thread%2C%20Steel%2C%20G%201-8?unique=2f282fb)
|
Type number: 392.21 |
28.61 € | |
![[103519] RIEGLER Ball valve, High pressure design, G interior thread, Steel, G 3/4](/web/image/product.template/171481/image_128/%5B103519%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20G%20interior%20thread%2C%20Steel%2C%20G%203-4?unique=a9ce3c5)
|
Type number: 392.26 |
52.16 € | |
![[103516] RIEGLER Ball valve, High pressure design, G interior thread, Steel, G 3/8](/web/image/product.template/171478/image_128/%5B103516%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20G%20interior%20thread%2C%20Steel%2C%20G%203-8?unique=212d612)
|
Type number: 392.23 |
27.27 € | |
![[103518] RIEGLER Ball valve, High pressure design, G interior thread, Steel, G 5/8](/web/image/product.template/171480/image_128/%5B103518%5D%20RIEGLER%20Ball%20valve%2C%20High%20pressure%20design%2C%20G%20interior%20thread%2C%20Steel%2C%20G%205-8?unique=262650b)
|
Type number: 392.25 |
116.25 € | |
