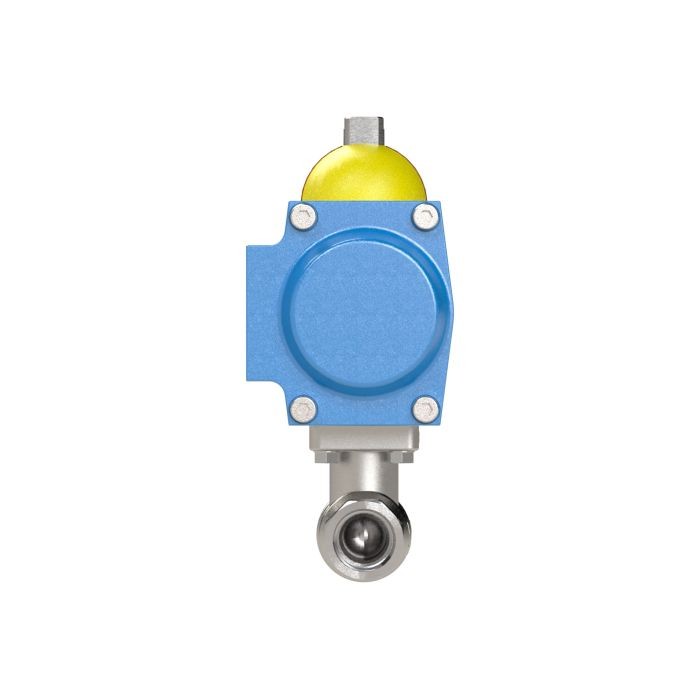

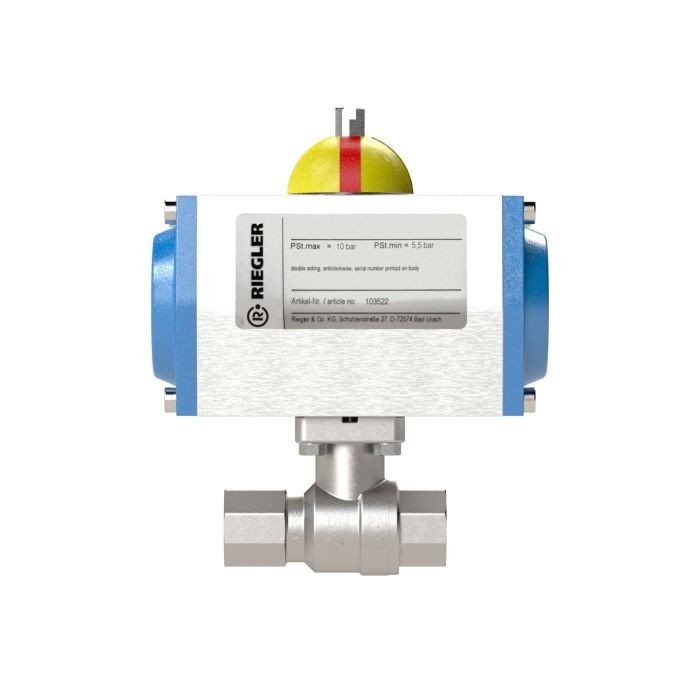

RIEGLER Brass ball valve, Pneum. actuation drive spring opening, Rp 1 1/2
Type number: 350.414
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Brass ball valve for industrial systems, Rp 1 1/2 - Type 350.414
The RIEGLER brass ball valve, pneumat. Actuator spring-opening, Rp 1 1/2 opens or shuts off the media flow with a quarter turn - full flow with minimum pressure loss. The operating temperature is between -20 °C and 70 °C. Rp 1 1/2 connection thread - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Actuator control pressure max. | 10 bar |
| Control pressure recommended | 5.5 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 70 °C |
| Rotation angle | 90 ° |
| Valve adapter | available as standard |
| Drive material | Anodized aluminum |
| Drive sealing material | NBR |
| Material ball valve | Nickel-plated brass, with ISO flange plate |
| Sealing material ball valve | PTFE / FKM |
| Thread | Rp 1 1/2 |
| DN | 40 |
| SW | 55 mm |
| PN | 25 bar |

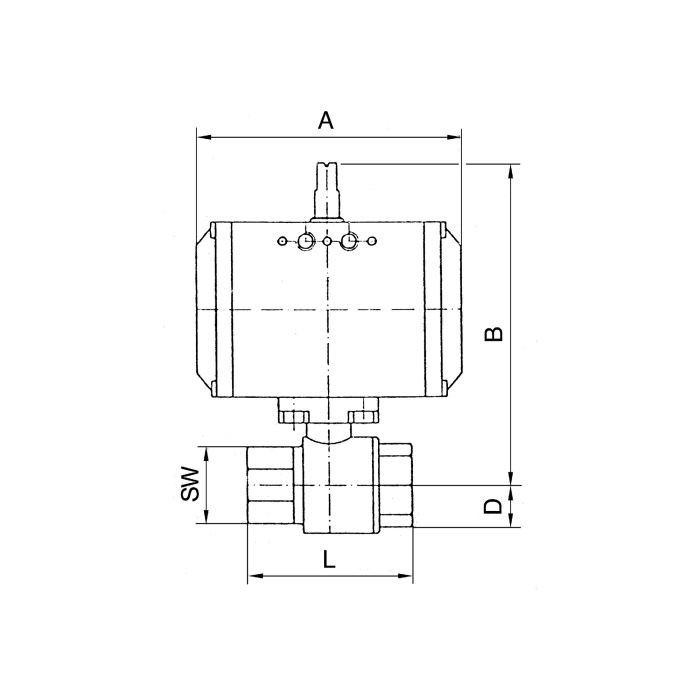

| A | 137 mm |
| B | 180 mm |
| D | 36 mm |
| L | 120 mm |
| Execution | single-acting - spring-opening |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103544] RIEGLER Brass ball valve, Pneum. actuation drive spring opening, Rp 1 1/4](/web/image/product.template/171506/image_128/%5B103544%5D%20RIEGLER%20Brass%20ball%20valve%2C%20Pneum.%20actuation%20drive%20spring%20opening%2C%20Rp%201%201-4?unique=4cbe5d2)
|
Type number: 350.413 |
325.14 € | |
![[103547] RIEGLER Brass ball valve, Pneum. actuation drive spring opening, Rp 2 1/2](/web/image/product.template/171509/image_128/%5B103547%5D%20RIEGLER%20Brass%20ball%20valve%2C%20Pneum.%20actuation%20drive%20spring%20opening%2C%20Rp%202%201-2?unique=c73249a)
|
Type number: 350.416 |
611.48 € | |

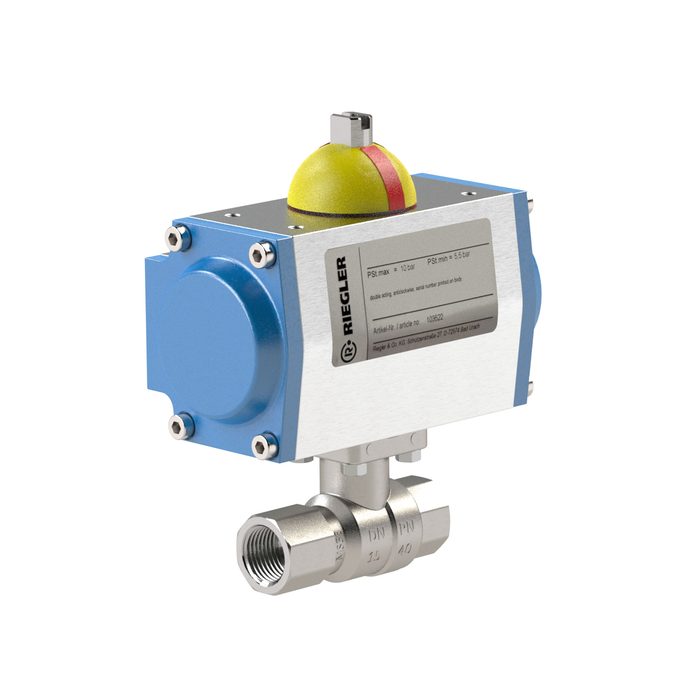

![[103543] RIEGLER Brass ball valve, Pneumat. actuation drive spring opening, Rp 1](/web/image/product.template/171505/image_128/%5B103543%5D%20RIEGLER%20Brass%20ball%20valve%2C%20Pneumat.%20actuation%20drive%20spring%20opening%2C%20Rp%201?unique=eb219b4)
|
Type number: 350.412 |
287.65 € | |
![[103540] RIEGLER Brass ball valve, Pneumat. actuation drive spring opening, Rp 1/2](/web/image/product.template/171502/image_128/%5B103540%5D%20RIEGLER%20Brass%20ball%20valve%2C%20Pneumat.%20actuation%20drive%20spring%20opening%2C%20Rp%201-2?unique=60d5f87)
|
Type number: 350.410 |
292.32 € | |
![[103541] RIEGLER Brass ball valve, Pneumat. actuation drive spring opening, Rp 1/2](/web/image/product.template/171503/image_128/%5B103541%5D%20RIEGLER%20Brass%20ball%20valve%2C%20Pneumat.%20actuation%20drive%20spring%20opening%2C%20Rp%201-2?unique=d2369b3)
|
Type number: 350.410/1 |
237.35 € | |
![[103546] RIEGLER Brass ball valve, Pneumat. actuation drive spring opening, Rp 2](/web/image/product.template/171508/image_128/%5B103546%5D%20RIEGLER%20Brass%20ball%20valve%2C%20Pneumat.%20actuation%20drive%20spring%20opening%2C%20Rp%202?unique=ae87eec)
|
Type number: 350.415 |
436.27 € | |
![[103548] RIEGLER Brass ball valve, Pneumat. actuation drive spring opening, Rp 3](/web/image/product.template/171510/image_128/%5B103548%5D%20RIEGLER%20Brass%20ball%20valve%2C%20Pneumat.%20actuation%20drive%20spring%20opening%2C%20Rp%203?unique=ec7a6b8)
|
Type number: 350.417 |
814.38 € | |

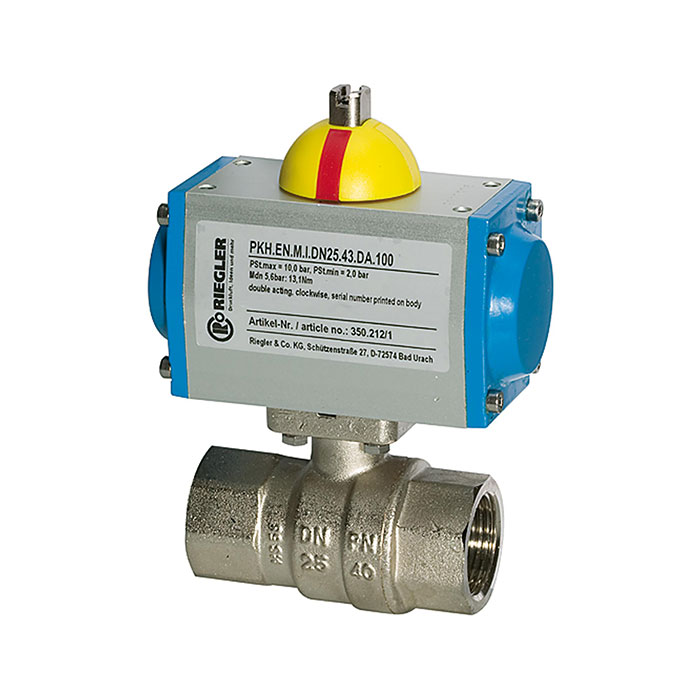

![[103542] RIEGLER Brass ball valve, Pneumat. actuation drive spring opening, Rp 3/4](/web/image/product.template/171504/image_128/%5B103542%5D%20RIEGLER%20Brass%20ball%20valve%2C%20Pneumat.%20actuation%20drive%20spring%20opening%2C%20Rp%203-4?unique=ec89655)
|
