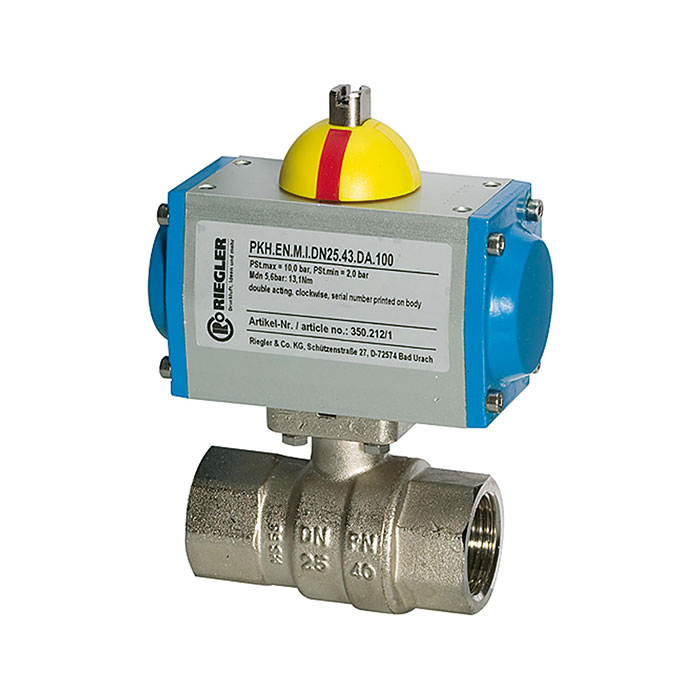

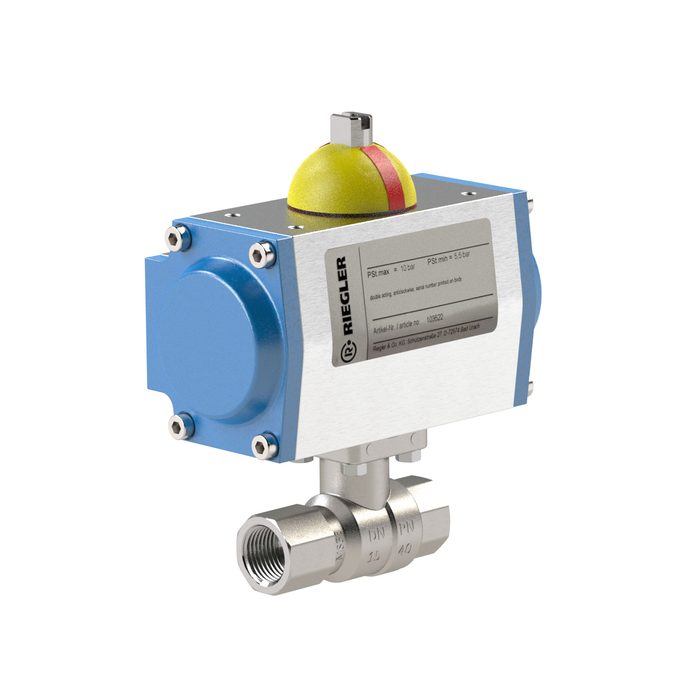

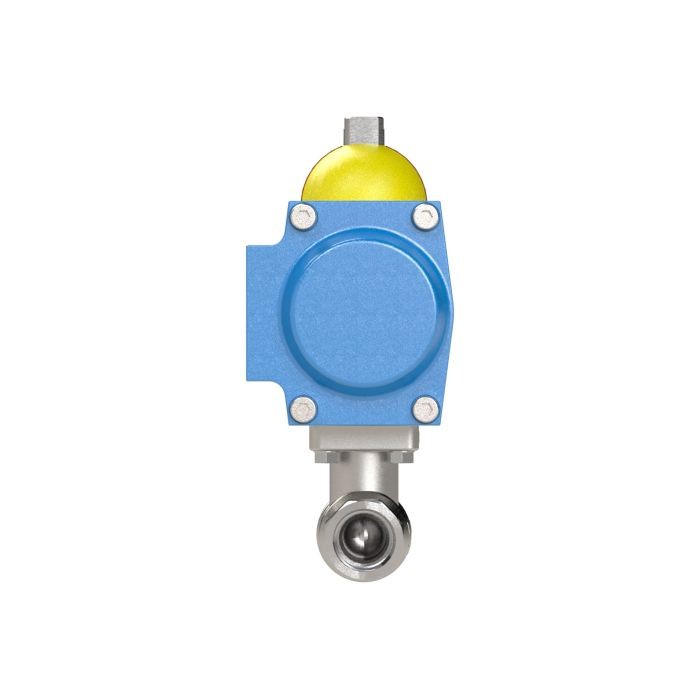

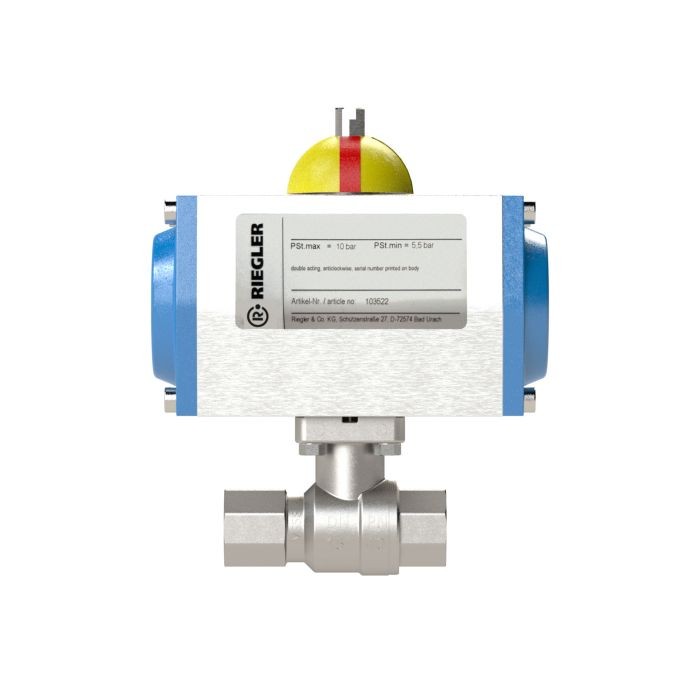

RIEGLER Brass ball valve, Pneum. actuation drive spring opening, Rp 2 1/2
Type number: 350.416
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
2-way brass ball valve, pneumat. Actuator spring-opening, MS nickel-plated, operating temp. max. 70 °C, Rp 2 1/2, DN 65, PN max. 25 bar
| Actuator control pressure max. | 10 bar |
| Control pressure recommended | 5.5 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 70 °C |
| Rotation angle | 90 ° |
| Valve adapter | available as standard |
| Drive material | Anodized aluminum |
| Drive sealing material | NBR |
| Material ball valve | Nickel-plated brass, with ISO flange plate |
| Sealing material ball valve | PTFE / FKM |
| Thread | Rp 2 1/2 |
| DN | 65 |

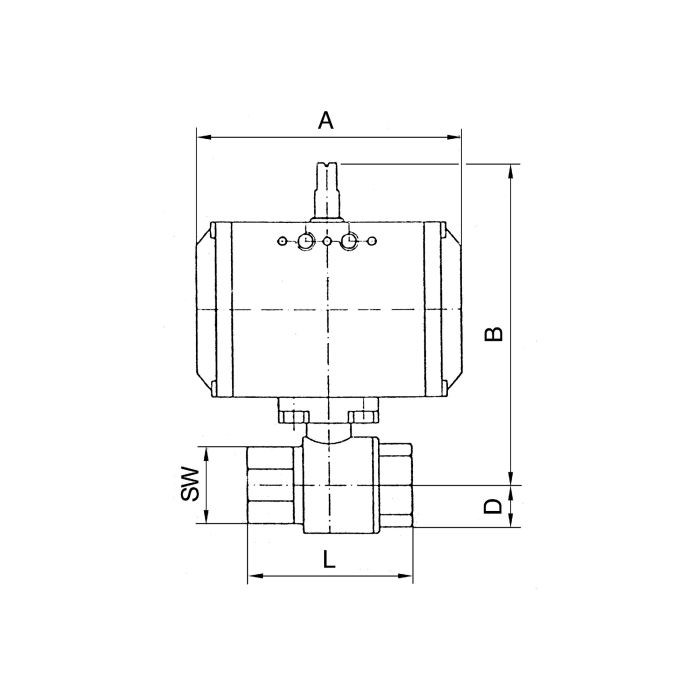

| SW | 83 mm |
| PN | 25 bar |
| A | 209 mm |
| B | 230 mm |
| D | 57 mm |
| L | 155 mm |
| Execution | single-acting - spring-opening |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | MAX |
