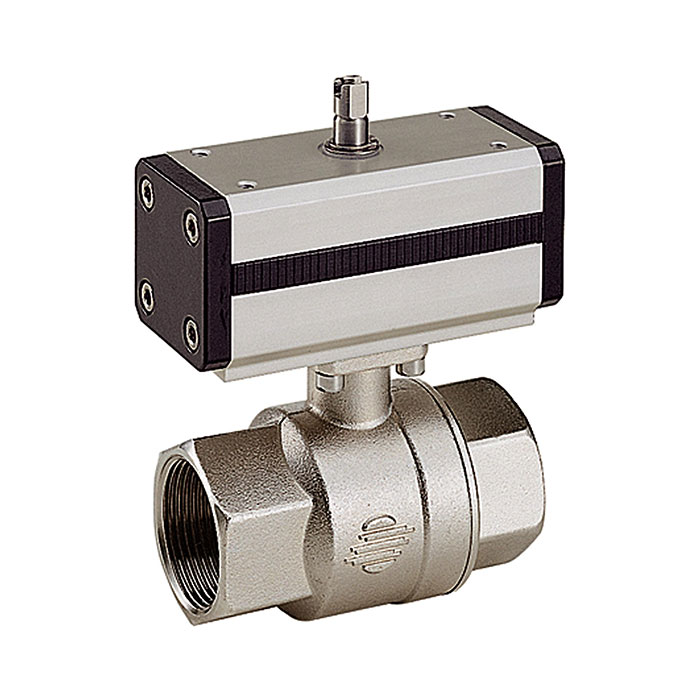

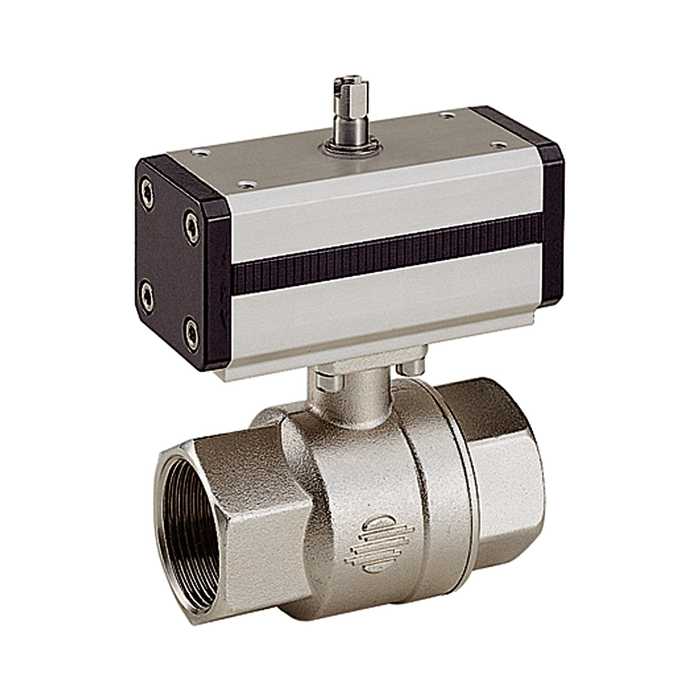

RIEGLER Brass ball valve, Pneumat. actuation drive, double-acting, Rp 1
Type number: 351.212
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Brass ball valve for industrial systems, max. 16 bar, Rp 1 - Type 351.212
The RIEGLER brass ball valve, pneumat. Actuator, double-acting, Rp 1 opens or shuts off the media flow with a quarter turn - full passage with minimum pressure loss. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 80 °C. Rp 1 connection thread - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Max. operating pressure | 16 bar |
| Control pressure max. | 5.6 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Rotation angle | 90 ° |
| Valve adapter | available as standard |
| Drive material | Anodized aluminum |
| Drive sealing material | NBR |
| Material ball valve | Nickel-plated brass, with ISO flange plate |
| Sealing material ball valve | PTFE / FKM |
| Thread | Rp 1 |
| DN | 25 |

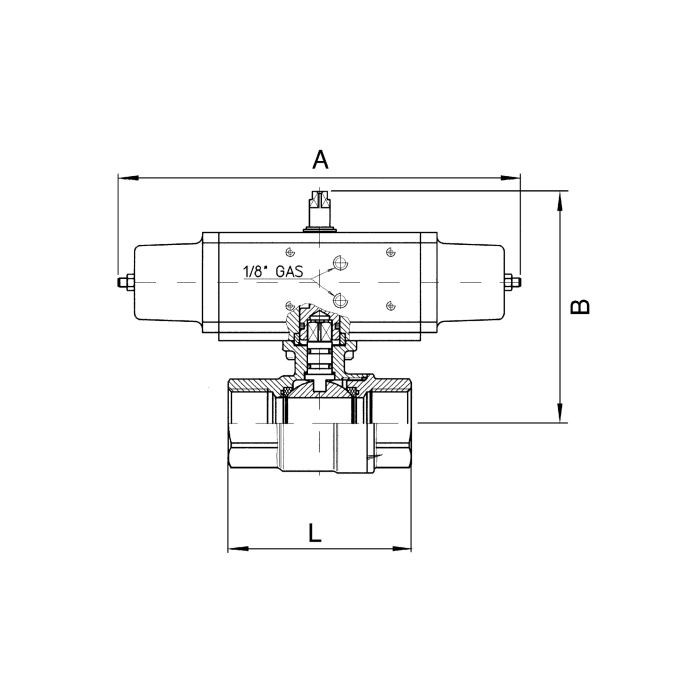

| A | 70 mm |
| B | 98 mm |
| L | 89 mm |
| Execution | double-acting |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
