RIEGLER 3/2-way valve, NAMUR, monostable, NC, G 1/4, 230 V, 50Hz
Type number: 551.11
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
3/2-way valve, NAMUR, NC, Anodised aluminium, Temp. max. 70 °C, Working pressure 1.5 - 10 bar, Connection G 1/4, 230 V, 50Hz
| Medium | Air, neutral gases (filtered) |
| Housing | Anodized aluminum |
| Sealing material | NBR |
| Electrical connection | Device plug PG 9 |
| Working pressure min. | 1.5 bar |
| Working pressure max. | 10 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 70 °C |
| Slider | Stainless steel |
| Manual override | resting |
| Flow rate | 1250 l/min |
| DN | 7 |
| Scope of delivery | Device plug PG 9, 1 coding pin, 2 O-rings, 2 screws |
| Tension | 230 V, 50 Hz |
| Connection | G 1/4 |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

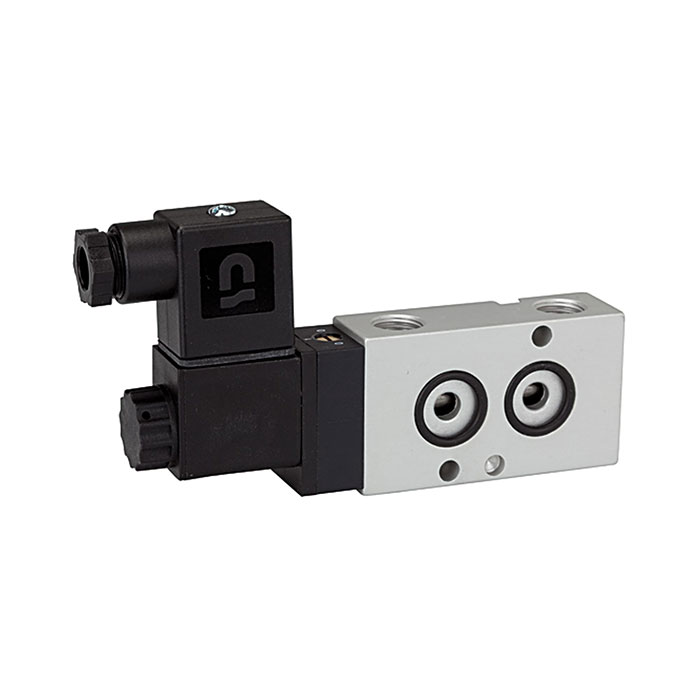

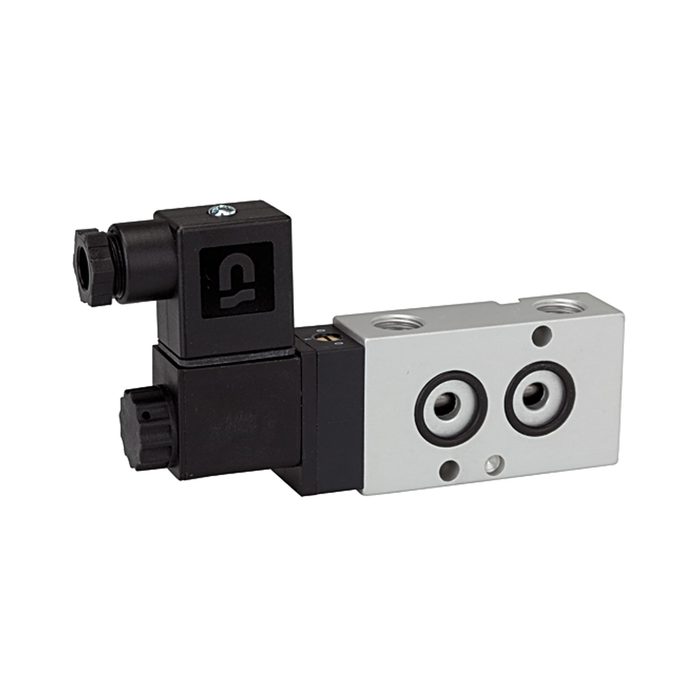

![[103658] RIEGLER 3/2-way valve, NAMUR, monostable, NC, G 1/4, 24 V DC](/web/image/product.template/171620/image_128/%5B103658%5D%20RIEGLER%203-2-way%20valve%2C%20NAMUR%2C%20monostable%2C%20NC%2C%20G%201-4%2C%2024%20V%20DC?unique=2778c6a)
|
Type number: 551.12 |
46.21 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[103663] RIEGLER Throttle plate for NAMUR valves, 3-way, Knurled screw](/web/image/product.template/171625/image_128/%5B103663%5D%20RIEGLER%20Throttle%20plate%20for%20NAMUR%20valves%2C%203-way%2C%20Knurled%20screw?unique=c3dee72)
|
Type number: 551.41 |
102.55 € | |
