RIEGLER Blocking valve, Brass, ET, G 1/4, DN 5.5
Type number: 213.11
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Shut-off valve, brass, male, inner cone for ball spout, operating temp. -10 °C to 80 °C, G 1/4, DN 5.5, SW 17, PN max. 40 bar
| Max. operating pressure | 40 bar |
| Material | Brass |
| Handwheel | Plastic |
| Spindle | with stainless steel ball |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 80 °C |
| Thread | G 1/4 |
| DN | 45417 |
| SW | 17 mm |
| A | 48 mm |
| B | 50 mm |
| L | 42 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

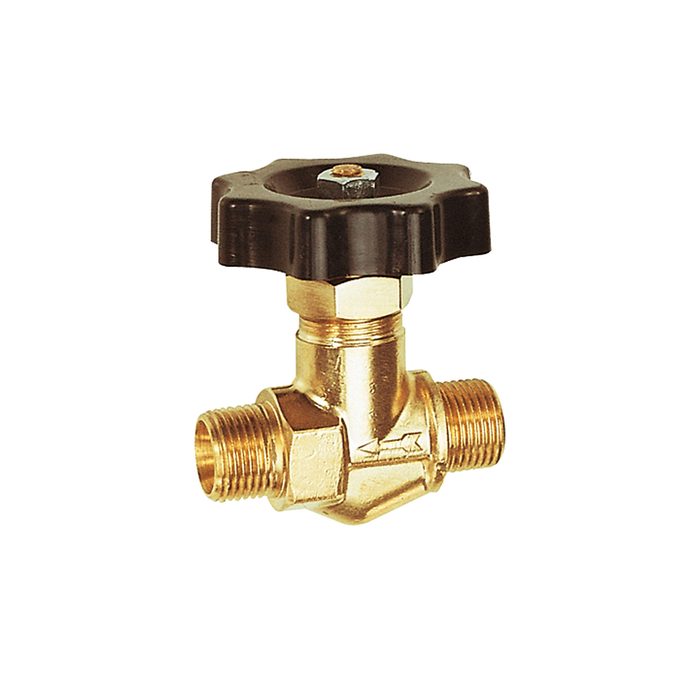

![[103720] RIEGLER Blocking valve, Brass, ET, G 1/2, DN 11](/web/image/product.template/171681/image_128/%5B103720%5D%20RIEGLER%20Blocking%20valve%2C%20Brass%2C%20ET%2C%20G%201-2%2C%20DN%2011?unique=c647a62)
|
Type number: 213.33 |
18.97 € | |
![[103719] RIEGLER Blocking valve, Brass, ET, G 3/8, DN 8](/web/image/product.template/171680/image_128/%5B103719%5D%20RIEGLER%20Blocking%20valve%2C%20Brass%2C%20ET%2C%20G%203-8%2C%20DN%208?unique=3d0aefd)
|
Type number: 213.22 |
13.28 € | |
