RIEGLER Blocking valve, Brass, ET, G 3/8, DN 8
Type number: 213.22
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Brass shut-off valve, for industrial systems, max. 40 bar - Type 213.22
The RIEGLER shut-off valve, brass, male, G 3/8, DN 8 regulates or shuts off the flow of media in industrial pipelines. The housing is made of brass. Designed for a maximum operating pressure of 40 bar. The operating temperature is between -10 °C and 80 °C. Connection thread G 3/8 - suitable for common industrial standards. Reliable media control.
Field of application
Typical areas of application: Compressed air, gases and liquids.
| Max. operating pressure | 40 bar |
| Material | Brass |
| Handwheel | Plastic |
| Spindle | with stainless steel ball |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 80 °C |
| Thread | G 3/8 |
| DN | 8 |
| SW | 22 mm |
| A | 48 mm |
| B | 55 mm |
| L | 52 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

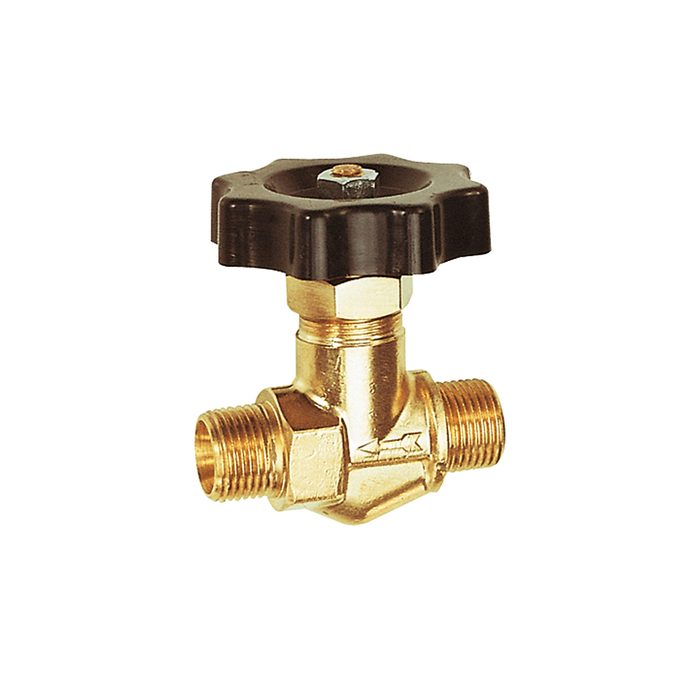

![[103720] RIEGLER Blocking valve, Brass, ET, G 1/2, DN 11](/web/image/product.template/171681/image_128/%5B103720%5D%20RIEGLER%20Blocking%20valve%2C%20Brass%2C%20ET%2C%20G%201-2%2C%20DN%2011?unique=c97d6b1)
|
Type number: 213.33 |
18.66 € | |
![[103718] RIEGLER Blocking valve, Brass, ET, G 1/4, DN 5.5](/web/image/product.template/171679/image_128/%5B103718%5D%20RIEGLER%20Blocking%20valve%2C%20Brass%2C%20ET%2C%20G%201-4%2C%20DN%205.5?unique=20b3cc2)
|
Type number: 213.11 |
13.28 € | |
