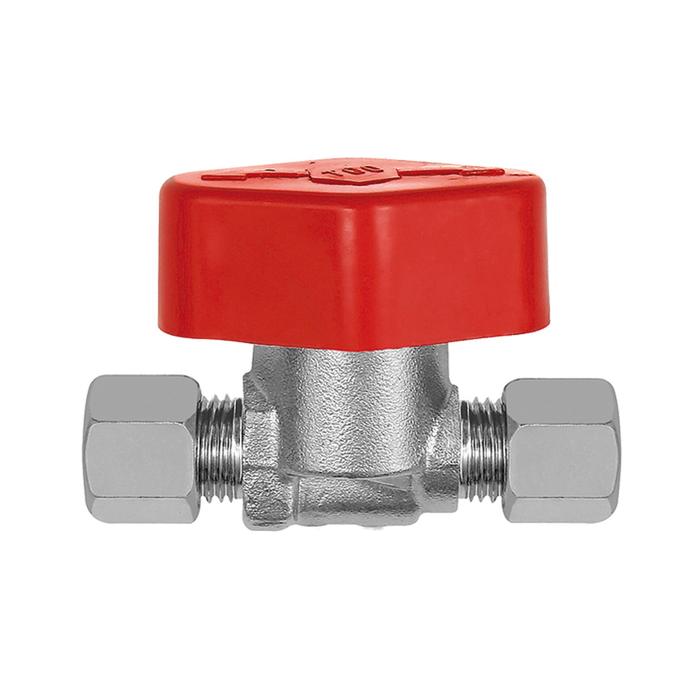

RIEGLER Quick connect blocking valve brass chr. plated,8 mm pipe connec.
Type number: 230.25 V
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Quick-closing shut-off valve, brass, chromed, DIN 4817 DVGW, 8 mm pipe connection, DN 6, max. 4 bar liquid gas/max. 16 bar non-aggressive media
| Housing | Brass Ms58 chrome-plated |
| Flow rate | No information available, depending on operating pressure and medium |
| Handwheel | Plastic |
| Spindle | Brass Ms58 |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 60 °C |
| Operating pressure | max. 4 bar / 16 bar (depending on medium) |
| DVGW approval | DIN 4817-1:1981-04 |
| DN | 6 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | 8 mm pipe connection |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| O-ring | NBR quality (Perbunan-n), resistant to heating oil |
| Class name | FLEX |
