RIEGLER Needle valve, Brass, with fine control, G 3/8 IT, DN 4
Type number: 210.81
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Needle valve, brass, with fine adjustment, operating temperature -30 °C to 110 °C, G 3/8 IG, DN 4, SW 22, PN max. 40 bar
| Sealing material | NBR |
| Max. operating pressure | 40 bar |
| Material | Brass |
| Handwheel | Plastic |
| Spindle | with fine adjustment |
| Operating temperature min. | -30 °C |
| Operating temperature max. | 110 °C |
| Thread | G 3/8 IG |
| DN | 4 |
| SW | 22 mm |

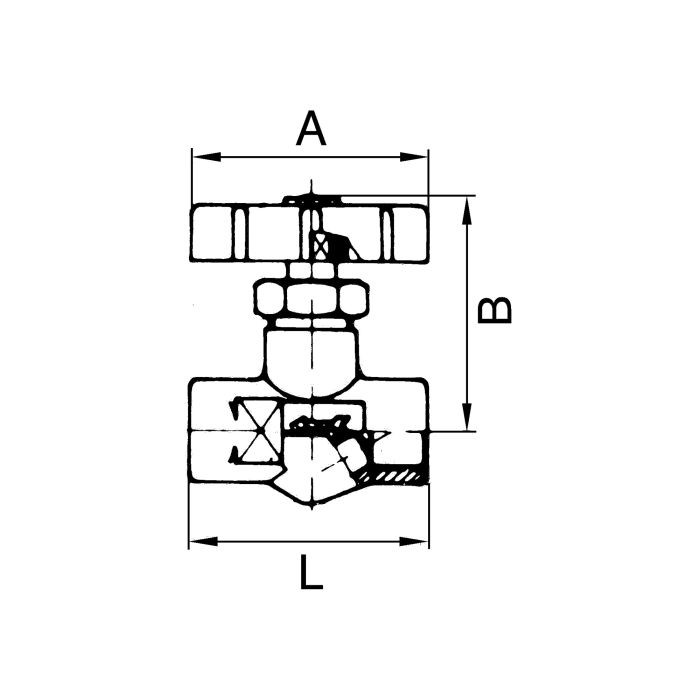

| A | 48 mm |
| B | 52 mm |
| L | 51 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103767] RIEGLER Needle valve, Brass, with fine control, G 1/2 IT, DN 4](/web/image/product.template/171728/image_128/%5B103767%5D%20RIEGLER%20Needle%20valve%2C%20Brass%2C%20with%20fine%20control%2C%20G%201-2%20IT%2C%20DN%204?unique=8e02826)
|
Type number: 210.82 |
20.53 € | |

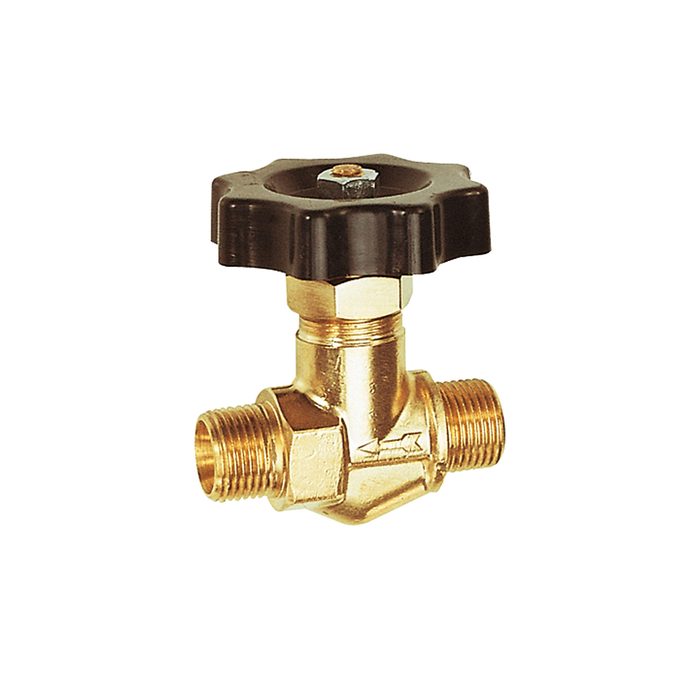

![[103763] RIEGLER Needle valve, Brass, with fine control, G 1/4 ET, DN 4](/web/image/product.template/171724/image_128/%5B103763%5D%20RIEGLER%20Needle%20valve%2C%20Brass%2C%20with%20fine%20control%2C%20G%201-4%20ET%2C%20DN%204?unique=18aeefd)
|
Type number: 213.40 |
14.66 € | |

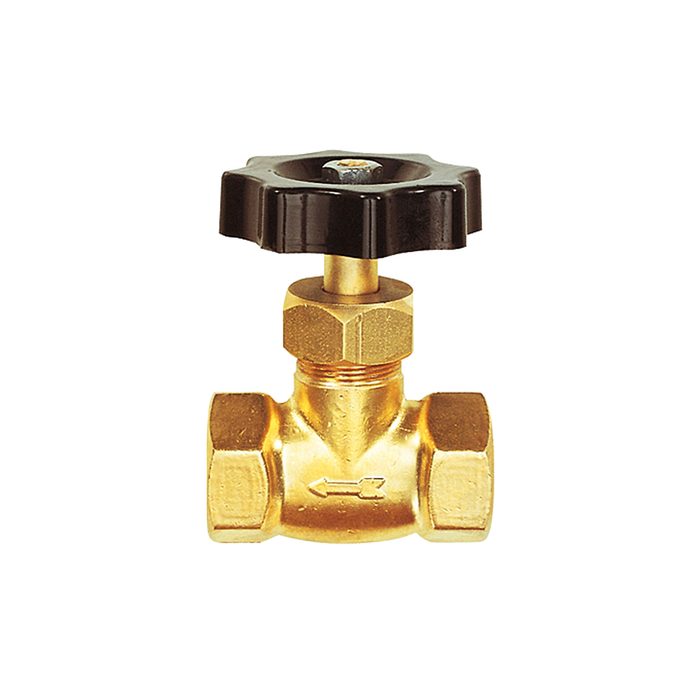

![[103765] RIEGLER Needle valve, Brass, with fine control, G 1/4 IT, DN 4](/web/image/product.template/171726/image_128/%5B103765%5D%20RIEGLER%20Needle%20valve%2C%20Brass%2C%20with%20fine%20control%2C%20G%201-4%20IT%2C%20DN%204?unique=619862f)
|
Type number: 210.80 |
14.66 € | |
![[103764] RIEGLER Needle valve, Brass, with fine control, G 3/8 ET, DN 4](/web/image/product.template/171725/image_128/%5B103764%5D%20RIEGLER%20Needle%20valve%2C%20Brass%2C%20with%20fine%20control%2C%20G%203-8%20ET%2C%20DN%204?unique=01d9872)
|
Type number: 213.41 |
19.37 € | |
